System Requirements PC Requirements Any PC System or Motherboard with an industry standard PCIe x16 • physical slot Microsoft Windows • VMware vSphere/ESXi • Red Hat Enterprise Linux • SuSE Linux • Ubuntu Linux • Citrix XenServer • CentOS Linux •...
Page 4

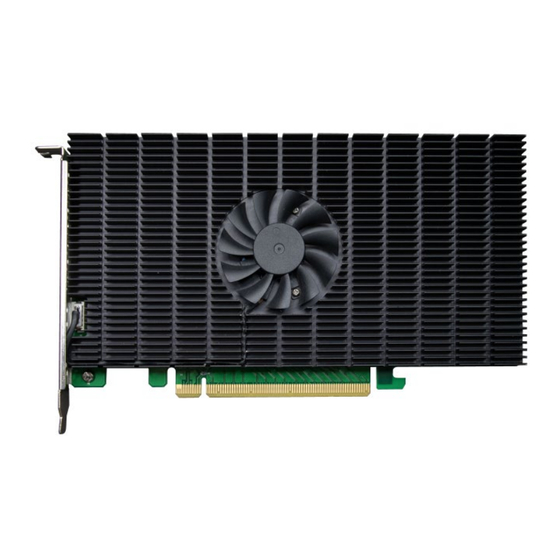

R1504 Hardware Installation: Step 1. On the rear of the R1504, remove the six screws that secure the unit’s heat sink to the PCB. Step 2. After removing the screws, carefully remove the heat sink from the R1504. Step 3. After removing the casing, carefully turn it over to view the thermal pad.
Page 5
Step 4. These 4 screws are used to install the NVMe SSDs. The R1504 can support any M.2 form factor (2242, 2260, 2280, and 22110). Step 5. Please remove the screws on the right side of R1504. Step 6. Gently insert the NVMe SSD into the slot. Note: If the NVMe SSDs were used previously, make sure the connectors are clean and free of dust prior to installation.
Page 6
The following example shows four PCIe Gen4 NVMe SSD installed into Port 1, 2, 3 & 4. Port1 Port2 Port3 Port4 Step 8. Reattach the heat sink after installing all of the NVMe SSDs. Step 9. On the rear of the R1504, refasten the 6 screws that were removed in step 1.
Customer Support If you encounter any problems while utilizing the R1504 drive, or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: https://www.highpoint-tech.com/support-and-services HighPoint Technologies, Inc. websites: https://www.highpoint-tech.com...
