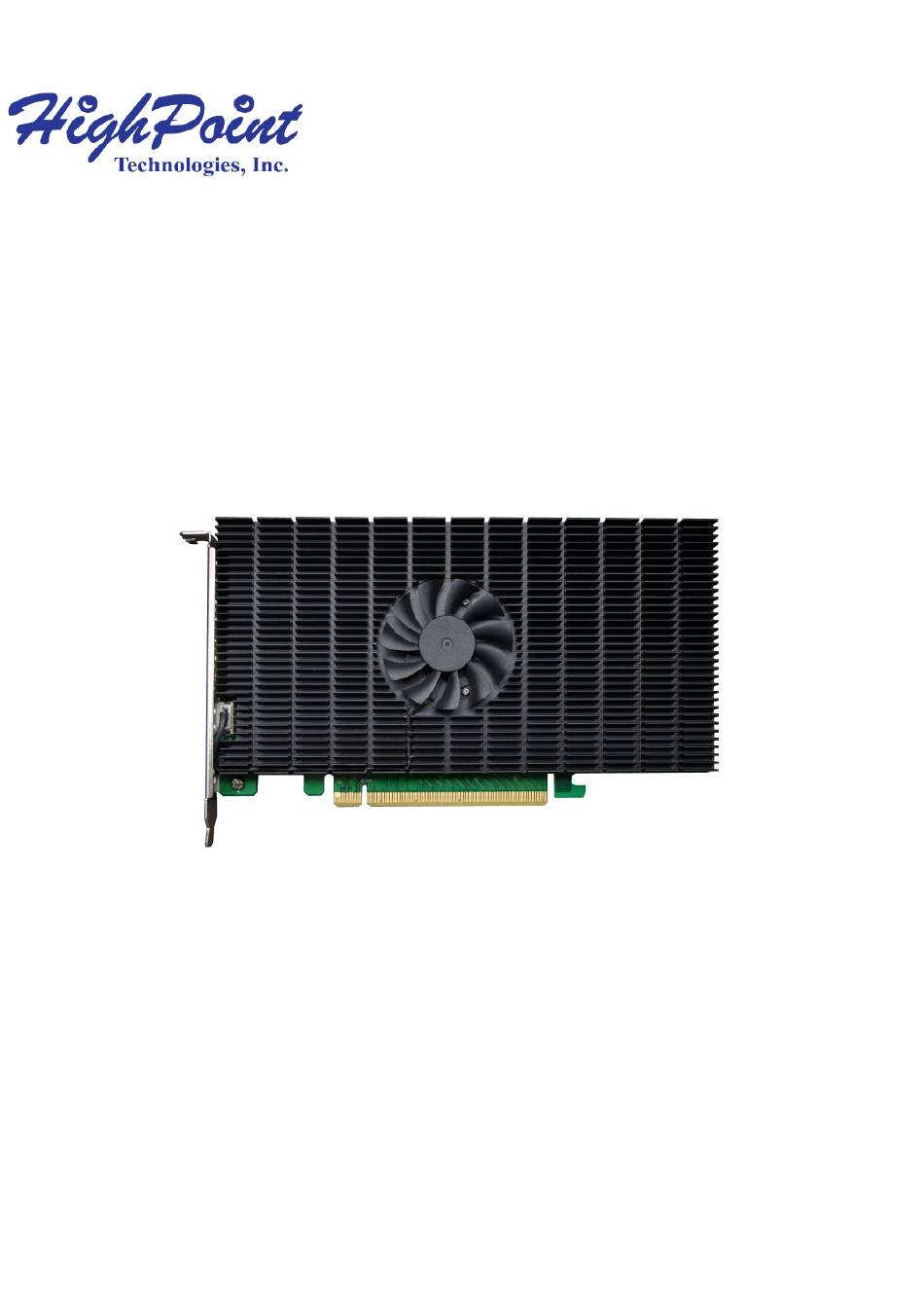

- Page 1 Rocket 1504 (R1504) 4x M.2 Port to PCIe 4.0 x16 NVMe HBA Quick Installation Guide V1.01...
-
Page 2: System Requirements

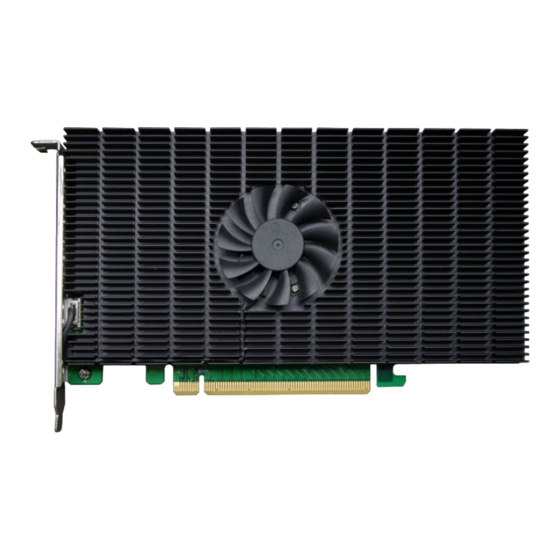

System Requirements PC Requirements System with a free PCIe 4.0 x16 or PCIe 3.0 x16 slot • Windows 11, 10 / Server 2022, 2019, 2016, Microsoft Hyper-V • RHEL/Debian/Ubuntu/Fedora/Proxmox/Xenserver (Linux kernel • 3.10 and later) macOS 10.13.6 ~ macOS 13.x •... - Page 3 R1504 Hardware Front View Full-Height form factor Anodized aluminum heat sink Low-Noise Cooling Fan PCIe 4.0 x16 Host Interface...
- Page 4 R1504 Hardware Installation: Step 1. On the rear of the R1504, remove the six screws that secure the unit’s heat sink to the PCB. After removing the screws, carefully remove the heat sink from the R1504. Step 2. After removing the casing, carefully turn it over to view the thermal pad.
- Page 5 Step 3. These 4 screws are used to install the NVMe SSDs. Step 4. Please remove the screws on the right side of R1504 Step 5. Gently insert the SSD into the slot. Note: If the NVMe SSDs were used previously, make sure the connectors are clean and free of dust prior to installation.
- Page 6 The following example shows four PCIe Gen4 SSD installed into Port 1, 2, 3 & 4; Port1 Port2 Port3 Port4 Step 7. Reattach the heat sink after installing all of the SSDs. Step 8. On the rear of the R1504, refasten the 6 screws that were removed in step 1.
-
Page 7: Customer Support
Customer Support If you encounter any problems while utilizing the R1504 drive, or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: https://www.highpoint-tech.com/support-and-services HighPoint Technologies, Inc. websites: https://www.highpoint-tech.com...
