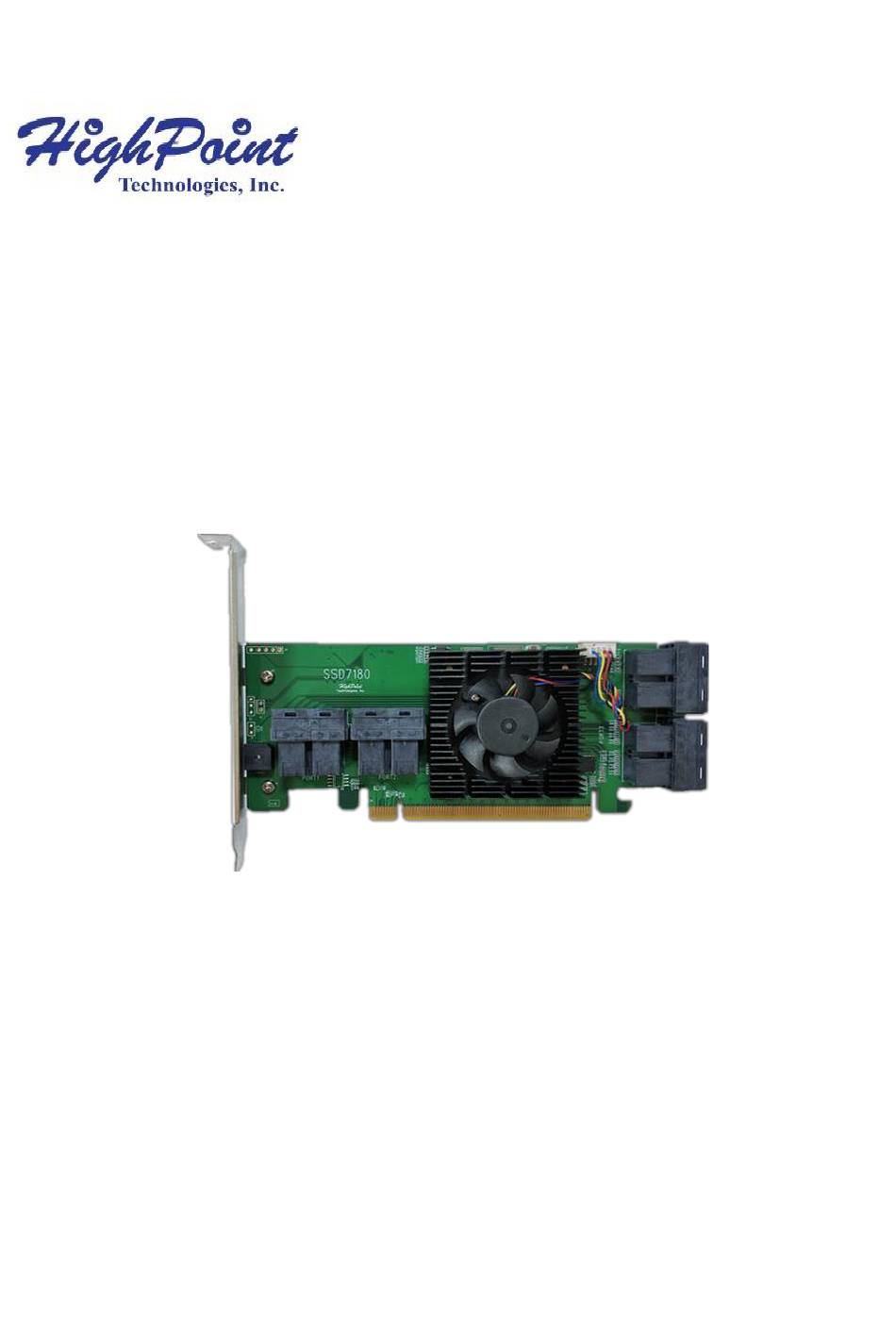

- Page 1 Rocket 1180 (R1180) 8x U.2 Port to PCIe 3.0 x16 NVMe HBA Quick Installation Guide V1.00...
- Page 2 System Requirements PC Requirements • System with a free PCIe 3.0 (or 4.0) x16 slot • Windows 11, 10 / Server 2022, 2019, 2016, Microsoft Hyper-V • RHEL/Debian/Ubuntu/Fedora/Proxmox/Xenserver (Linux kernel 3.10 and later) • FreeBSD 12.1 and later R1180 Kit Contents •...

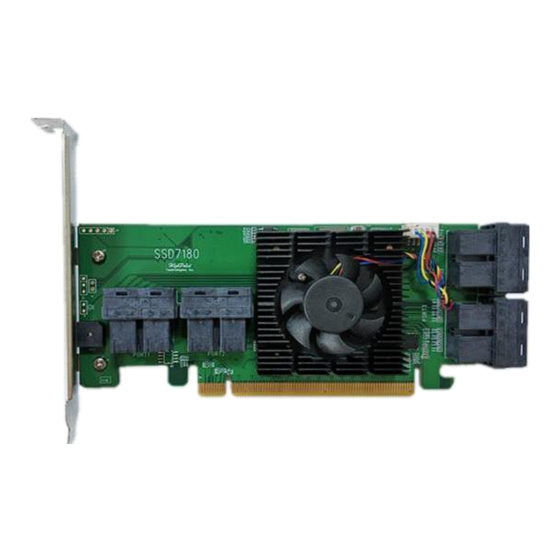

- Page 3 R1180 Hardware Front View 8x SFF-8643 Connectors PCIe 3.0 x 16 Host Interface R1180 Hardware Installation Step 1: The R1180 was designed for use with SFF-8643 to U.2 SFF- 8639 cables that have 15-pin SATA power connectors. Each of the R1180’s eight device ports accept an SFF-8643 cable connection.
- Page 4 SFF-8643 SATA-15pin SFF-8639 Step 2: Shown above is a SFF-8643 to U.2 SFF-8639 cable with a 15- pin SATA power connector. The SFF-8639 port should be connected to the NVMe SSD’s U.2 port. The 15 pin SATA power connector should be connected to the system’s power supply.
- Page 5 Note: Please make sure the cables are securely connected to the R1180’s device ports and the NVMe SSDs or backplane. Loose connections can lead to a variety of problems including instability, slower than expected performance and dropped disks.
- Page 6 Optional Certified Cable R1180 (Internal) 8643-8643-0350 SFF-8643 NVMe Host to SFF-8643 NVMe HD-Mini-SAS Device (U.2) cable Length: 13.78" (35cm) 8643-8639-50 SFF-8643 to SFF-8639 NVMe HD- Mini-SAS Device (U.2) cable, with Power Connector Length: 19" (50cm) OLX4-8643-061 SFF-8643 NVMe Host to Oculink backplane cable Length: 23.62"...
-
Page 7: Customer Support
Document Downloads: https://www.highpoint-tech.com/hba-gen3-nvme-m2 Customer Support If you encounter any problems while utilizing the R1180, or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: https://www.highpoint-tech.com/support-and-services HighPoint Technologies, Inc. websites: https://www.highpoint-tech.com...
