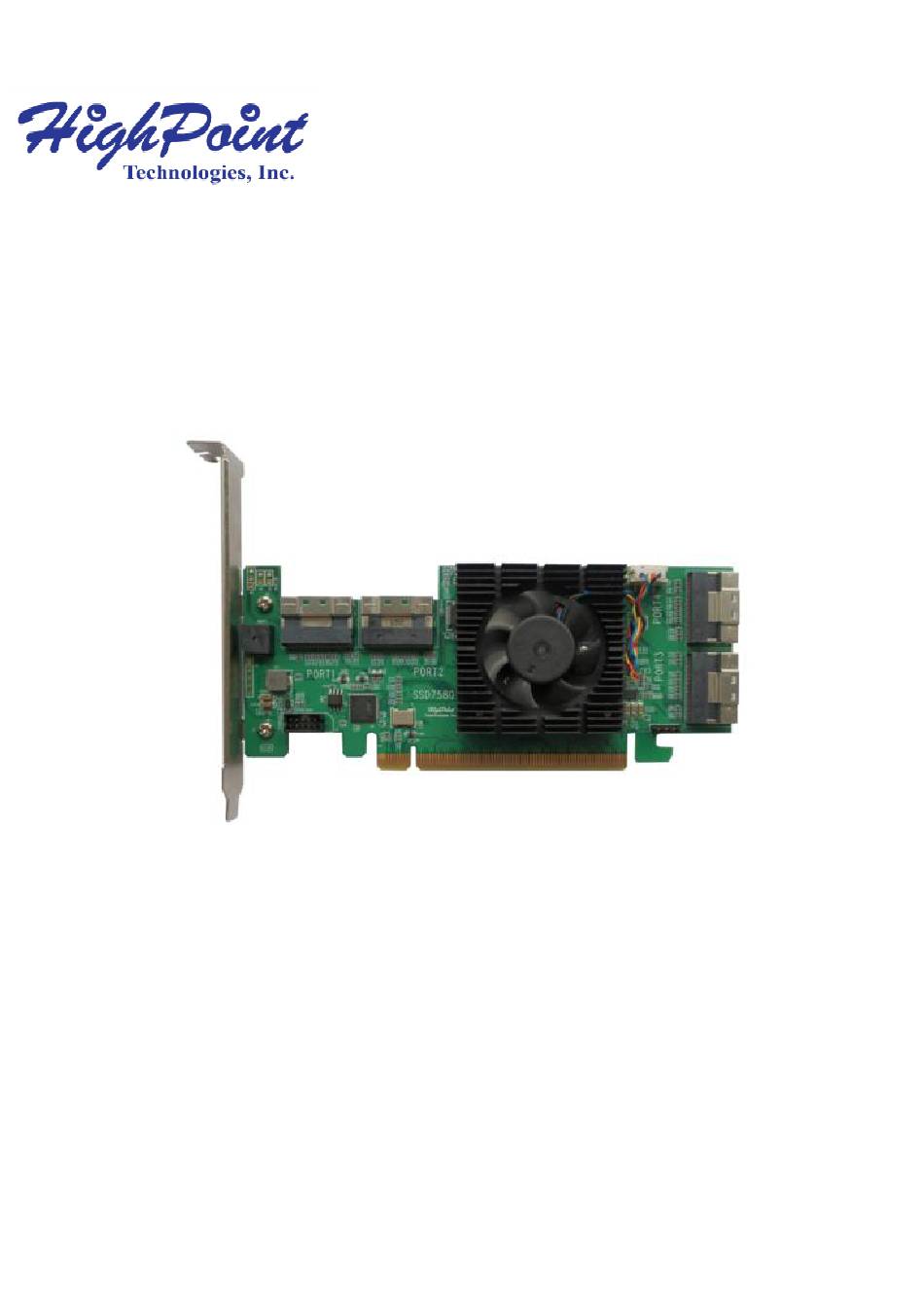

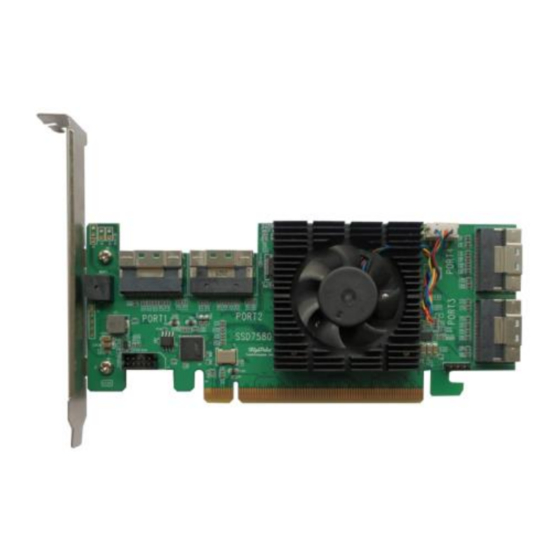

- Page 1 Rocket 1580 (R1580) 8x U.2 Port to PCIe 4.0 x16 NVMe HBA Quick Installation Guide V1.00...
- Page 2 System Requirements PC Requirements • System with a free PCIe 4.0 (or 3.0) x16 slot • Windows 11, 10 / Server 2022, 2019, 2016, Microsoft Hyper-V • RHEL/Debian/Ubuntu/Fedora/Proxmox/Xenserver (Linux kernel 3.10 and later) • FreeBSD 12.1 and later R1580 Kit Content •...
-
Page 3: Hardware Installation
Hardware Installation Step 1: The R1580 provides four device ports which utilize SFF-8654 connectors. These ports accept a variety of HighPoint Certified Cable Accessories (see the Accessories section towards the end of this guide for more information). The following procedure explains how to connect U.2 NVMe SSDs directly to the R1580... - Page 4 4x SFF-8654 Connectors TS8i-8639-060 NVMe cable SFF-8654 SATA-15pin SFF-8639...
- Page 5 Step 2: Connecting the SSDs using TS8i-8639-060 cables SFF-8639 port should be connected to the NVMe SSD’s U.2 port. The 15 pin SATA power connector should be connected to the system’s power supply. Step 3: Insert the R1580 controller into one of the motherboard’s open PCI-E 4.0 x16 slots.
- Page 6 Step 4: As described in step 2, connect the SFF-8639 cable connectors to the U.2/U.3 SSDs. Next, connect the SFF-8654 cable connector to one of the R1580’s four device ports (Ports 1 through 4) SFF-8639 15-pin SATA power connector...
- Page 7 Step 5: Connect the remaining NVMe SSDs to the R1580 as described above. Once complete, Power on the system. Note: Please make sure the cables are securely connected to the R1580’s device ports and the NVMe SSDs or backplane. Loose connections can lead to a variety of problems including instability, slower than expected performance and dropped disks.
- Page 8 Optional Certified Cable Accessories 8654-8643-210 SFF-8654 to SFF-8643 NVMe cable, 1meter length The 8654-8643-210 is SFF-8654 (host) to SFF-8643 (device) PCIe 4.0 x8 NVMe cable, and each cable can host up to 2x NVMe SSDs. 8654-8611-205 SFF-8654 to SFF-8611 NVMe cable, 0.5 meter length The 8654-8611-205 is SFF-8654 (host) to SFF-8611 (device) PCIe 4.0 x8 NVMe...
- Page 9 0.6meter length The SFF-8654 to U.2 SFF-8639 cable with a 15-pin SATA power connector. Each cable supports two U.2 NVMe SSDs. Resources We recommend visiting the Software Downloads webpage for the latest drivers, management interfaces, and installation guides. Document Downloads: https://www.highpoint-tech.com/hba-gen4-nvme-u2...
-
Page 10: Customer Support
Customer Support If you encounter any problems while utilizing the R1580, or have any questions about this or any other HighPoint Technologies, Inc. product, feel free to contact our Customer Support Department. Web Support: https://www.highpoint-tech.com/support-and-services HighPoint Technologies, Inc. websites: https://www.highpoint-tech.com...
