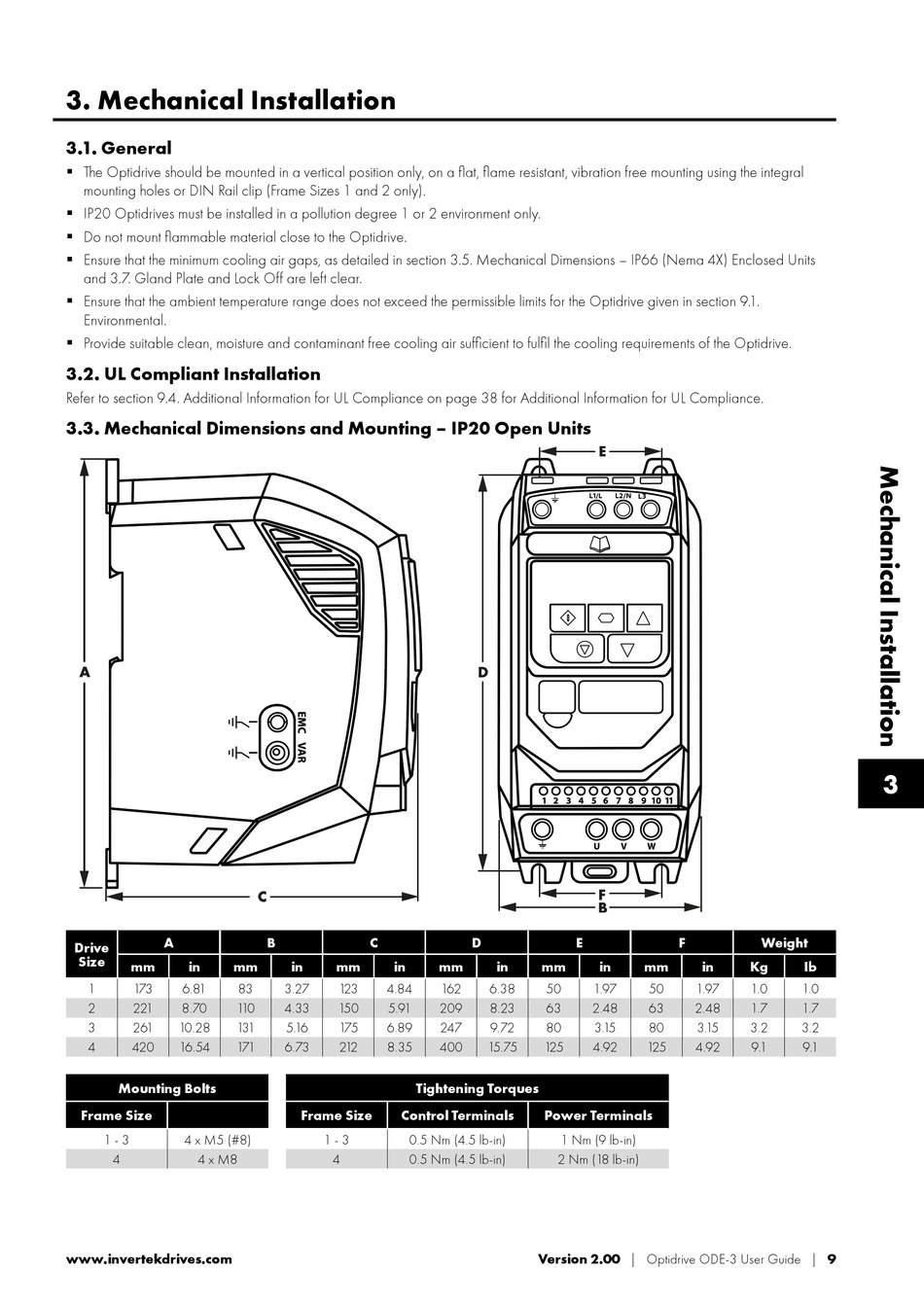

3. Mechanical Installation

3.1. General

 T he Optidrive should be mounted in a vertical position only, on a flat, flame resistant, vibration free mounting using the integral
mounting holes or DIN Rail clip (Frame Sizes 1 and 2 only).
 I P20 Optidrives must be installed in a pollution degree 1 or 2 environment only.
 D o not mount flammable material close to the Optidrive.
 E nsure that the minimum cooling air gaps, as detailed in section 3.5. Mechanical Dimensions – IP66 (Nema 4X) Enclosed Units
and 3.7. Gland Plate and Lock Off are left clear.
 E nsure that the ambient temperature range does not exceed the permissible limits for the Optidrive given in section 9. 1 .
Environmental.
 P rovide suitable clean, moisture and contaminant free cooling air sufficient to fulfil the cooling requirements of the Optidrive.

3.2. UL Compliant Installation

Refer to section 9.4. Additional Information for UL Compliance on page 38 for Additional Information for UL Compliance.
3.3. Mechanical Dimensions and Mounting – IP20 Open Units
A
Drive
Size
mm in mm
1 173 6.81 83
2 221 8.70 1 10
3 261 10.28 131
4 420 16.54 171
Mounting Bolts
Frame Size
1 - 3 4 x M5 (#8)
4 4 x M8
www.invertekdrives.com
B C
in mm in mm
3.27 123 4.84 162
4.33 150 5.91 209
5. 1 6 175 6.89 247
6.73 212 8.35 400
Tightening Torques
Frame Size Control Terminals
1 - 3 0.5 Nm (4.5 lb-in)
4 0.5 Nm (4.5 lb-in)
L1/L L2/N L3
D E
in mm in mm
6.38 50 1.97
8.23 63 2.48
9.72 80 3. 1 5
15.75 125 4.92 125
Power Terminals
1 Nm (9 lb-in)
2 Nm (18 lb-in)
Version 2.00 | Optidrive ODE-3 User Guide | 9
F Weight
in Kg Ib
50 1.97 1.0 1.0
63 2.48 1.7 1.7
80 3. 1 5 3.2 3.2
4.92 9. 1 9. 1
3
