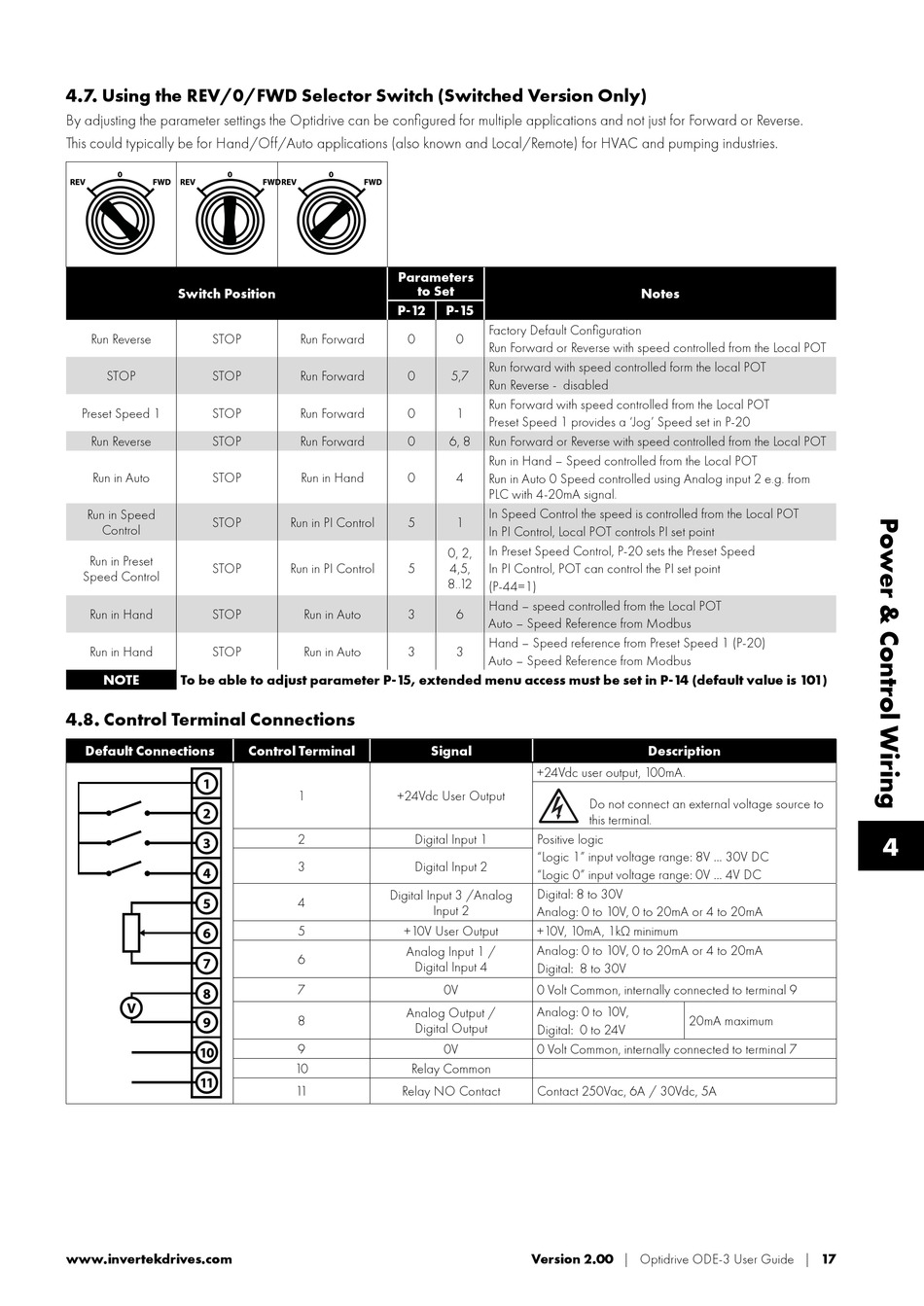

4.7. Using the REV/0/FWD Selector Switch (Switched Version Only)
By adjusting the parameter settings the Optidrive can be configured for multiple applications and not just for Forward or Reverse.
This could typically be for Hand/Off/Auto applications (also known and Local/Remote) for HVAC and pumping industries.
Switch Position
Run Reverse STOP
STOP STOP
Preset Speed 1 STOP
Run Reverse STOP
Run in Auto STOP
Run in Speed
STOP
Control
Run in Preset
STOP
Speed Control
Run in Hand STOP
Run in Hand STOP
NOTE To be able to adjust parameter P-15, extended menu access must be set in P-14 (default value is 101)

4.8. Control Terminal Connections

Default Connections
www.invertekdrives.com
Parameters
to Set
P-12
Run Forward 0
Run Forward 0
Run Forward 0
Run Forward 0
Run in Hand 0
Run in PI Control 5
Run in PI Control 5
Run in Auto 3
Run in Auto 3
Control Terminal
1 +24Vdc User Output
2 Digital Input 1
3 Digital Input 2
Digital Input 3 /Analog
4
5 +10V User Output
Analog Input 1 /
6
Digital Input 4
7
Analog Output /
8
Digital Output
9
10 Relay Common
1 1 Relay NO Contact
P-15
Factory Default Configuration
0
Run Forward or Reverse with speed controlled from the Local POT
Run forward with speed controlled form the local POT
5,7
Run Reverse - disabled
Run Forward with speed controlled from the Local POT
1
Preset Speed 1 provides a 'Jog' Speed set in P-20
6, 8 Run Forward or Reverse with speed controlled from the Local POT
Run in Hand – Speed controlled from the Local POT
4
Run in Auto 0 Speed controlled using Analog input 2 e.g. from
PLC with 4-20mA signal.
In Speed Control the speed is controlled from the Local POT
1
In PI Control, Local POT controls PI set point
In Preset Speed Control, P-20 sets the Preset Speed
0, 2,
4,5, In PI Control, POT can control the PI set point
8.. 1 2
(P-44=1)
Hand – speed controlled from the Local POT
6
Auto – Speed Reference from Modbus
Hand – Speed reference from Preset Speed 1 (P-20)
3
Auto – Speed Reference from Modbus
Signal
+24Vdc user output, 100mA.
Do not connect an external voltage source to
this terminal.
Positive logic
"Logic 1" input voltage range: 8V ... 30V DC
"Logic 0" input voltage range: 0V ... 4V DC
Digital: 8 to 30V
Input 2
Analog: 0 to 10V, 0 to 20mA or 4 to 20mA
+10V, 10mA, 1k minimum
Analog: 0 to 10V, 0 to 20mA or 4 to 20mA
Digital: 8 to 30V
0V 0 Volt Common, internally connected to terminal 9
Analog: 0 to 10V,
Digital: 0 to 24V
0V 0 Volt Common, internally connected to terminal 7
Contact 250Vac, 6A / 30Vdc, 5A
Version 2.00 | Optidrive ODE-3 User Guide | 17
