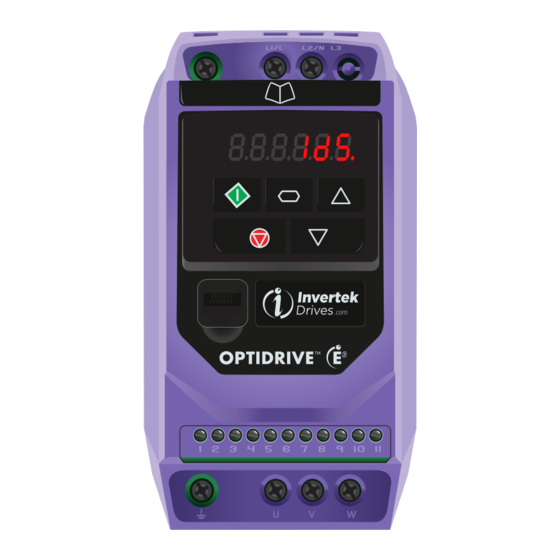

Invertek Optidrive E3 Frequency Inverter (IP20, 3ph output)
Easy Start Guide
The Invertek Optidrive E3 Frequency Inverter range is
available to order from inverterdrive.com
This guide is intended to complement the user manual provided by the manufacturer.
It is provided as a basic introduction to the product for Inverter Drive Supermarket customers.
It should not be used as a replacement for the manual issued by the manufacturer.
This product is not a safety device. All safety considerations including but not
limited to Emergency Stop provision should be assessed separately and are
outside the scope of this guide.
Issue 1
20190107

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Optidrive E3 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Invertek Optidrive E3 Series

Summary of Contents for Invertek Optidrive E3 Series

  • Page 1 Invertek Optidrive E3 Frequency Inverter (IP20, 3ph output) Easy Start Guide The Invertek Optidrive E3 Frequency Inverter range is available to order from inverterdrive.com This guide is intended to complement the user manual provided by the manufacturer. It is provided as a basic introduction to the product for Inverter Drive Supermarket customers.

  • Page 2: Table Of Contents

    Easy Start Guide Invertek Optidrive E3 Inverter (IP20, 3ph output) Contents Page 1 Contents Page 2 Power and Motor Connections (Single Phase) Page 3 Power and Motor Connections (Three Phase) Page 4 Motor Connections - Star and Delta Page 5...

  • Page 3: Power And Motor Connections (Single Phase)

    Easy Start Guide Invertek Optidrive E3 Inverter (IP20, 3ph output) 1. Power and Motor Connections (Single Phase) SUPPLY L1/L (Live) (Earth) L2/N (Neutral) Before commencing, confirm that the Inverter and all cables are completely isolated from the power supply, have been isolated for at least 5 minutes and that the motor is not turning.

  • Page 4: Power And Motor Connections (Three Phase)

    Easy Start Guide Invertek Optidrive E3 Inverter (IP20, 3ph output) 2. Power and Motor Connections (Three Phase) SUPPLY Phase (Earth) Phase Phase Before commencing, confirm that the Inverter and all cables are completely isolated from the power supply, have been isolated for at least 5 minutes and that the motor is not turning.

  • Page 5: Motor Connections - Star And Delta

    Easy Start Guide Invertek Optidrive E3 Inverter (IP20, 3ph output) 3. Motor Connections - Star and Delta Dual voltage induction motors typically include The selection of Star or Delta is not optional terminal boxes with six points. The points can and must match the supply voltage.

  • Page 6: Parameters - Overview

    Easy Start Guide Invertek Optidrive E3 Inverter (IP20, 3ph output) 4. Parameters - overview The Inverter contains a number of settings The parameters contain critical information which can be changed to tailor it for use in a essential to the correct operation of the wide range of applications.

  • Page 7: How To Set A Parameter Value

    Easy Start Guide Invertek Optidrive E3 Inverter (IP20, 3ph output) 6. How to set a Parameter value 6.1 Press the navigation key to access parameters. When powered up the Optidrive default display is “Stop”. To access the parameter list press and hold the navigation key for approx.

  • Page 8: How To Operate The Inverter From The Keypad

    Easy Start Guide Invertek Optidrive E3 Inverter (IP20, 3ph output) 7. How to operate the Inverter from the keypad 7.1 Select “local” control mode. As default, the Optidrive E3 is set to operate from the integrated IO terminals. To operate from the keypad, the Optidrive needs to be set to “local”...

  • Page 9: How To Enable/Disable Sensorless Vector Mode

    Easy Start Guide Invertek Optidrive E3 Inverter (IP20, 3ph output) 8. How to enable/disable Sensorless Vector mode The standard motor control mode of the To fully enable Sensorless Vector control by Optidrive E3 is Sensorless Vector. By default, performing an Autotune, first set the parameter the E3 uses the motor parameters for this values specified in 8.1 (below) and then...

  • Page 10: How To Connect And Configure A Potentiometer For Remote Speed Control

    Easy Start Guide Invertek Optidrive E3 Inverter (IP20, 3ph output) 9. How to connect and configure a Potentiometer for remote speed control If speed control via the integrated keypad is Any potentiometer rated from 1kOhm to unsuitable for the application, a remote 10kOhm can be used.

  • Page 11: How To Connect And Configure A Run Forward Or

    Easy Start Guide Invertek Optidrive E3 Inverter (IP20, 3ph output) 10. How to connect and configure a Run Forward or Run Reverse switch The procedure described in section 7 enables This section explains how to enable 2-wire Run/Stop operation via the start and stop control with Run Forward / Stop / Run Reverse buttons on the Inverter keypad.

  • Page 12: How To Connect And Configure A Run/Stop Switch

    Easy Start Guide Invertek Optidrive E3 Inverter (IP20, 3ph output) 11. How to connect and configure a Run/Stop switch with Forward/Reverse selection The procedure described in section 7 enables This section explains how to enable 2-wire Run/Stop operation via the start and stop control with Run/Stop and Forward/Reverse buttons on the Inverter keypad.

  • Page 13: How To Configure "3-Wire" Control With Run

    Easy Start Guide Invertek Optidrive E3 Inverter (IP20, 3ph output) 12. How to configure “3-Wire” control with Run Forward Run Reverse and Stop pushbuttons The procedure described in section 7 enables This section explains how to enable 3-wire Run/Stop operation via the start and stop control with Run Forward, Run Reverse and buttons on the Inverter keypad.

  • Page 14: Brake Resistor Connection (Size 2 And Above)

    Easy Start Guide Invertek Optidrive E3 Inverter (IP20, 3ph output) 13. Brake Resistor Connection (size 2 and above) Before commencing, confirm that the Inverter and all cables are completely isolated from the power supply, have been isolated for at least 5 minutes and that the motor is not turning.

  • Page 15: How To Reset The Inverter To Factory Defaults

    Easy Start Guide Invertek Optidrive E3 Inverter (IP20, 3ph output) 14. How to reset the Inverter to Factory Defaults 14.1 Three Button Reset To reset all parameters to their factory default values, press and hold the up, down and stop keys together for approx.
