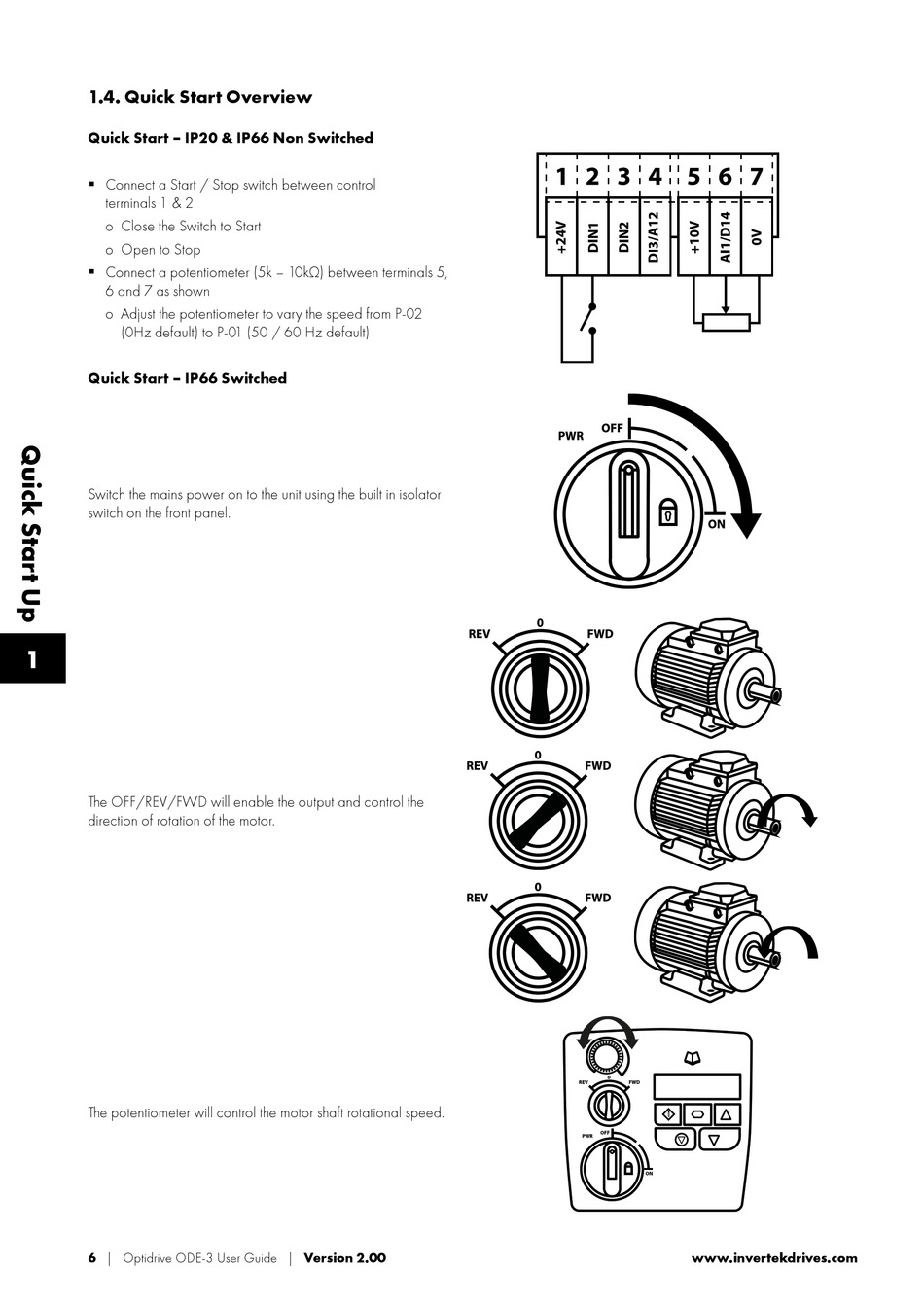

1.4. Quick Start Overview
Quick Start – IP20 & IP66 Non Switched
 C onnect a Start / Stop switch between control
terminals 1 & 2
o Close the Switch to Start
o Open to Stop
 C onnect a potentiometer (5k – 10k ) between terminals 5,
6 and 7 as shown
o Adjust the potentiometer to vary the speed from P-02
(0Hz default) to P-01 (50 / 60 Hz default)
Quick Start – IP66 Switched
Switch the mains power on to the unit using the built in isolator
switch on the front panel.
1
The OFF/REV/FWD will enable the output and control the
direction of rotation of the motor.
The potentiometer will control the motor shaft rotational speed.
