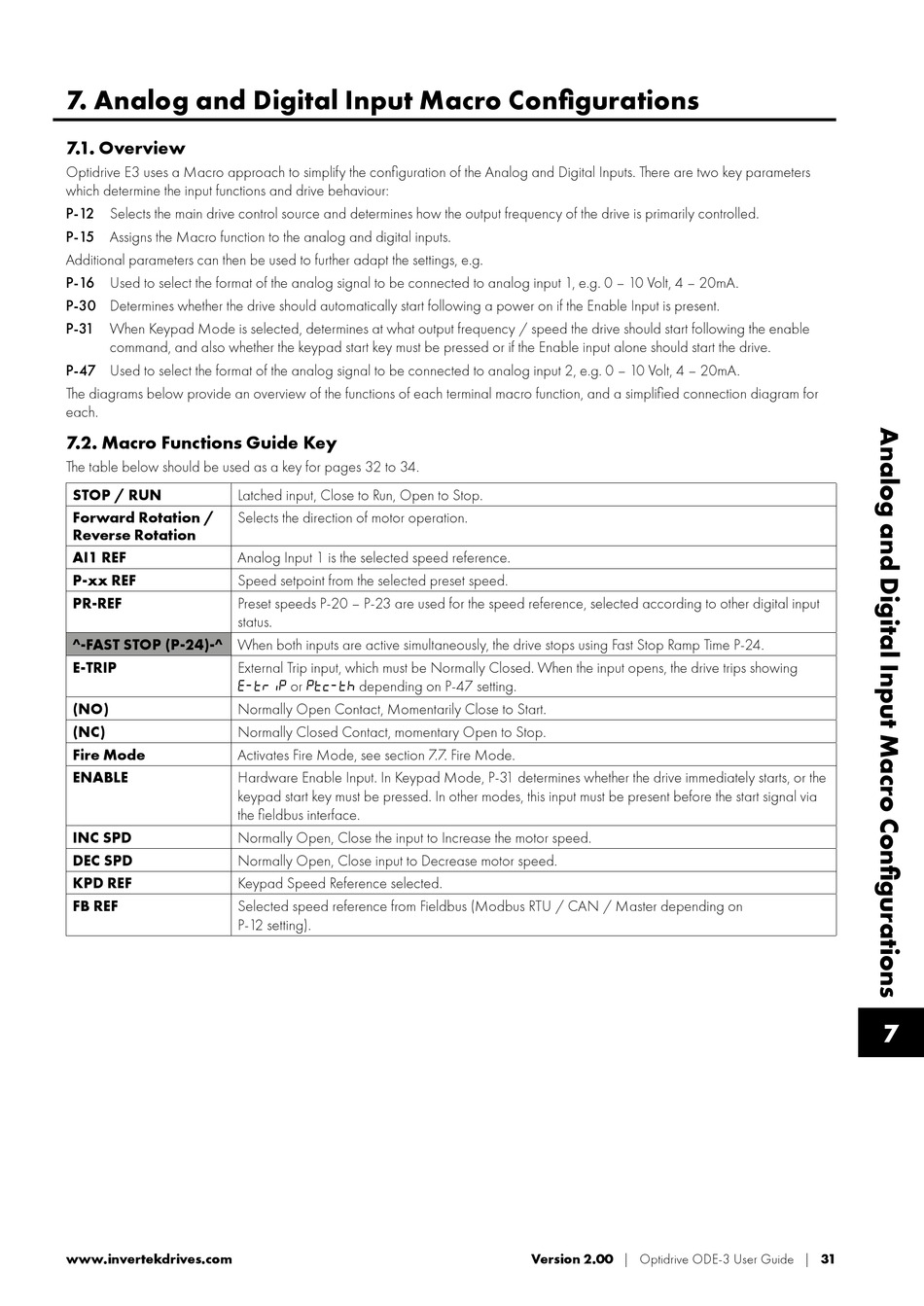

7. Analog and Digital Input Macro Configurations

7.1. Overview

Optidrive E3 uses a Macro approach to simplify the configuration of the Analog and Digital Inputs. There are two key parameters
which determine the input functions and drive behaviour:
P-12 Selects the main drive control source and determines how the output frequency of the drive is primarily controlled.
P-15 Assigns the Macro function to the analog and digital inputs.
Additional parameters can then be used to further adapt the settings, e.g.
P-16 Used to select the format of the analog signal to be connected to analog input 1, e.g. 0 – 10 Volt, 4 – 20mA.
P-30 Determines whether the drive should automatically start following a power on if the Enable Input is present.
P-31 When Keypad Mode is selected, determines at what output frequency / speed the drive should start following the enable
command, and also whether the keypad start key must be pressed or if the Enable input alone should start the drive.
P-47 Used to select the format of the analog signal to be connected to analog input 2, e.g. 0 – 10 Volt, 4 – 20mA.
The diagrams below provide an overview of the functions of each terminal macro function, and a simplified connection diagram for
each.

7.2. Macro Functions Guide Key

The table below should be used as a key for pages 32 to 34.
STOP / RUN
Latched input, Close to Run, Open to Stop.
Forward Rotation /
Selects the direction of motor operation.
Reverse Rotation
AI1 REF
Analog Input 1 is the selected speed reference.
P-xx REF
Speed setpoint from the selected preset speed.
PR-REF
Preset speeds P-20 – P-23 are used for the speed reference, selected according to other digital input
status.
^-FAST STOP (P-24)-^ When both inputs are active simultaneously, the drive stops using Fast Stop Ramp Time P-24.
E-TRIP
External Trip input, which must be Normally Closed. When the input opens, the drive trips showing
 or  depending on P-47 setting.
(NO)
Normally Open Contact, Momentarily Close to Start.
(NC)
Normally Closed Contact, momentary Open to Stop.
Fire Mode
Activates Fire Mode, see section 7.7. Fire Mode.
ENABLE
Hardware Enable Input. In Keypad Mode, P-31 determines whether the drive immediately starts, or the
keypad start key must be pressed. In other modes, this input must be present before the start signal via
the fieldbus interface.
INC SPD
Normally Open, Close the input to Increase the motor speed.
DEC SPD
Normally Open, Close input to Decrease motor speed.
KPD REF
Keypad Speed Reference selected.
FB REF
Selected speed reference from Fieldbus (Modbus RTU / CAN / Master depending on
P-12 setting).
