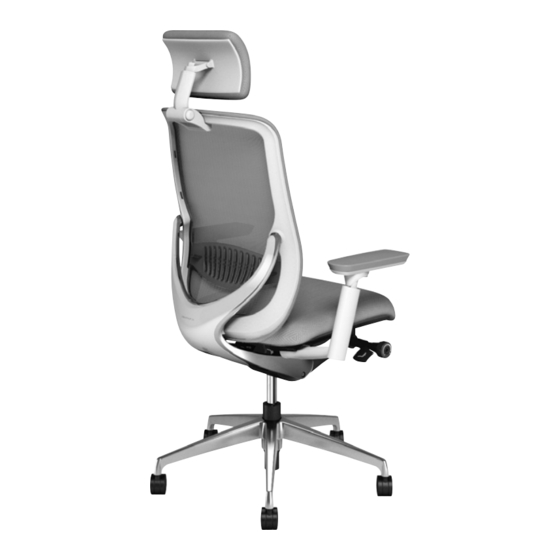

Okamura Zephyr Light Assembly And Instructions For Use

Thank you for purchasing Okamura "Zephyr light" product. This guidebook will enable to properly use
the "Zephyr light" product. Thoroughly read this guidebook and fully understand its content before using
the product. Also, we recommend having this handbook nearby whenever using the product.
Component List
Seat height adjustment
gas spring ×1pcs.
Assembly Instruction
1
Gas spring attachment
Place the seat hight adjustment
gas spring to the 5-star base.
Seat height adjustment
gas spring
Base
Safety Instructions ( Make sure to follow these instructions )
Indicates that improper handling may cause injury or
Caution
property damage.
・ Do not handle roughly, or use improperly.
・Do not use as a carrier.
・Do not stand on the chair or sit on the front side of seat or armrest.
・Do not sit on any parts other than the seat.
・ Disassembly/repair.
The seat raising mechanism (gas spring) contains high pressure gas, and in
the event any irregularities are found, any disassembly or repair attempts by
the customer are extremely dangerous for this part in particular, so please
do not attempt disassembly or repair, contact our company's sales agent.
・ Do not disassemble or repair on your own. Please contact our
official dealers when needed.
・ Do not insert hands into any gaps or movable parts.
Assembly Instruction & Instructions for Use
Base ×1pcs.
2
Main body attachment
Place the main body on the seat
height adjustment gas spring.
Main body
Seat height adjustment
gas spring
( Check the components before starting assembly )
( Right )
Main body Adjustable arm ( Left and right )
×1pcs. × 1 piece each
( Follow the procedure correctly )
3
Headrest attachment
Attach the headrest to the back of
the main body, and fasten using the
2 hexagon socket bolts (M6×20L).
Headrest
Hexagon
socket bolt
( M6×20L )
Main body
Instructions to Extend the Life of Product
・ Indoor use only.
・Do not use outdoors or places with water, as exposure to moisture could
result in problems such as warping or the growth of mold.
・Avoid keeping the product in direct sunlight as this could result in warping
or fading of colors due to exposure to the sun.
・ Instructions for Use and Maintenance.
If the product has become unsteady due to loosening of the bolts or screws
during use, retighten them immediately. Frequent maintenance of the
product during its use is the key to making it at last a long time.
・ Metal part and resin part care.
For daily care, briskly wipe with a well wrung-out, soft cloth. If there is any
significant dirt, wipe with thinned neutral detergent and carefully wipe down
with water to ensure no detergent remains, then wipe dry with a dry, soft cloth.
・ Mesh material, cushion part care.
After tapping the mesh section with your hand, use an electric vacuum to remove
any remaining dust. The cushion part cannot be cleaned, so if it becomes
significantly dirty, it is recommended to replace it with a new cushion part.
Headrest ×1pcs.
Hexagon socket bolt
( M6×20L ) × 6pcs.
Nominated Tools
( Left )
hex key wrench
( 5mm )
4
Adjustable arm attachment
Fasten the left and right adjustable
arms to the back of the main body
using the 2 hexagon socket bolts
( M6×20L ) . ( Side )
Adjustable arm
( Right )
Washer Hexagon socket bolt
( M6×20L )
