Wittkopp 7800 Installation Instructions Manual

Combination lock / dial & ring
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

Installation Instructions

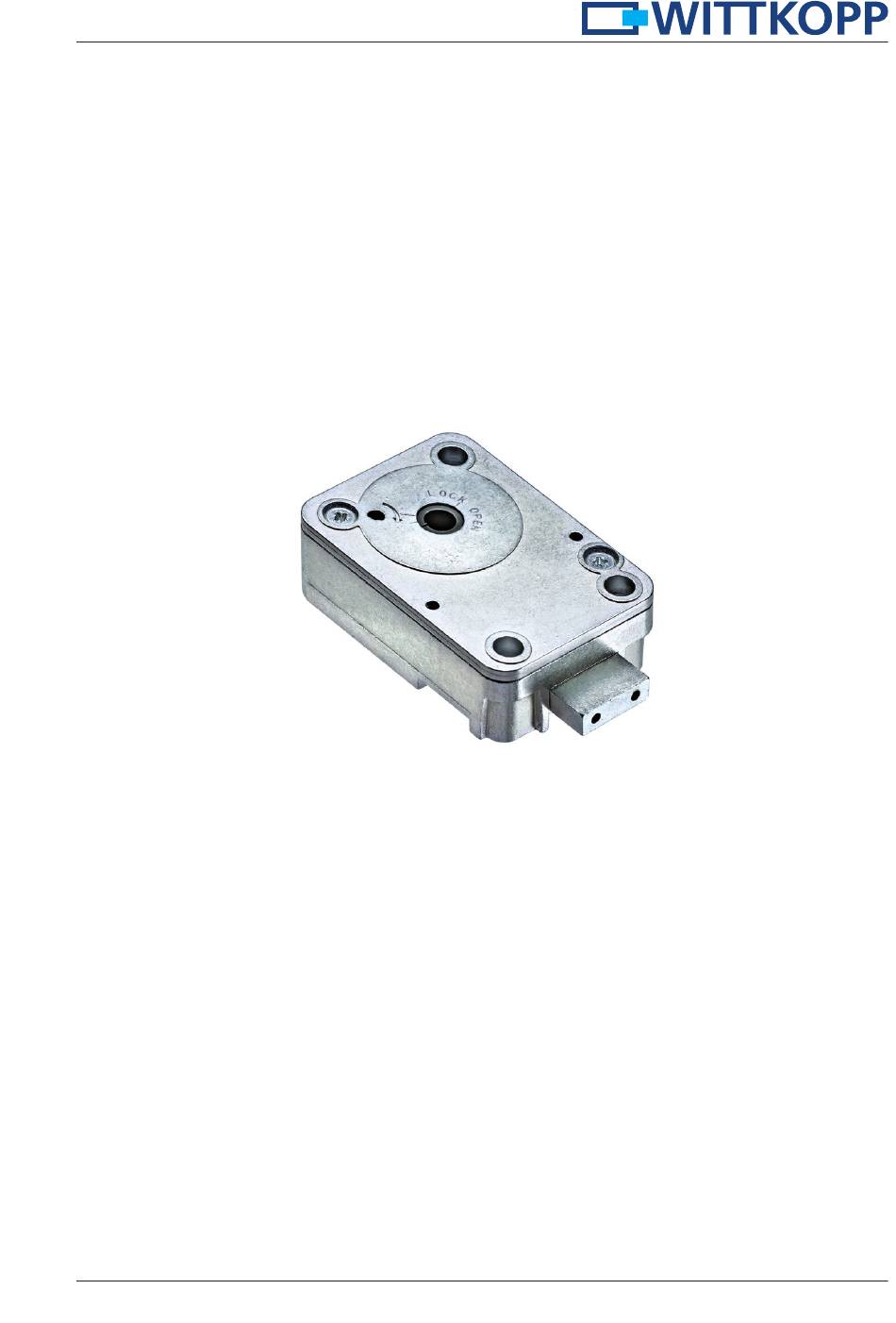

Combination lock 7800/
Dial & ring 7800

Table of contents

Rel. 1.2
© Carl Wittkopp GmbH - errors and omissions excepted
02.07.2015
Installation instructions no. 9999-094-0
Page
2
2
4
5
6
7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7800 and is the answer not in the manual?

Questions and answers

Related Manuals for Wittkopp 7800

Summary of Contents for Wittkopp 7800

  • Page 1 Table of contents Page 1 Dials & rings 2 Mounting 3 Opening 4 Changing 5 What if ... 6 Dimensions/mounting instructions dial & ring © Carl Wittkopp GmbH - errors and omissions excepted Rel. 1.2 02.07.2015 Installation instructions no. 9999-094-0...

  • Page 2: Dials & Rings

    & ring and place the spindle flat on a table edge. Zero is about facing down. Read the number that now appears on top of the dial. Wittkopp dials & rings show “45“. Other dials & rings show e.g. “43“ or “50“.

  • Page 3: Mounting

    Combination lock 7800 Installation Instructions Fig. 3: Fitting • Only use the delivered 3 mounting screws (M6 or US 1/4 20G BSW) and fasten as usual (torque approximately 3.5 Nm). An independent loosening of the screws has to be avoided. Recommendation: use liquid safety agent.

  • Page 4: Opening

    Combination lock 7800 Installation Instructions 3 Opening • Use the Opening index (see Operating instructions Fig. 1, p. 2). Open with factory code “50”*. Turn LEFT and pass “50” three times and stop exactly on “50” on the Opening index the fourth time.

  • Page 5: Changing

    Combination lock 7800 Installation Instructions 4 Changing • Changing to a new factory combination, for example 10 – 20 – 30. • Use the Changing index (see Operating instructions p. 3). Before setting a new combination, open the safe door and close the lock (bolt extended).
  • Page 6 Combination lock 7800 Installation Instructions 5 What if … …accidentally the cam got moved before installation: As long as the factory code “50” has not been changed with the change key, the lock can be prepared for mounting following the steps below: Hold the lock so that you look at the cover and the bolt is to the right.
  • Page 7 Combination lock 7800 Installation Instructions 6 Dimensions/mounting instructions dial & ring • The provided shaft can be used for door diameters up to 125 mm/5 inch. Measure the distance (D) between the mounting surfaces of the dial and the lock (see Fig.

  • Page 8: Combination Lock

    Combination lock 7800 Installation Instructions Fig. 10: Measure dial & ring Fig. 11: Connection dial & ring/square shaft • Affix the shaft in the square hole with the provided screw in the dial. Make sure the shaft is seated all the way in the square hole. Cover the screw with the label. Install the lock first according to the installation instructions.
