XStream-PKG-E™ Ethernet RF Modem
XStream Ethernet RF Modem
Operation
RF Modem Configuration
Appendices
Product Manual
XStream RF Modem Part Numbers:
355 South 520 West, Suite 180
Lindon, UT 84042
Phone: (801) 765-9885
Fax: (801) 765-9895
rf-xperts@maxstream.net
www.maxstream.net (live chat support)
v4.2A
X09-001PK...-E...
X09-009PK...-E...
X09-019PK...-E...
X24-009PK...-E...
XH9-001PK...-E...
X24-019PK...-E...
XH9-009PK...-E...
XH9-019PK...-E...
M100110
09.24.2004
Advertisement
Table of Contents
Related Manuals for MaxStream XStream-PKG-E Series
Summary of Contents for MaxStream XStream-PKG-E Series

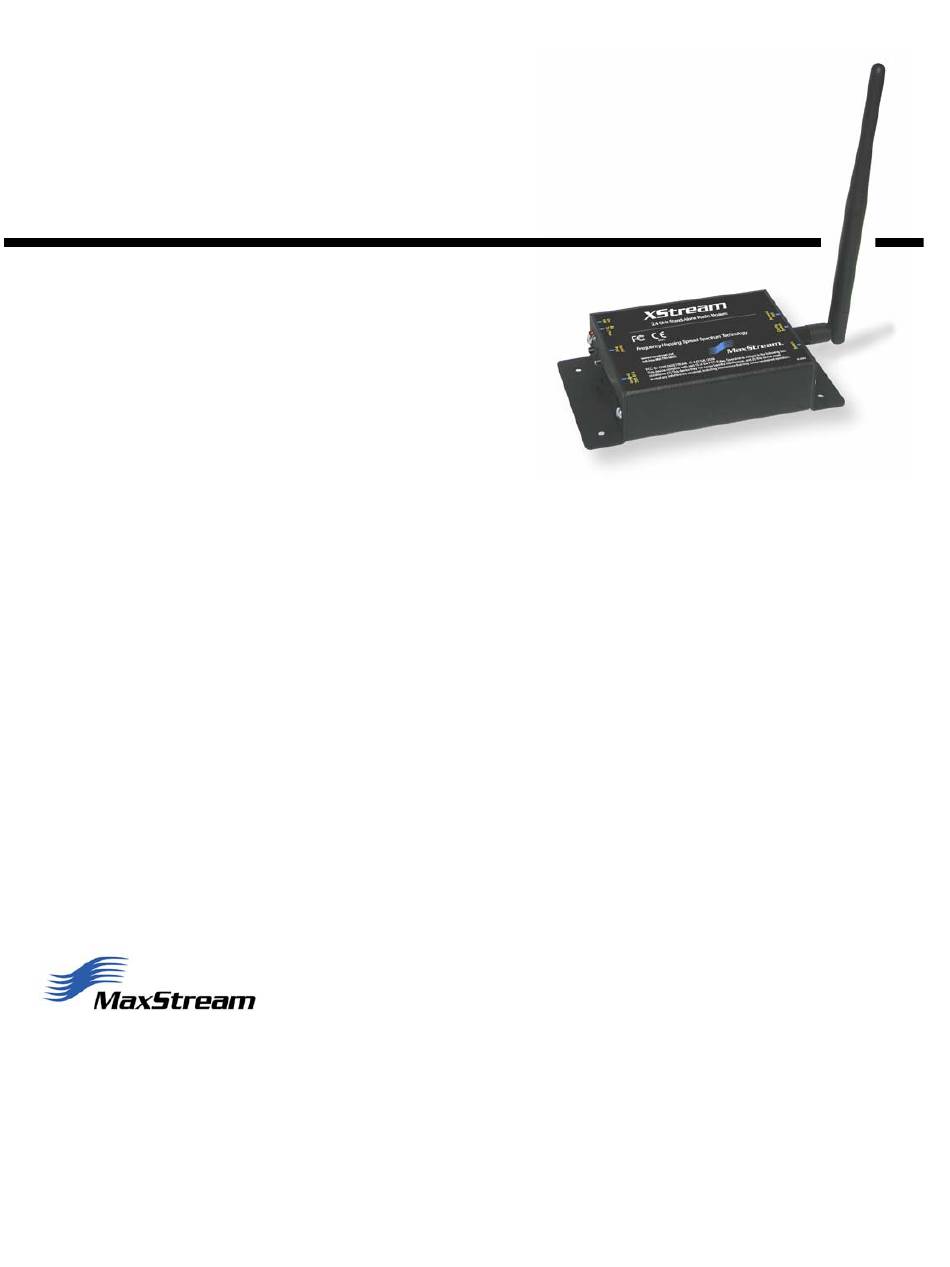

- Page 1 RF Modem Configuration Appendices Product Manual v4.2A XStream RF Modem Part Numbers: X09-001PK…-E… X24-009PK…-E... XH9-001PK…-E... X09-009PK…-E… X24-019PK…-E… XH9-009PK…-E… X09-019PK…-E… XH9-019PK…-E… 355 South 520 West, Suite 180 Lindon, UT 84042 Phone: (801) 765-9885 Fax: (801) 765-9895 rf-xperts@maxstream.net M100110 www.maxstream.net (live chat support) 09.24.2004...
- Page 2 No part of the contents of this manual may be transmitted or reproduced in any form or by any means without the written permission of MaxStream, Inc. XStream™ is a registered trademark of MaxStream, Inc. XPort is a trademark of Lantronix. Ethernet is a trademark of XEROX Corporation.
-
Page 3: Table Of Contents
European Compliance (2.4 GHz only) 21 OEM Labeling Requirements Restrictions IC (Industry Canada) Certification 22 Appendix B: Additional Information 1-Year Warranty 23 XStream-PKG RF Modem Part Numbers 23 Ethernet Background Information 24 Contact MaxStream 24 © 2004 MaxStream, Inc., Confidential and Proprietary... -
Page 4: Xstream Ethernet Rf Modem
Worldwide Acceptance FCC Certified (USA) [Go to Appendix A for FCC Requirements] Systems that contain XStream RF Modems can inherit MaxStream’s FCC Certification ISM (Industrial, Scientific & Medical) frequency band Manufactured under ISO 9001:2000 registered standards 9XStream-PKG-E (900 MHz) RF Modems approved for use in US, Canada, Australia, Israel (and more). -
Page 5: Xstream-Pkg-E Interface
Simultaneously press the Reset [2a] and Config switches; release Port the Reset Switch; then after 1 sec., release the Config Switch. The RF Modem then enters AT Command Mode at the modem’s default baud rate. © 2004 MaxStream, Inc., Confidential and Proprietary... -
Page 6: Xstream-Pkg-E Ethernet Rf Modem Specifications
Impedance 50 ohms unbalanced Certifications FCC Part 15.247 OUR9XSTREAM OUR-24XSTREAM Industry Canada (IC) 4214A-9XSTREAM 4214A 12008 Europe ETSI, CE * Divide by 2 for 18V supply (Constant wattage from 7 to 28 V). © 2004 MaxStream, Inc., Confidential and Proprietary... -
Page 7: Rf Operation
System Description The PKG-E Ethernet RF Modem can be used as an access point in a network of MaxStream RS- 232/RS-485 RF Modems (or other OEM RF Module Embedded Devices). XStream RF Modems support point-to-point, peer-to-peer, point-to-multipoint and multidrop network topologies. -
Page 8: Communications
To Install the X-CTU Software: Double-click the “setup_X-CTU.exe” file then follow prompts of the installation screens. This file is located in the “software” folder of the MaxStream CD and under the ‘Downloads’ section of the following web page: www.maxstream.net/helpdesk/. Installation #2: Ethernet Com Port Redirector MaxStream provides com port redirection software that creates a com port in the operating system that will forward serial data to the IP address of the Ethernet-connected RF modem. -
Page 9: Setup Com Port & Ip Address
If the Ethernet RF Modem is left in DHCP mode, it may become necessary to reconfigure a mapped com port any time an IP address is re-assigned by the DHCP server. Dynamic addressing is supported, but setting a static IP address can simplify the application. © 2004 MaxStream, Inc., Confidential and Proprietary... -
Page 10: Assign Static Ip Address
Select the “Apply” button; then re-boot the PC if prompted to do so. Go to the “Ethernet Com Ports” sub-tab of the X-CTU Software’s “PC Settings” tab. Highlight the old com port entry, select the “Delete Com Port” button, then select the “Apply” button. © 2004 MaxStream, Inc., Confidential and Proprietary... -
Page 11: Testing Communications
XStream-PKG-E™ Ethernet RF Modem – Product Manual v4.2A Testing Communications When testing a wireless link, MaxStream suggests creating the link using the following components: • XStream-PKG-E Ethernet RF Modem (connected to a local network) • XStream-PKG-R RS-232/485 RF Modem (w/ loopback adapter) •... - Page 12 XStream-PKG-E™ Ethernet RF Modem – Product Manual v4.2A Telnet Loopback Test MaxStream Wireless links can be tested by connecting to the specific IP address and port number. Test a Wireless Link (Telnet Connection): Follow steps in the “XStream-PKG-E Ethernet RF Modem Discovery” section [page Setup hardware as shown in the ‘Hardware Setup for Loopback Test’...
-
Page 13: Rf Modem Configuration
• “XPort User Manual (for advanced configurations specific to the Ethernet port) Both manuals are located in the “documentation” folder of the MaxStream CD. AT Command Mode In order to set or modify RF Modem parameters, the RF Modem must first enter into “AT Command Mode”, a state in which incoming characters are interpreted as AT commands instead... - Page 14 Parameters can be read and modified by sending AT Commands to the RF Modem via MaxStream’s X-CTU Software or other serial communications software such as “HyperTerminal”. XStream AT Commands are explained in further detail in MaxStream’s “XStream Advanced Programming & Configuration” manual.
-
Page 15: Configuration
XStream-PKG-E™ Ethernet RF Modem – Product Manual v4.2A Configuration MaxStream provides the X-CTU Software for configuring the PKG-E Ethernet RF Modem. Other programs such as “Telnet” can also be used to establish communications. Local Network Method Install both the X-CTU Software and the Ethernet Com Port Redirector [See “Com Port... -
Page 16: Xstream Commands (Short View)
* Firmware version in which the command was introduced. All subsequent firmware versions also support the command. MORE INFORMATION: Refer to the “XStream Advanced Programming & Configuration” manual for more detailed information concerning the AT Commands supported by the XStream PKG RF Modem. © 2004 MaxStream, Inc., Confidential and Proprietary... -
Page 17: Appendix A: Agency Certifications
FCC Compliance The MaxStream XStream-PKG-E Ethernet RF Modem has been tested and certified to comply with Part 15 of the FCC Rules. In order to inherit MaxStream’s FCC Certification, compliance requires the following be stated: FCC ID: OUR9XSTREAM (for 900 MHz) or OUR-24XSTREAM (for 2.4 GHz) This device complies with Part 15 of the FCC Rules. -
Page 18: Fcc Notices
IMPORTANT: The 9XStream (900 MHz) and 24XStream (2.4 GHz) OEM Modules have been certified by the FCC for use with other products without any further certification (as per FCC section 2.1091). Changes or modifications not expressly approved by MaxStream could void the user’s authority to operate the equipment. -
Page 19: 9Xstream-Pkg-E (900 Mhz) Approved Antenna List
** Can be approved for portable applications if integrator gains approval through SAR testing MaxStream radio modems are pre-FCC approved for use in fixed base station and mobile applications. As long as the antenna is mounted at least 20 cm (8 in) from nearby persons, the application is considered a mobile application. If the antenna will be mounted closer than 20 cm to nearby persons, then the application is considered “portable”... -
Page 20: 24Xstream-Pkg-E (2.4 Ghz) Approved Antenna List
Monopole 1.9 dBi Fixed/Mobile ** 20 cm FCC-approved antennas not inventoried by MaxStream – Contact MaxStream (801-765-9885) for information. ** Can be approved for portable applications if integrator gains approval through SAR testing RF Exposure WARNING: This equipment is approved only for mobile and base station transmitting devices, separation distances of (i) 20 centimeters or more for antennas with gains <... -
Page 21: European Compliance (2.4 Ghz Only)
XStream user manual documentation and ensure the final product does not exceed the specified power ratings, antenna specifications, and/or installation requirements as specified in the user manual. Changes or modifications not expressly approved by MaxStream could void the user’s authority to operate the equipment. -
Page 22: Ic (Industry Canada) Certification
XStream-PKG-E™ Ethernet RF Modem – Product Manual v4.2A Important Note MaxStream does not list the entire set of requirements that must be met for each country. MaxStream customers assume full responsibility for learning and meeting the required guidelines for each country in their distribution market. For more information relating to European... -
Page 23: Appendix B: Additional Information
MaxStream, shipping prepaid, for prompt repair or replacement. The foregoing sets forth the full extent of MaxStreamʹs warranties regarding the Product. Repair or replacement at MaxStreamʹs option is the exclusive remedy. THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND MAXSTREAM SPECIFICALLY DISCLAIMS ALL WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. -
Page 24: Ethernet Background Information
Otherwise, the gateway is used. When combined with an IP address, the subnet mask informs the rest of the network as to what kind of subnet the device is on. Contact MaxStream Free and unlimited technical support is included with every MaxStream Radio Modem sold. Documentation: www.maxstream.net/helpdesk/...
