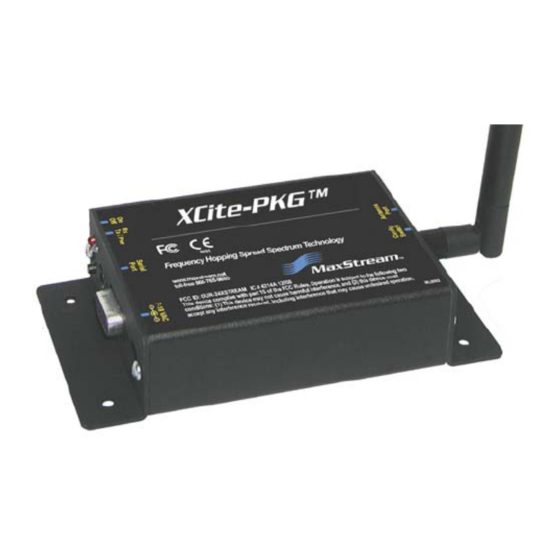

MaxStream 9XCite-PKG-R Product Manual

Rs-232/485 rf

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Distributor of Digi International: Excellent Integrated System Limited

Datasheet of XC09-038PKC-R - MODEM RF 900MHZ RS232/485

Excellent Integrated System Limited

Stocking Distributor

Click to view price, real time Inventory, Delivery & Lifecycle Information:

Digi International

XC09-038PKC-R

For any questions, you can email us directly:

sales@integrated-circuit.com

Table of Contents

Need help?

Do you have a question about the 9XCite-PKG-R and is the answer not in the manual?

Questions and answers

Summary of Contents for MaxStream 9XCite-PKG-R

Page 1 Distributor of Digi International: Excellent Integrated System Limited Datasheet of XC09-038PKC-R - MODEM RF 900MHZ RS232/485 Contact us: sales@integrated-circuit.com Website: www.integrated-circuit.com Excellent Integrated System Limited Excellent Integrated System Limited Stocking Distributor Stocking Distributor Click to view price, real time Inventory, Delivery & Lifecycle Information: Click to view price, real time Inventory, Delivery &...
Page 2 Advanced Networking Appendices Product Manual v2.1 For RF Modem Part Numbers: XC09-009PKC-R… XC09-038PKC-R… Low Power, Low Cost Boxed RF Modems by MaxStream, Inc. MaxStream 355 South 520 West, Suite 180 Lindon, UT 84042 Phone: (801) 765-9885 Fax: (801) 765-9895 rf-xperts@maxstream.net M100103 www.MaxStream.net (live chat support)
Page 3 Distributor of Digi International: Excellent Integrated System Limited Datasheet of XC09-038PKC-R - MODEM RF 900MHZ RS232/485 Contact us: sales@integrated-circuit.com Website: www.integrated-circuit.com 9XCite‐PKG‐R™ RS‐232/485 RF Modem ‐ Product Manual v2.1 [2007.01.04] © 2007 MaxStream, Inc. All rights reserved No part of the contents of this manual may be transmitted or reproduced in any form or by any means without the written permission of MaxStream, Inc. XCite™ and XCite‐PKG‐R™ are trademarks of MaxStream, Inc. Technical Support: Phone: (801) 765‐9885 Live Chat: www.maxstream.net E‐mail: rf‐xperts@maxstream.net © 2007 MaxStream, Inc. ii...
Page 4: Table Of Contents
2.3.2. Wiring Diagrams 10 3. RF Modem Operation 1-Year Warranty 38 Ordering Information 38 3.1. Serial Communications 12 Contact MaxStream 39 3.1.1. RS-232 and RS-485/422 Data Flow 12 3.1.2. Serial Data 12 3.2. Modes of Operation 13 3.2.1. Idle Mode 13 3.2.2.
Page 5: Xcite Rs-232/485 Rf Modem
Free & Unlimited Technical Support 1.1.1. Worldwide Acceptance FCC Certified (USA) [Refer to Appendix A for FCC Requirements] Systems that contain XCite Modems inherit MaxStream's FCC Certification IC (Industry Canada) Certified ISM (Industrial, Scientific & Medical) license-free 902-928 MHz frequency band Manufactured under ISO 9001:2000 registered standards © 2007 MaxStream, Inc.
Page 6: Specifications
Serial Connector DB-9 Operating Temperature 0 to 70º C (commercial) Antenna Connector RPSMA (Reverse-polarity SMA) Type Half-wave dipole whip, 6.75” (17.15cm), 2.1 dBi gain Impedance 50 ohms unbalanced Certifications (partial list) FCC Part 15.247 OUR-9XCITE Industry Canada (IC) 4214A-9XCITE © 2007 MaxStream, Inc.
Page 7: External Interface
1-02c. Antenna Port This port is a 50 Ohm RF signal connector for connecting to an RPSMA (Reverse Polarity SMA) type antenna. The RPSMA has threads on the outside of a barrel and a male center conductor. Figure 1‐03. DIP Switch Settings © 2007 MaxStream, Inc.
Page 8: Interfacing Protocol
Request-to-Send / Provides RTS flow control or enables Command Mode Command Mode Clear-to-Send Provides CTS flow control Optional power input that is connected internally to the Ring Indicator positive lead of the front power connector * The ‘Pin Reference Name’ provides an associative tag that references commands used to define pin behaviors. GPI stands for ʺGeneral Purpose Inputʺ and GPO stands for ʺGeneral Purpose Outputʺ. As an example, the CD command is used to define the behavior of GPO2 (DB‐9 pin number 1). The ‘Pin Reference Name’ is the name used when referring to XCite commands and parameters. © 2007 MaxStream, Inc. 7...
Page 9: Wiring Diagrams
Distributor of Digi International: Excellent Integrated System Limited Datasheet of XC09-038PKC-R - MODEM RF 900MHZ RS232/485 Contact us: sales@integrated-circuit.com Website: www.integrated-circuit.com 9XCite™ RS‐232/485 RF Modem – Product Manual v2.1 [2007.01.04] 2.1.2. Wiring Diagrams Figure 2‐03. RS‐232 DTE Device (male DB‐9 connector) wired to a DCE RF modem (female DB‐9) Figure 2‐04. DCE RF modem (female DB‐9 connector) wired to an RS‐232 DCE Device (male DB‐9) Sample Wireless Connection: DTE <--> DCE DCE <--> DCE Figure 2‐05. Typical wireless link between DTE and DCE devices © 2007 MaxStream, Inc. 8...
Page 10: Rs-485 (2-Wire) Operation
T/R+ (TRB) Positive Data Line Transmit serial data to and from the RF modem Optional power input that is connected internally Power to the front power connector 1, 3, 4, 6, 7 not used 2.2.2. Wiring Diagram Figure 2‐09. XCite RF Modem in an RS‐485 (2‐wire) half‐duplex environment © 2007 MaxStream, Inc. 9...
Page 11: Rs-485 (4-Wire) & Rs-422 Operation
Data Line Transmit Positive T+ (TB) Serial data sent from the RF modem Data Line Optional power input that is connected internally Power to the front power connector 1, 4, 6 not used 2.3.2. Wiring Diagrams Figure 2‐13. XCite RF Modem in an RS‐485 (4‐wire) environment © 2007 MaxStream, Inc. 10...
Page 12 When using phone cabling (RJ-11) - Pin2 in the cable maps to Pin3 on opposite end of cable and Pin1 maps to Pin4 respectively. Figure 2‐15. Male DB‐9 to RJ‐45 Adapter (yellow) Figure 2‐16. Female DB‐9 to RJ‐45 Adapter (green) An XCite RS-232/485 RF Modem ‘Accessories Kit’ is available that includes connectors that facilitate RS-485/422 and other serial communications. © 2007 MaxStream, Inc. 11...
Page 13: Rf Modem Operation
(Low‐asserted signals distinguished with a horizontal line over signal name.) 3.1.2. Serial Data Data enters the MaxStream RF modem through the DI Pin as an asynchronous serial signal. The signal should idle high when no data is being transmitted. The UART performs tasks (such as timing and parity checking) needed for communication. Serial communication consists of two UARTs which must be configured with compatible parameters (Baud rate, parity, start bits, stop bits, data bits) to have successful communication.
Page 14: Modes Of Operation
After the channel is initialized, data in the DI buffer is grouped into packets (up to 64 bytes in each packet) and is transmitted. The modem continues to transmit data packets until the DI buffer is empty. Once transmission is finished, the modem returns to Idle Mode. This progression is shown below: Figure 3‐04. Transmission of data © 2007 MaxStream, Inc. 13...
Page 15: Receive Mode
If serial data-to-transmit is stored in the DI buffer while the modem is giving precedence to Receive Mode, the data will be transmitted after the modem finishes receiving data and returns to Idle Mode. © 2007 MaxStream, Inc. 14...
Page 16: Sleep Modes
When the modem awakens to listen for data, CTS is asserted and any data received on the DI Pin is transmitted. The PWR pin is also de-asserted (low) when the modem is in Cyclic Sleep Mode. These pins are asserted each time the modem cycles © 2007 MaxStream, Inc. 15...
Page 17 The cyclic interval time defined by the SM (Sleep Mode) command must be shorter than the interval time defined by LH (Wake-up Initializer Timer) command. Figure 3‐06. Correct Configuration (LH > SM): The length of the wake‐up initializer exceeds the time interval of Cyclic Sleep. The receiver is guaranteed to detect the wake‐up initializer and receive the accompanying payload data. © 2007 MaxStream, Inc. 16...
Page 18: Command Mode
Timeout) Command, the modem automatically returns to Idle Mode. [OR] Send ATCN (Exit Command Mode) Command. For an example of programming the RF modem using AT Commands and descriptions of each config- urable parameter, refer to the "RF Modem Configuration" chapter. © 2007 MaxStream, Inc. 17...
Page 19: Rf Modem Configuration
• 900 MHz, 38400 Baud, Single Channel mode XCite Modems can operate in both Single Channel and Hopping modes. Mode is selectable using the "Function Set" dropdown list of the "XCite Configuration" tab of the MaxStream-provided X- CTU Software. The XCite Module is shipped with a unique parameter set in its memory. Parameters within the set are organized under the following categories: AT Commands &...
Page 20: Configuration Software
A shortcut for editing PC Setting values is available by clicking on any of the values. Installation Double-click the "setup_X-CTU.exe" file and follow prompts of the installation screens. This file is located in the 'software' folder of the MaxStream CD and also under the 'Downloads' section of the following web page: www.maxstream.net/support/downloads.php Setup To use the X-CTU software, a module assembly (An RF modem mounted to an interface Board) must be connected to a serial port of a PC.
Page 21: Command Reference Tables
[Read-only] Firmware Version. Read firmware version currently loaded on 0 – 0xFFFF Diagnostic radio modem. [Read-only] Write. Write parameters to radio modem’s non-volatile memory in order for changes to persist through next power-up (Special) or reset. © 2007 MaxStream, Inc. 20...
Page 22 Time before Sleep. Set time period of inactivity (no serial or RF data is sent or received) before activating Sleep Mode. 0x10 – 0xFFFF Sleep 0x64 Use with Cyclic Sleep and Serial Port Sleep [refer to SM [x 100 ms] (Low Power) (100d) Command] © 2007 MaxStream, Inc. 21...
Page 23: Automatic Dip Switch Configurations
ATCD 2 (DO3 - RX LED = low) AT Commands sent: ATCS 3 (RS-485 or RS-422 Operation) If SW1 is OFF (down) ATCD 2 (DO3 - RX LED = low) Exit AT Command Mode Always AT Commands sent: ATCN (Exit AT Command Mode) © 2007 MaxStream, Inc. 22...
Page 24: Command Descriptions
7 bits Setting 7 bits and Mark or Space parity (NB Parameter) will result in a setting of 7 bits and no 8 bits parity. Default Parameter Value: 1 Number of bytes returned: 1 © 2007 MaxStream, Inc. 23...
Page 25 Number of bytes returned: 1 CN (Exit AT Command Mode) Command <AT Command: AT Command Mode Options> CN Command allows users to explicitly exit AT Com- mand Mode and return the radio modem into Idle Mode. AT Command: CN © 2007 MaxStream, Inc. 24...
Page 26 AT Command: DT Parameter Range: 0 - 0xFFFF # of bytes returned: 2 Default Parameter Value: 0 Related Commands: ID (Modem ID), HP (Channel), MK (Address Mask) © 2007 MaxStream, Inc. 25...
Page 27 If Default Parameter Value: 0 channels used on different radio modems can be Number of bytes returned: 1 separated more they should be. This will provide for more isolation and less interference. © 2007 MaxStream, Inc. 26...
Page 28 ID (Modem VID) Parameter <Non-AT Settable Parameter: Networking> ID Parameter reads and edits the modem's VID. VID is a MaxStream-specific acronym that stands for "Vendor Identification Number". RF modems can only communicate with other modems having the same VID. Parameter Range: 0 - 0x7FFF (above this range is Read-only)
Page 29 Figure 4‐02. Incorrect Configuration (LH < SM) The length of the wake-up initializer is shorter than the time interval of Cyclic Sleep. This configu- ration is vulnerable to the receiver waking and missing the wake-up initializer (and therefore also the accompanying payload data). © 2007 MaxStream, Inc. 28...
Page 30 However, RE Command will not write the default values to non-volatile mem- ory. Unless the WR (Write) Command is issued after the RE Command, the default settings will not be saved in the event of radio modem reset or power-down. AT Command: RE Related Command: WR (Write) © 2007 MaxStream, Inc. 29...
Page 31 SL (Serial Number Low) Command <AT Command: AT Command Options> SL Command reads and reports the RF modem serial number low word. AT Command: SL Parameter Range: 0 - 0xFFFF [Read-only] # of bytes returned: 2 Related Command: SH (Serial Number High) © 2007 MaxStream, Inc. 30...
Page 32 <AT Command: (Special)> WR Command writes all configurable parameters to non-volatile mem- ory. Using WR Command saves parameters to the radio modem's persistent memory. (This means that the parameters remain in the radio modem's memory until explicitly overwritten by future uses of WR Command.) AT Command: WR © 2007 MaxStream, Inc. 31...
Page 33: Advanced Networking
Only modems with matching VIDs can communicate with each other. VID addressing ensures that radio modems ignore transmissions and receptions of XCite Radio Modems having a different VID in the same vicinity. To request a unique VID, contact MaxStream to obtain the VID Request Form.
Page 34: Channel (Athp)
Refer to the “Bit-wise AND Truth” table for the Pseudo 'C' Code that qualifies the Destination Addresses and address masks. The Pseudo Code uses the bit-wise "AND" operation, "&". This operation is performed bit by bit on each of the 16 bits in the TXDT, RXDT and RXMK parameters. © 2007 MaxStream, Inc. 33...
Page 35 Destination Address of the Receiver, or if it matches the Receiver Address Mask, the packet is accepted. Otherwise, the packet is discarded. Note:When performing this comparison, any "0" values in the Receiver Address Mask are treated as irrelevant and are ignored. © 2007 MaxStream, Inc. 34...
Page 36: Appendix A: Agency Certifications
The XCite RS-232/485 RF Modem complies with Part 15 of the FCC rules and regulations. Compli- ance with the labeling requirements, FCC notices and antenna usage guidelines is required. In order to operate under MaxStream’s FCC Certification, OEMs/integrators must comply with the following regulations: The OEM/integrator must ensure that the text provided with this device [Figure A-01] is placed on the outside of the final product and within the final product operation manual.
Page 37: Limited Modular Approval
Section 15.203 (unique antenna connectors) and Section 15.247 (emissions). Fixed Base Station and Mobile Applications MaxStream RF Modems are pre-FCC approved for use in fixed base station and mobile applica- tions. When the antenna is mounted at least 20cm (8") from nearby persons, the application is considered a mobile application.
Page 38: Ic (Industry Canada) Certification
900 MHz Radio Modems (including "Mag Mount", "Dome", "Multi-path" and "Panel" antennas). Because of the large number of approved antennas, MaxStream requests that you send specific information about an antenna you would like to use with the modem and MaxStream will evaluate whether the antenna is covered under our FCC filing.
Page 39: Appendix B: Additional Information
1-year from the date of purchase. In the event of a product failure due to materials or workmanship, MaxStream will repair or replace the defec- tive product. For warranty service, return the defective product to MaxStream, shipping prepaid, for prompt repair or replacement.
Page 40: Contact Maxstream
Datasheet of XC09-038PKC-R - MODEM RF 900MHZ RS232/485 Contact us: sales@integrated-circuit.com Website: www.integrated-circuit.com 9XCite‐PKG‐R™ RS‐232/485 RF Modem – Product Manual v2.1 [2007.01.04] Contact MaxStream Free and unlimited technical support is included with every MaxStream Radio Modem sold. For the best in wireless data solutions and support, please use the following resources: Documentation: www.maxstream.net/support/downloads.php Technical Support: Phone.
