GC 363 R / SF Original operating instructions for device version 0400 Contents Symbols and illustrations .................3 Abbreviations .......................3 Product liability....................3 Safety ......................3 Intended use ........................3 Safety notices ........................4 Safety conscious working ....................5 Environmentally conscious working ................5 Description ....................5 Supplied by GEZE .......................7 Work to be done before installation ..........8...
Intended use The combined sensor GC 363 may only be used to actuate and safeguard automatic sliding doors and circular sliding doors with GEZE drives. The minimum object size corresponds to the reference object CA according to DIN 18650 or 16005 both upright and lying down. The sensor can be used to secure automatic sliding doors against impact and trapping of the human body.
à Make sure that the door control cover is fitted correctly and earthed. à If unauthorised changes are made to the system, GEZE cannot be held liable in any way whatsoever for any resulting damage, and the approval for use in escape and rescue routes ceases.

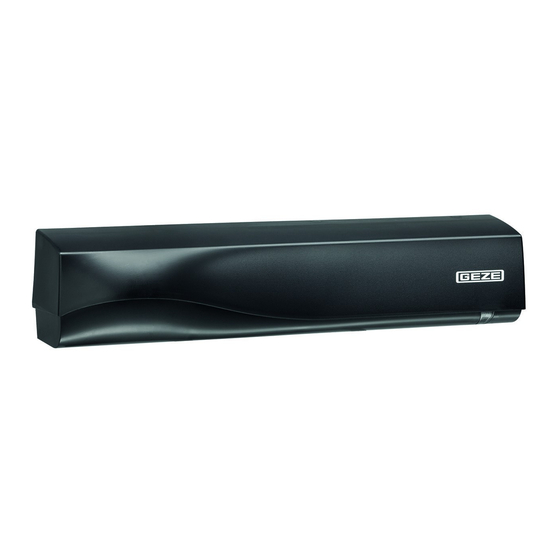

Description The combined detectors GC 363 R / SF have a radar field for detecting movement and an infrared field for protection. It is not possible for several systems to influence each other and result in a hazard.
Page 6
Description GC 363 R / SF Cover AIR lens (receiver) GC 363 S interface (optional Radar antenna (wide field) accessory for GC 363 SF) Radar antenna (narrow field) Setting button (grey) Width adjustment of the AIR Button for setting the angle of...
GC 363 R / SF Work to be done before installation Protection sensor One combined detector per passage direction is installed on automatic sliding doors. The protection sensor GC 339 may be required in addition for larger opening widths. See installation instructions GC 339.
Installation GC 363 R / SF Installation Installation without accessories Avoid extreme vibrations. Do not cover the sensor. Keep away from fluorescent lamps. Keep away from moving objects. Avoid highly reflective objects in the infrared range. DIN 7981 8 × ½“...
GC 363 R / SF Installation Cabling Heed wiring diagrams for the sliding door drives. GC 363 R GC 363 SF + GC 363 SF The optional interface GC 363 S is exclusively for use with the GC 363 SF combined detector. The interface permits several combined detectors to...
Commissioning GC 363 R / SF Commissioning Radar detector Set the detection field and sensitivity of the radar movement detector as per AutSchR: à Scanned field = opening width x 1.5 m à Movement speed from 10 cm/s must be detected à...
Page 17
GC 363 R / SF Commissioning Replacing radar antennas (narrow and wide)
Commissioning GC 363 R / SF Protection area The position of the IR curtain in relation to the door can be checked using an infrared detector. Activate 4 visible Adapt the angle of the AIR Yellow LED is flashing spots.* curtain.
GC 363 R / SF Commissioning Testing the emission area. à The whole width of the door must be covered. à Test the width of the required area using a piece of paper (DIN A4), since the infrared detector scans the whole emission area.
Configuration possibilities GC 363 R / SF Teaching Before starting teaching, move out of the infrared field. Before leaving the installation, test the correct sensor installation. Teaching 2 sec. Teaching with door movement 4 sec. Configuration possibilities Using the LCD menu 6.1.1...
GC 363 R / SF Settings 6.1.3 Changing ZIP code 6.1.4 Changing and storing values AIR:Filter AIR:Filter AIR:Filter >2.8m 4 <2.8m 2 >2.8m 4 6.1.5 Checking values using the remote control Settings Default settings Choose the following default settings or configure the settings yourself (chapter 6 on page 20).
GC 363 R / SF Further installation situations Lintel installation According to DIN 18650/EN 16005, the distance between the inner light curtains must not exceed 200 mm. Example configuration: à Light curtain (right-hand side) set to –5° à Combined detector near the...
Maintenance GC 363 R / SF Maintenance The visual parts must be cleaned at least once a year. Do not use aggressive cleaning agents or chemicals. Error messages and troubleshooting Effect Cause Elimination display The ORANGE The sensor has de- Replace the sensor.
Page 29
GC 363 R / SF Error messages and troubleshooting Effect Cause Elimination display – The ORANGE The sensor has a Switch the power supply off LED is on memory problem. and on. Replace the sensor if the ORANGE LED lights up again.
Page 30
Error messages and troubleshooting GC 363 R / SF Effect Cause Elimination display – The LED and the Check the wiring. LCD display are – The responses Check initial configuration. of the door and Check the wiring. the LED do not correlate –...
Page 31
GC 363 R / SF Technical data Technical data Power supply: 12 V to 24 V, AC ±10 %; 12 V to 30 V, DC ±10 % Power consump- < 2.5 W tion: Installation height: 2 m to 3.5 m Temperature –25 °C to +55 °C, 0 to 95 % relative humidity, non-condensing...
Page 32
Technical data GC 363 R / SF Movement Presence Test input Signal voltage: Low: < 1 V, High: > 10 V (max. 30 V) Response time to test query: < 5 ms (typ.) Interference influ- < 70 dB ences Conformity to EN 12978 standard (GC 363 EN ISO 13849-1: 2008 PL «c» CAT.2...
Page 33
GC 363 R / SF Accessories / Spare parts Accessories / Spare parts Material no. Ceiling bracket 151256 151253 (black) Ceiling installation kit 151254 (white) Weather canopy 158250 151361 GC 363 S interface (for GC 363 SF only) Curved adaptor 151255...
