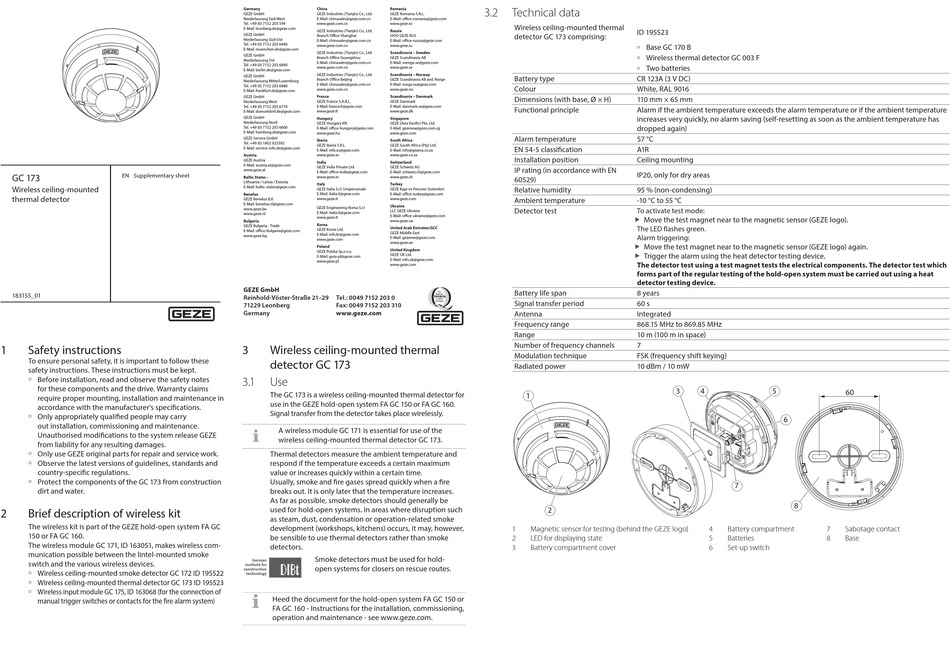

GEZE GC 173 Supplementary Sheet

GC 173 EN Supplementary sheet
Wireless ceiling-mounted
thermal detector
183155_01
1 Safety instructions
To ensure personal safety, it is important to follow these
safety instructions. These instructions must be kept.
ú Before installation, read and observe the safety notes
for these components and the drive. Warranty claims
require proper mounting, installation and maintenance in
accordance with the manufacturer's specifications.
ú Only appropriately qualified people may carry
out installation, commissioning and maintenance.
Unauthorised modifications to the system release GEZE
from liability for any resulting damages.
ú Only use GEZE original parts for repair and service work.
ú Observe the latest versions of guidelines, standards and
country-specific regulations.
ú Protect the components of the GC 173 from construction
dirt and water.
2 Brief description of wireless kit
The wireless kit is part of the GEZE hold-open system FA GC
150 or FA GC 160.
The wireless module GC 171, ID 163051, makes wireless com-
munication possible between the lintel-mounted smoke
switch and the various wireless devices.
ú Wireless ceiling-mounted smoke detector GC 172 ID 195522
ú Wireless ceiling-mounted thermal detector GC 173 ID 195523
ú Wireless input module GC 175, ID 163068 (for the connection of
manual trigger switches or contacts for the fire alarm system)
Germany China Romania
GEZE GmbH GEZE Industries (Tianjin) Co., Ltd. GEZE Romania S.R.L.
Niederlassung Süd-West E-Mail: chinasales@geze.com.cn E-Mail: office-romania@geze.com
Tel. +49 (0) 7152 203 594 www.geze.com.cn www.geze.ro
E-Mail: leonberg.de@geze.com
GEZE Industries (Tianjin) Co., Ltd. Russia
GEZE GmbH
Branch Office Shanghai OOO GEZE RUS
Niederlassung Süd-Ost
E-Mail: chinasales@geze.com.cn E-Mail: office-russia@geze.com
Tel. +49 (0) 7152 203 6440
www.geze.com.cn www.geze.ru
E-Mail: muenchen.de@geze.com
GEZE Industries (Tianjin) Co., Ltd. Scandinavia – Sweden
GEZE GmbH
Branch Office Guangzhou GEZE Scandinavia AB
Niederlassung Ost
E-Mail: chinasales@geze.com.cn E-Mail: sverige.se@geze.com
Tel. +49 (0) 7152 203 6840
www.geze.com.cn www.geze.se
E-Mail: berlin.de@geze.com
Scandinavia – Norway
GEZE Industries (Tianjin) Co., Ltd.
GEZE GmbH
Branch Office Beijing GEZE Scandinavia AB avd. Norge
Niederlassung Mitte/Luxemburg
E-Mail: chinasales@geze.com.cn E-Mail: norge.se@geze.com
Tel. +49 (0) 7152 203 6888
www.geze.com.cn www.geze.no
E-Mail: frankfurt.de@geze.com
France Scandinavia – Denmark
GEZE GmbH
GEZE France S.A.R.L. GEZE Danmark
Niederlassung West
Tel. +49 (0) 7152 203 6770 E-Mail: france.fr@geze.com E-Mail: danmark.se@geze.com
E-Mail: duesseldorf.de@geze.com www.geze.fr www.geze.dk
GEZE GmbH
Hungary Singapore
Niederlassung Nord
GEZE Hungary Kft. GEZE (Asia Pacific) Pte, Ltd.
Tel. +49 (0) 7152 203 6600
E-Mail: office-hungary@geze.com E-Mail: gezesea@geze.com.sg
E-Mail: hamburg.de@geze.com
www.geze.hu www.geze.com
GEZE Service GmbH
Iberia South Africa
Tel. +49 (0) 1802 923392
GEZE Iberia S.R.L. GEZE South Africa (Pty) Ltd.
E-Mail: service-info.de@geze.com
E-Mail: info.es@geze.com E-Mail: info@gezesa.co.za
Austria www.geze.es www.geze.co.za
GEZE Austria
India Switzerland
E-Mail: austria.at@geze.com
GEZE India Private Ltd. GEZE Schweiz AG
www.geze.at
E-Mail: office-india@geze.com E-Mail: schweiz.ch@geze.com
Baltic States – www.geze.in www.geze.ch
Lithuania / Latvia / Estonia
Italy Turkey
E-Mail: baltic-states@geze.com
GEZE Italia S.r.l. Unipersonale GEZE Kapı ve Pencere Sistemleri
Benelux E-Mail: italia.it@geze.com E-Mail: office-turkey@geze.com
www.geze.it www.geze.com
GEZE Benelux B.V.
E-Mail: benelux.nl@geze.com
Ukraine
GEZE Engineering Roma S.r.l
www.geze.be
LLC GEZE Ukraine
E-Mail: italia.it@geze.com
www.geze.nl
E-Mail: office-ukraine@geze.com
www.geze.it
Bulgaria www.geze.ua
Korea
GEZE Bulgaria - Trade
United Arab Emirates/GCC
GEZE Korea Ltd.
E-Mail: office-bulgaria@geze.com
GEZE Middle East
E-Mail: info.kr@geze.com
www.geze.bg
E-Mail: gezeme@geze.com
www.geze.com
www.geze.ae
Poland
United Kingdom
GEZE Polska Sp.z o.o.
GEZE UK Ltd.
E-Mail: geze.pl@geze.com
E-Mail: info.uk@geze.com
www.geze.pl
www.geze.com
GEZE GmbH
Reinhold-Vöster-Straße 21–29 Tel.: 0049 7152 203 0
71229 Leonberg Fax: 0049 7152 203 310
Germany www.geze.com
3 Wireless ceiling-mounted thermal
detector GC 173
3. 1 Use
The GC 173 is a wireless ceiling-mounted thermal detector for
use in the GEZE hold-open system FA GC 150 or FA GC 160.
Signal transfer from the detector takes place wirelessly.
A wireless module GC 171 is essential for use of the
wireless ceiling-mounted thermal detector GC 173.
Thermal detectors measure the ambient temperature and
respond if the temperature exceeds a certain maximum
value or increases quickly within a certain time.
Usually, smoke and fire gases spread quickly when a fire
breaks out. It is only later that the temperature increases.
As far as possible, smoke detectors should generally be
used for hold-open systems. In areas where disruption such
as steam, dust, condensation or operation-related smoke
development (workshops, kitchens) occurs, it may, however,
be sensible to use thermal detectors rather than smoke
detectors.
Smoke detectors must be used for hold-
German
institute for
open systems for closers on rescue routes.
construction
technology
Heed the document for the hold-open system FA GC 150 or
FA GC 160 - Instructions for the installation, commissioning,
operation and maintenance - see www.geze.com.
3.2 Technical data
Wireless ceiling-mounted thermal
ID 195523
detector GC 173 comprising:
Base GC 170 B
ú
Wireless thermal detector GC 003 F
ú
Two batteries
ú
Battery type CR 123A (3 V DC)
Colour White, RAL 9016
Dimensions (with base, Ø × H) 110 mm × 65 mm
Functional principle Alarm if the ambient temperature exceeds the alarm temperature or if the ambient temperature
increases very quickly, no alarm saving (self-resetting as soon as the ambient temperature has
dropped again)
Alarm temperature 57 °C
EN 54-5 classification A1R
Installation position Ceiling mounting
IP rating (in accordance with EN
IP20, only for dry areas
60529)
Relative humidity 95 % (non-condensing)
Ambient temperature -10 °C to 55 °C
Detector test To activate test mode:
Move the test magnet near to the magnetic sensor (GEZE logo).
X
The LED flashes green.
Alarm triggering:
Move the test magnet near to the magnetic sensor (GEZE logo) again.
X
Trigger the alarm using the heat detector testing device.
X
The detector test using a test magnet tests the electrical components. The detector test which
forms part of the regular testing of the hold-open system must be carried out using a heat
detector testing device.
Battery life span 8 years
Signal transfer period 60 s
Antenna Integrated
Frequency range 868.15 MHz to 869.85 MHz
Range 10 m (100 m in space)
Number of frequency channels 7
Modulation technique FSK (frequency shift keying)
Radiated power 10 dBm / 10 mW
1
2
1 Magnetic sensor for testing (behind the GEZE logo)
2 LED for displaying state
3 Battery compartment cover
3 4 5
60
6
7
8
4 Battery compartment 7 Sabotage contact
5 Batteries 8 Base
6 Set-up switch
