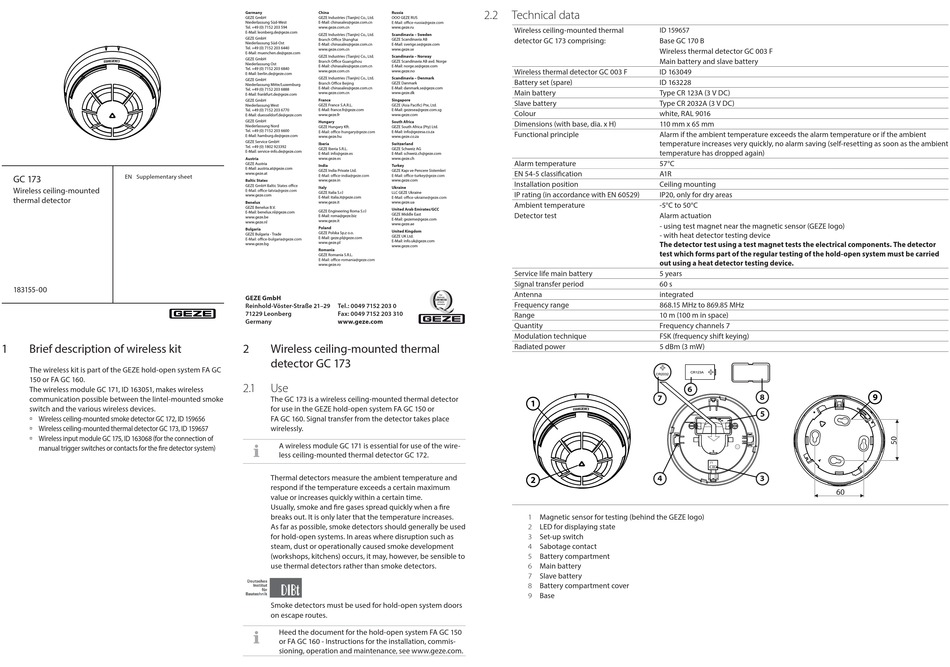

GEZE GC 173 Supplementary Sheet

EN Supplementary sheet
GC 173
Wireless ceiling-mounted
thermal detector
183155-00
1 Brief description of wireless kit
The wireless kit is part of the GEZE hold-open system FA GC
150 or FA GC 160.
The wireless module GC 171, ID 163051, makes wireless
communication possible between the lintel-mounted smoke
switch and the various wireless devices.
à Wireless ceiling-mounted smoke detector GC 172, ID 159656
à Wireless ceiling-mounted thermal detector GC 173, ID 159657
à Wireless input module GC 175, ID 163068 (for the connection of
manual trigger switches or contacts for the fire detector system)
Germany China Russia
GEZE GmbH GEZE Industries (Tianjin) Co., Ltd. OOO GEZE RUS
Niederlassung Süd-West E-Mail: chinasales@geze.com.cn
Tel. +49 (0) 7152 203 594 www.geze.com.cn www.geze.ru
E-Mail: leonberg.de@geze.com
GEZE Industries (Tianjin) Co., Ltd. Scandinavia – Sweden
GEZE GmbH
GEZE Scandinavia AB
Niederlassung Süd-Ost
E-Mail: chinasales@geze.com.cn E-Mail: sverige.se@geze.com
Tel. +49 (0) 7152 203 6440
www.geze.com.cn www.geze.se
E-Mail: muenchen.de@geze.com
GEZE Industries (Tianjin) Co., Ltd. Scandinavia – Norway
GEZE GmbH
GEZE Scandinavia AB avd. Norge
Niederlassung Ost
E-Mail: chinasales@geze.com.cn E-Mail: norge.se@geze.com
Tel. +49 (0) 7152 203 6840
www.geze.com.cn www.geze.no
E-Mail: berlin.de@geze.com
GEZE Industries (Tianjin) Co., Ltd. Scandinavia – Denmark
GEZE GmbH
GEZE Danmark
Niederlassung Mitte/Luxemburg
E-Mail: chinasales@geze.com.cn E-Mail: danmark.se@geze.com
Tel. +49 (0) 7152 203 6888
www.geze.com.cn www.geze.dk
E-Mail: frankfurt.de@geze.com
GEZE GmbH France Singapore
Niederlassung West GEZE France S.A.R.L.
Tel. +49 (0) 7152 203 6770 E-Mail: france.fr@geze.com E-Mail: gezesea@geze.com.sg
E-Mail: duesseldorf.de@geze.com www.geze.fr www.geze.com
GEZE GmbH
Hungary South Africa
Niederlassung Nord
GEZE Hungary Kft. GEZE South Africa (Pty) Ltd.
Tel. +49 (0) 7152 203 6600
E-Mail: info@gezesa.co.za
E-Mail: hamburg.de@geze.com
www.geze.hu www.geze.co.za
GEZE Service GmbH
Iberia Switzerland
Tel. +49 (0) 1802 923392
GEZE Iberia S.R.L. GEZE Schweiz AG
E-Mail: service-info.de@geze.com
E-Mail: info@geze.es E-Mail: schweiz.ch@geze.com
www.geze.es www.geze.ch
Austria
GEZE Austria
India Turkey
E-Mail: austria.at@geze.com
GEZE India Private Ltd. GEZE Kapı ve Pencere Sistemleri
www.geze.at
www.geze.in www.geze.com
Baltic States
Italy Ukraine
GEZE Italia S.r.l LLC GEZE Ukraine
www.geze.com
E-Mail: italia.it@geze.com
Benelux www.geze.it www.geze.ua
GEZE Benelux B.V.
United Arab Emirates/GCC
GEZE Engineering Roma S.r.l
E-Mail: benelux.nl@geze.com
GEZE Middle East
E-Mail: roma@geze.biz
www.geze.be
E-Mail: gezeme@geze.com
www.geze.it
www.geze.nl
www.geze.ae
Poland
Bulgaria
United Kingdom
GEZE Polska Sp.z o.o.
GEZE Bulgaria - Trade
GEZE UK Ltd.
E-Mail: geze.pl@geze.com
E-Mail: info.uk@geze.com
www.geze.pl
www.geze.bg
www.geze.com
Romania
GEZE Romania S.R.L.
www.geze.ro
GEZE GmbH
Reinhold-Vöster-Straße 21–29 Tel.: 0049 7152 203 0
71229 Leonberg Fax: 0049 7152 203 310
Germany www.geze.com
2 Wireless ceiling-mounted thermal
detector GC 173
2. 1 Use
The GC 173 is a wireless ceiling-mounted thermal detector
for use in the GEZE hold-open system FA GC 150 or
FA GC 160. Signal transfer from the detector takes place
wirelessly.
A wireless module GC 171 is essential for use of the wire-
less ceiling-mounted thermal detector GC 172.
Thermal detectors measure the ambient temperature and
respond if the temperature exceeds a certain maximum
value or increases quickly within a certain time.
Usually, smoke and fire gases spread quickly when a fire
breaks out. It is only later that the temperature increases.
As far as possible, smoke detectors should generally be used
for hold-open systems. In areas where disruption such as
steam, dust or operationally caused smoke development
(workshops, kitchens) occurs, it may, however, be sensible to
use thermal detectors rather than smoke detectors.
Smoke detectors must be used for hold-open system doors
on escape routes.
Heed the document for the hold-open system FA GC 150
or FA GC 160 - Instructions for the installation, commis-
sioning, operation and maintenance, see www.geze.com.
2.2 Technical data
Wireless ceiling-mounted thermal ID 159657
detector GC 173 comprising: Base GC 170 B
Wireless thermal detector GC 003 F
Main battery and slave battery
Wireless thermal detector GC 003 F ID 163049
Battery set (spare) ID 163228
Main battery Type CR 123A (3 V DC)
Slave battery Type CR 2032A (3 V DC)
Colour white, RAL 9016
Dimensions (with base, dia. x H) 110 mm x 65 mm
Functional principle Alarm if the ambient temperature exceeds the alarm temperature or if the ambient
temperature increases very quickly, no alarm saving (self-resetting as soon as the ambient
temperature has dropped again)
Alarm temperature 57°C
EN 54-5 classification A1R
Installation position Ceiling mounting
IP rating (in accordance with EN 60529) IP20, only for dry areas
Ambient temperature -5°C to 50°C
Detector test Alarm actuation
- using test magnet near the magnetic sensor (GEZE logo)
- with heat detector testing device
The detector test using a test magnet tests the electrical components. The detector
test which forms part of the regular testing of the hold-open system must be carried
out using a heat detector testing device.
Service life main battery 5 years
Signal transfer period 60 s
Antenna integrated
Frequency range 868.15 MHz to 869.85 MHz
Range 10 m (100 m in space)
Quantity Frequency channels 7
Modulation technique FSK (frequency shift keying)
Radiated power 5 dBm (3 mW)
CR2032
7
1
2 4
1 Magnetic sensor for testing (behind the GEZE logo)
2 LED for displaying state
3 Set-up switch
4 Sabotage contact
5 Battery compartment
6 Main battery
7 Slave battery
8 Battery compartment cover
9 Base
CR123A
6
8
5
3
60
9
