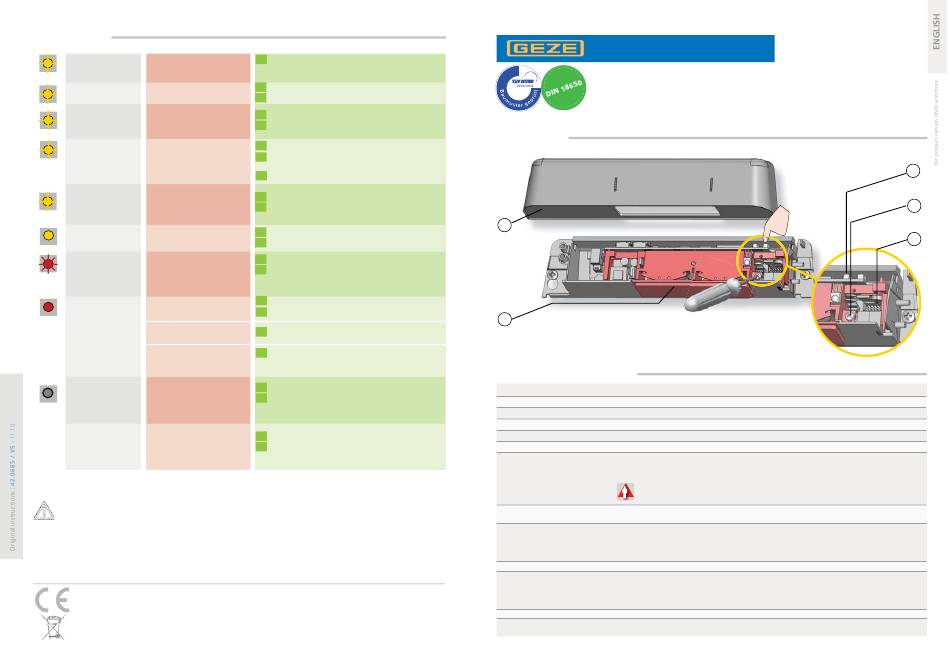

GEZE GC 333 C Quick Start Manual

LED-SIGNALS
The ORANGE LED The sensor goes into
fl ashes every second. security mode.
The ORANGE LED The sensor signals
an internal fault.
fl ashes 1 x.
1
The ORANGE LED Irregularities in the
fl ashes 2 x. power supply
2
The sensor receives
The ORANGE LED
fl ashes 4 x. not enough IR-energy.
4
The ORANGE LED The sensor receives
too much IR-energy.
fl ashes 5 x.
5
The ORANGE LED The sensor encounters
is on. a memory problem.
The RED LED fl ashes
The sensor sees the door
quickly after an
during the assisted setup.
assisted setup.
The sensor vibrates.
The RED LED
lights up
sporadically.
The sensor sees the door.
The sensor is disturbed
by the rain.
The LED is off.
The reaction of
the door does not
correspond to the
LED-signal.
SAFETY INSTRUCTIONS
The manufacturer of the door system is responsible for carrying out a risk assessment and installing the sensor and the door system
in compliance with applicable national and international regulations and standards on door safety and if applicable, the machinery
directive 2006/42/EC.
Only trained and qualifi ed personnel may install and set-up the sensor.
The warranty is void if unauthorized repairs are made or attempted by unauthorized personnel.
Avoid touching any electronic and optical components.
Id. No. 127109 Modifi cation level 05 Drawing No. 70706-9-9502
GEZE hereby declares that the GC 333 C is in conformity with the basic requirements and the other relevant provisions of the
standards 2004/108/EC and 2006/42/EC.
Notifi ed Body for EC inspection: 0044 - TÜV NORD CERT GmbH, Langemarckstr. 20, D-45141 Essen
Leonberg, November 2010 Hermann Alber, Authorized representative
Only for EC countries: According the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment (WEEE)
GEZE GmbH / Reinhold-Vöster-Straße 21-29 / 71229 Leonberg / Germany / Tel. ++49(0)7152-203-0 / Fax ++49(0)7152-203-310
1
Cut and restore power supply.
1 Cut and restore power supply.
If orange LED fl ashes again, replace sensor.
2
1
Check power supply.
2 Check wiring.
1
Check the angle of the IR-curtains.
Adapt background if necessary
2
(fl oor is too absorbing).
Launch a new assisted setup.
3
1 Check the angle of the IR-curtains.
Adapt background if necessary
2
(fl oor is too refl ective).
1
Cut and restore power supply.
2 If orange LED lights up again, replace sensor.
1
Check the angle of the IR-curtains.
2
Launch a new assisted setup.
Attention: Do not stand in the detection fi eld!
1
Check if the sensor is fastened fi rmly.
2
Check position of prism and cover.
1
Launch an assisted setup and adjust the IR angle.
Increase the IR-immunity fi lter by remote control.*
1
1 Check connections to test output.
If your door controller is not able to test the sensor,
2
connect the red and blue cable to power supply.*
1 Check output confi guration setting.
Switch value 1 (P) to 2 (A) or 2 to 1 by remote
2
control.
*excludes DIN18650-conformity of the door equipment
Printed in Germany Subject to change without notice
Please keep for further use
Designed for colour printing
Other use of the device is outside the permitted purpose
and can not be guaranteed by the manufacturer.
The manufacturer cannot be held responsible for incorrect
installations or inappropriate adjustments of the sensor.
DESCRIPTION
2
1
1. IR-prism
(50 cm RIGHT HIGH)
2. cover
TECHNICAL SPECIFICATIONS
Supply voltage: 12 V - 24 V AC +/-10% ; 12 V - 30 V DC -5%/+10%
Power consumption: < 3 W
Mounting height: 1.8 m to 2.7 m
Sensitivity of the test input: < 1 V : Log. L; > 10 V: Log. H (max. 30 V)
Temperature range: -25 °C to +55 °C
Degree of protection: IP54
Norm conformity: EMC 2004/108/EC; MD 2006/42/EC
EN ISO 13849-1:2008 Performance Level «c» CAT. 2; EN 12978
(under the condition that the door control system monitors the sensor at least once per door cycle)
Detection mode:
Presence
Typical response time: <128 ms (max. 500 ms)
Technology: Active infrared (wave length: 880 nm) with background analysis
Spot diameter: 0.1 m max.
Number of spots: 6 by curtain
Number of curtains: 1 or 2 (adjustable)
Angle: From -4 ° to +4 ° (adjustable)
Output:
Solid-state-relay (free of potential, free of polarity)
Max. contact current: 100 mA
Max. contact voltage: 42 V AC/DC
Hold-open time:
0.3 s or 1 s (not adjustable)
Response time on test request: Typical: < 15 ms (max. 25 ms)
GC 333 C
Safety sensor
for automatic revolving doors
3. push buttons
4. IR-curtain ajustment screw
5. main connector
Specifi cations are subject to changes without prior notice.
Measured in optimal conditions.
3
4
5
