GEZE WRM-24 Installation And Service Instructions

GEZE
wireless program
24 V window drives
195411-07
1 Safety notices
It is important to follow these instructions for the safety of persons.
These instructions must be kept.
à Before installation, read and observe the safety notes for these
components and the drive. Warranty claims require proper
mounting, installation and maintenance in accordance with the
manufacturer's specifications.
à Only appropriately qualified people may carry out installation,
commissioning and maintenance. Unauthorised modifications to
the system release GEZE from liability for any resulting damages.
à Only use GEZE original parts for repair and service work.
à Observe the latest versions of guidelines, standards and country-
specific regulations.
à Protect the components of the GEZE wireless program 24 V
window drives from construction dirt and water.
2 Intended use
The GEZE wireless program 24 V window drives is used for activating
GEZE 24 V window drives. Wire-bound switches and push buttons
can be added or replaced.
EN Installation and service
instructions

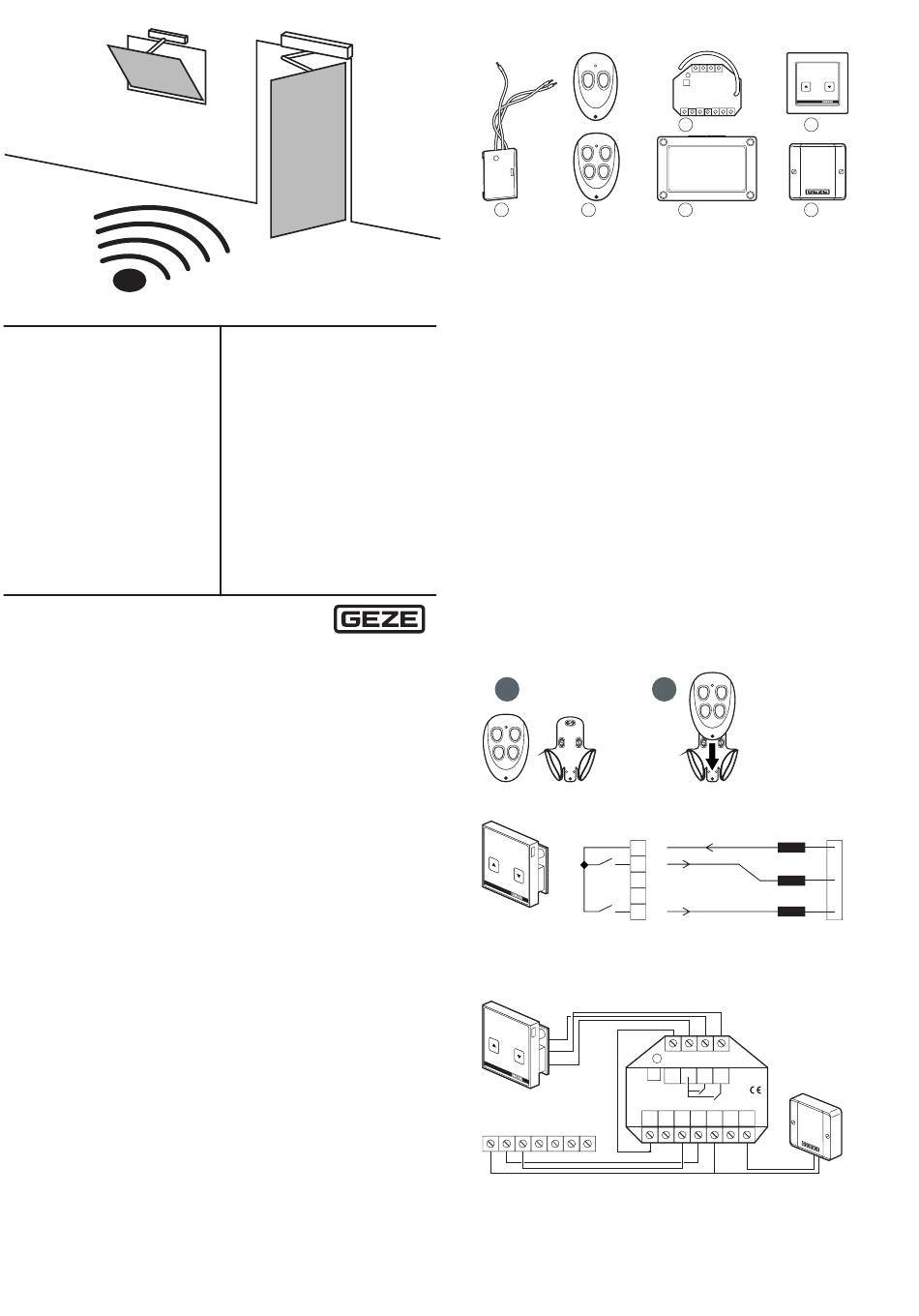

3 Wireless program 24 V window drives
1 2
1 Transmitting module WTM (Id. No. 131212)
2 Remote control WTH-2 (ID no. 131210)
Remote control WTH-4 (ID no. 131211)
3 Receiving module WRM-24 (ID no. 131213)
4 Receiving module WRM-24B (Id. No. 131214)
5 Vent switch LTA-24-AZ, flush-mounted (Id. No. 129393)
6 e.g. power supply NT 1,5 A-24 V (ID no. 151425)
4 Functional description
4. 1 "OPEN" / "CLOSE" command
In order to open or close windows press the correspondingly
X
taught push button on the transmitter.
4.2 "STOP" command
In order to stop windows during opening or closing press
X
the corresponding opposite button on the transmitter.
5 Mounting / connection
5. 1 Connecting the radio transmitter
1
Remote control with wall holder
1 COM
3 CLOSE
2 OPEN
LTA-24-AZ
Connecting the transmitting module WTM to the vent switch LTA-24-AZ
5.2 Connecting the receiving module
CLOSE
OPEN
Optional cabling, if already
existing push buttons available
B
Smoke and heat extraction control panel / vent switch
1 2 3 4 5 6 7
Connecting the receiving module WRM-24 to the smoke and heat
extraction control panel
3 5
4 6
2
BN
GN
YE
1 In2 In1
Power supply *
A Out2 Out1 1 2 2
CLOSE OPEN
24V
GND
