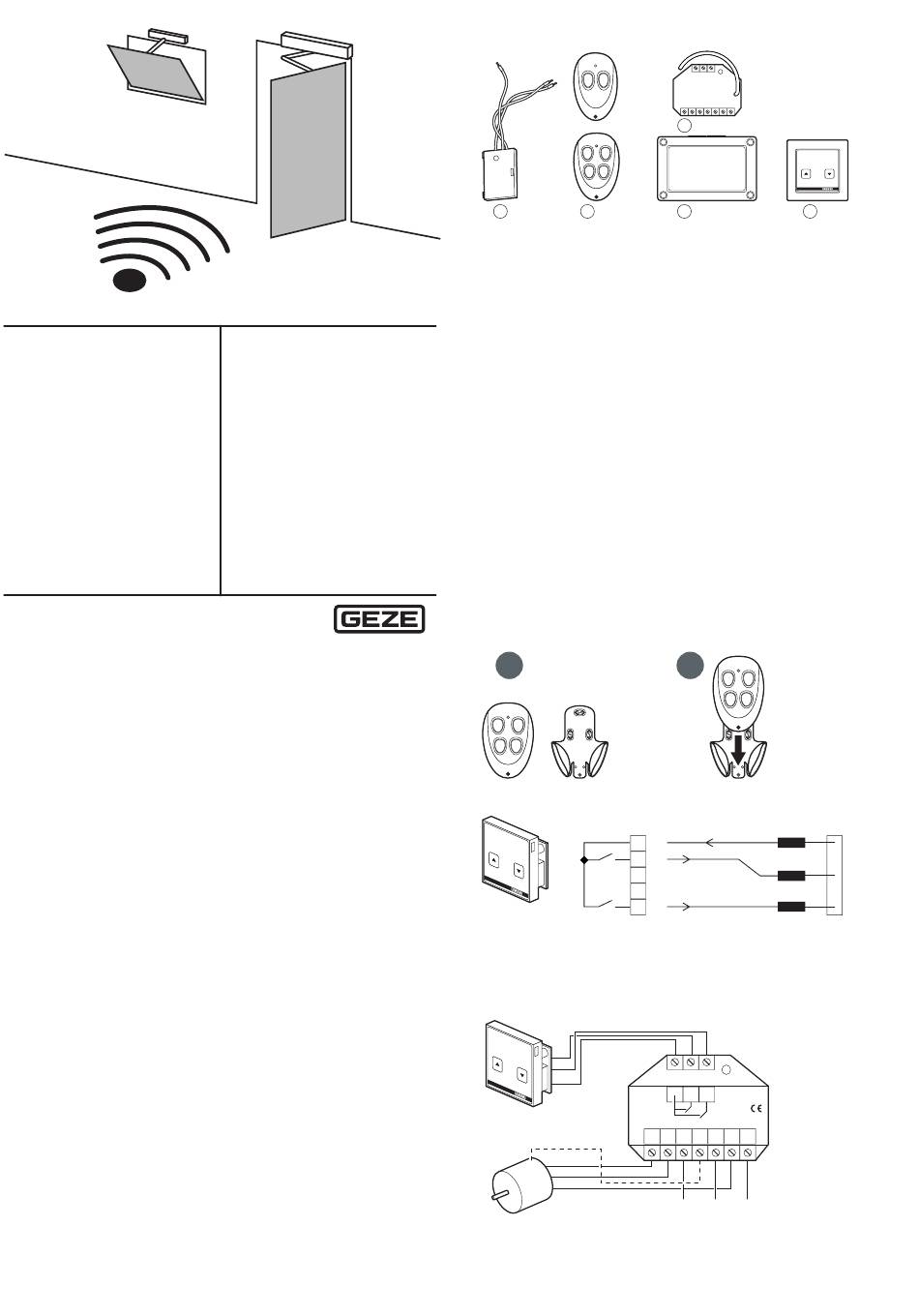

GEZE WRM-230 Installation And Service Instructions

GEZE wireless
programme
230 V window drives
132673-06
1 Safety notices
It is important to follow these instructions for the safety of persons.
These instructions must be kept.
à Before installation, read and observe the enclosed safety notes.
Warranty claims require proper mounting, installation and main-
tenance in accordance with the manufacturer's specifications.
à Only appropriately qualified people may carry out installation,
commissioning and maintenance. Unauthorised modifications
to the system release GEZE from liability for any resulting
damages.
à Ensure that only a trained electrician completes the connection
to the mains voltage. The power connection and protective
earth connection test must be carried out in accordance DIN
VDE 0100-610.
à Only use GEZE original parts for repair and service work.
à Observe the latest versions of guidelines, standards and country-
specific regulations.
à Protect the components of the GEZE wireless program 230 V
window drives from construction dirt and water.
2 Intended use
The GEZE wireless program 230 V window drives is used for
activating GEZE 230 V window drives. Wire-bound switches and
push buttons can be added or replaced.
EN Installation and service
instructions
3 Wireless program 230 V window drives
1 2
1 Transmitting module WTM (Id. No. 131212)
2 Remote control WTH-2 (ID no. 131210)
Remote control WTH-4 (ID no. 131211)
3 Receiving module WRM-230 (ID no. 131215)
4 Receiving module WRM-230B (ID no. 131216)
5 Vent switch LTA-24-AZ, flush-mounted (Id. No. 129393)
4 Functional description
4. 1 "OPEN" / "CLOSE" command
In order to open or close windows press the correspondingly
X
taught push button on the transmitter.
4.2 "STOP" command
In order to stop windows during opening or closing press
X
the corresponding opposite button on the transmitter.
5 Mounting / connection
5. 1 Connecting the radio transmitter
1
Remote control with wall holder
1 COM
3 CLOSE
2 OPEN
LTA-24-AZ
Connecting the radio transmitting module WTM to the vent switch
LTA-24-AZ
5.2 Connecting the receiving module
CLOSE
OPEN
Optional cabling, if already existing
push buttons available
Out2
*
PE
230 V motor
CLOSE
OPEN
N
Connecting the receiving module WRM-230 to the 230 V motor
3
4 5
2
BN
GN
YE
In2 In1
Out1 L PE PE N N
L PE N
