Summary of Contents for GEZE GC 304 R
- Page 1 GC 304 R 130830-03...
-
Page 2: Table Of Contents
GC 304 R Contents Symbols and illustrations .................3 Product liability ....................3 Safety ......................3 Intended use........................3 Safety instructions ......................4 Safety-conscious working ....................5 Environmentally conscious working ................5 Description ....................5 Supplied by GEZE ......................6 Work to be done before installation ..........6 Installing the drive ......................6 Positioning the sensor .....................7... -
Page 3: Symbols And Illustrations
GC 304 R Safety Symbols and illustrations Warning notices In these instructions, warning notices are used to warn against material damage and injuries. Always read and observe these warning notices. Observe all measures marked with the warning symbol and warning word. -
Page 4: Safety Instructions
à The country-specific laws and regulations are to be observed during safety-related tests. à If unauthorised changes are made to the system, GEZE cannot be held liable in any way whatsoever for any resulting damage, and the approval for use in escape and rescue routes ceases. -
Page 5: Safety-Conscious Working

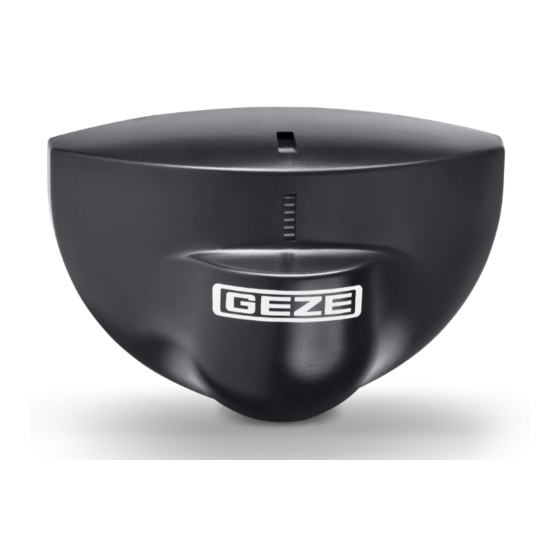

à When disposing of the door system, separate the different materials and have them recycled. Description The GC 304 R radar detector has been designed for use as an opening pulse generator on automatic doors. Due to the Doppler effect, the sensor detects movements, whereby a distinction is made between approach and distance to the detector. -
Page 6: Supplied By Geze
Work to be done before installation GC 304 R 2. 1 Supplied by GEZE Work to be done before installation 3. 1 Installing the drive Make sure that the weather hood of the drive is fitted correctly and earthed. -
Page 7: Positioning The Sensor
GC 304 R sensors can be used. à In the case of swing doors the sensor must be mounted on the hinge side above the swivelling axis. -
Page 8: Installation
Installation GC 304 R Installation Avoid extreme vibrations. Do not cover the sensor. Keep away from fluorescent lamps. Keep away from moving objects. 4. 1 Installation without accessories Remove the rear panel. Glue the sensor drilling template in place, drill holes for cables and... - Page 9 GC 304 R Installation Insert the cables and route them properly. Wire up, see Section “4.4 Cabling” on page 13. Attach the weather hood.
-
Page 10: Installation With Ceiling Installation Set
Installation GC 304 R Installation with ceiling installation set Ø 128 mm DOOR Ø 190 mm SENSOR ANTENNA... - Page 11 GC 304 R Installation 0° -30° +30°...
-
Page 12: Installation With Rain Cover
Installation GC 304 R Installation with rain cover... -
Page 13: Cabling
Installation Cabling Note the wiring diagrams for the drives. Upon activation, the output of the GC 304 R is closed (24V applied to the KI input). Set the type of contact for KI and KA to “normally opened contact”. GC 304 R... -
Page 14: Commissioning
Commissioning GC 304 R Commissioning 4 m x 2 m 2m x 2.5 m 2.2 m 2.2 m " " 2.2 m 2.2 m 15° 30° +15° 45° 0° -15°... -
Page 15: Settings
GC 304 R Settings Settings Use the remote control and/or push button to configure the sensor. = ! " § $ % & / ( ) Area size > > > > Immunity nor- high- high > >... -
Page 16: Fault Messages And Troubleshooting
Fault messages and troubleshooting GC 304 R Access code An access code (1 to 4 digits) is recommended for sensors which are in- stalled close together. 0-9 0-9 0-9 0-9 To save the access code 0-9 0-9 0-9 0-9 To delete the access code After the access code has been saved, this code must always be entered to unlock the sensor. - Page 17 GC 304 R Fault messages and troubleshooting Display Effect Cause Elimination The door It is raining and the Check whether uni mode has opens for sensor detects the been selected. no apparent movement of the Increase the immunity filter. reason.
-
Page 18: Technical Data
Technical data GC 304 R Technical data Technology: Hyper-frequency and microprocessor Transmission frequency 24.150 GHz Transmission power: < 20 dBm EIRP Density of transmission power < 5 mW/cm Detection mode: Movement Min. detection speed 5 cm/s Power supply: 12 V to 24 V AC ±10 %; 12 V to 30 V DC +30 % / –10 %... -
Page 19: Accessories / Spare Parts
GC 304 R Accessories / Spare parts Accessories / Spare parts Material no. Remote control 100061 Ceiling installation kit 130653 Rain cover 130654... - Page 20 Germany China Romania GEZE GmbH GEZE Industries (Tianjin) Co., Ltd. GEZE Romania S.R.L. Niederlassung Süd-West E-Mail: chinasales@geze.com.cn E-Mail: office-romania@geze.com Tel. +49 (0) 7152 203 594 www.geze.com.cn www.geze.ro E-Mail: leonberg.de@geze.com GEZE Industries (Tianjin) Co., Ltd. Russia GEZE GmbH Branch Office Shanghai OOO GEZE RUS Niederlassung Süd-Ost...
