Alarm Status Visualizer

The Alarm Status Visualizer is a 3D image of a human body displayed on all layout screens. The 3D image displays organ animations and color coded
alarm conditions.
Enabling/Disabling Visualizer Animation
The lungs and heart in the 3D image can be animated based on rainbow parameter values. The lungs will animate based on RRa and RRp parameter
values, and the heart will animate based on PR parameter values.
To enable/disable the Alarm Status Visualizer animation:
1. In the upper-right corner of a layout screen, click the Options menu
2. Select (enable) or deselect (disable) the Animation box.

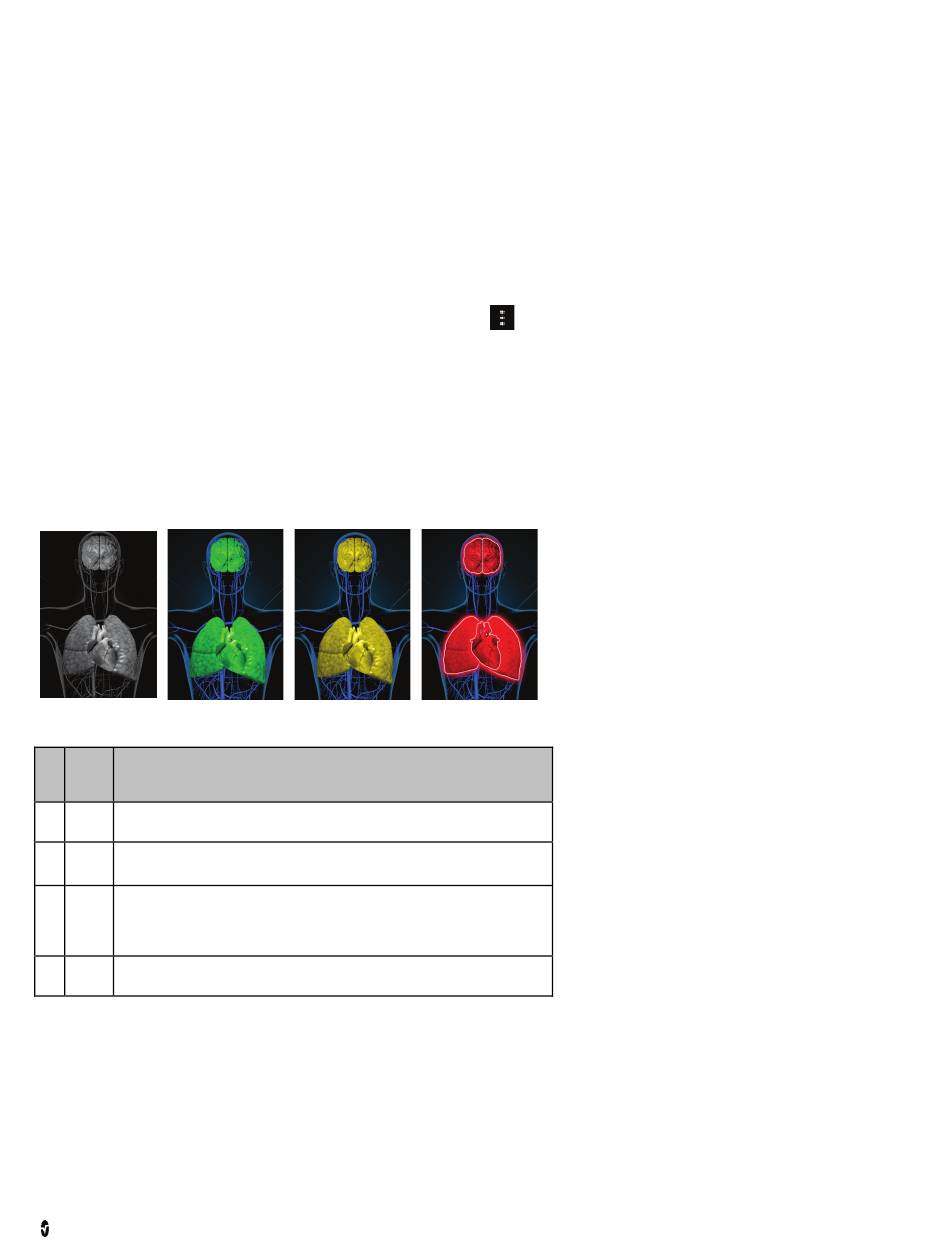

Visualizer Color Description Table
Colors are used to represent the status of monitoring and alarm conditions.
1
Ref Color Description
•
Disconnected PoC device
1
Gray
•
No monitoring
•
Successful connection to PoC device
2
Green
•
Monitoring: normal range
•
Successful connection to PoC device
•
Monitoring: Statuses, notifications, modifiers, notification devices not
3
Yellow
assigned to patient, or patient has not been successfully admitted to
the Masimo System
•
Successful connection to PoC device
4
Red
•
Monitoring: alarm range
