Selecting a Screen Layout

CAUTION: Always verify the parameter data displayed on the UniView layout screens match the parameter data displayed on the corresponding PoC. If
the parameter data is incorrect or not displayed, see Troubleshooting on page 31.
Four screen layout options are available to view patient data in UniView:
•
See Overview Layout on page 15.
•
See Hemodynamics Layout on page 17.
•
See Oxygenation Layout on page 18.
•
See Sedation Layout on page 19.
To select a screen layout option:
Login to a Masimo System and select a patient. See System Login on page 13.
1.

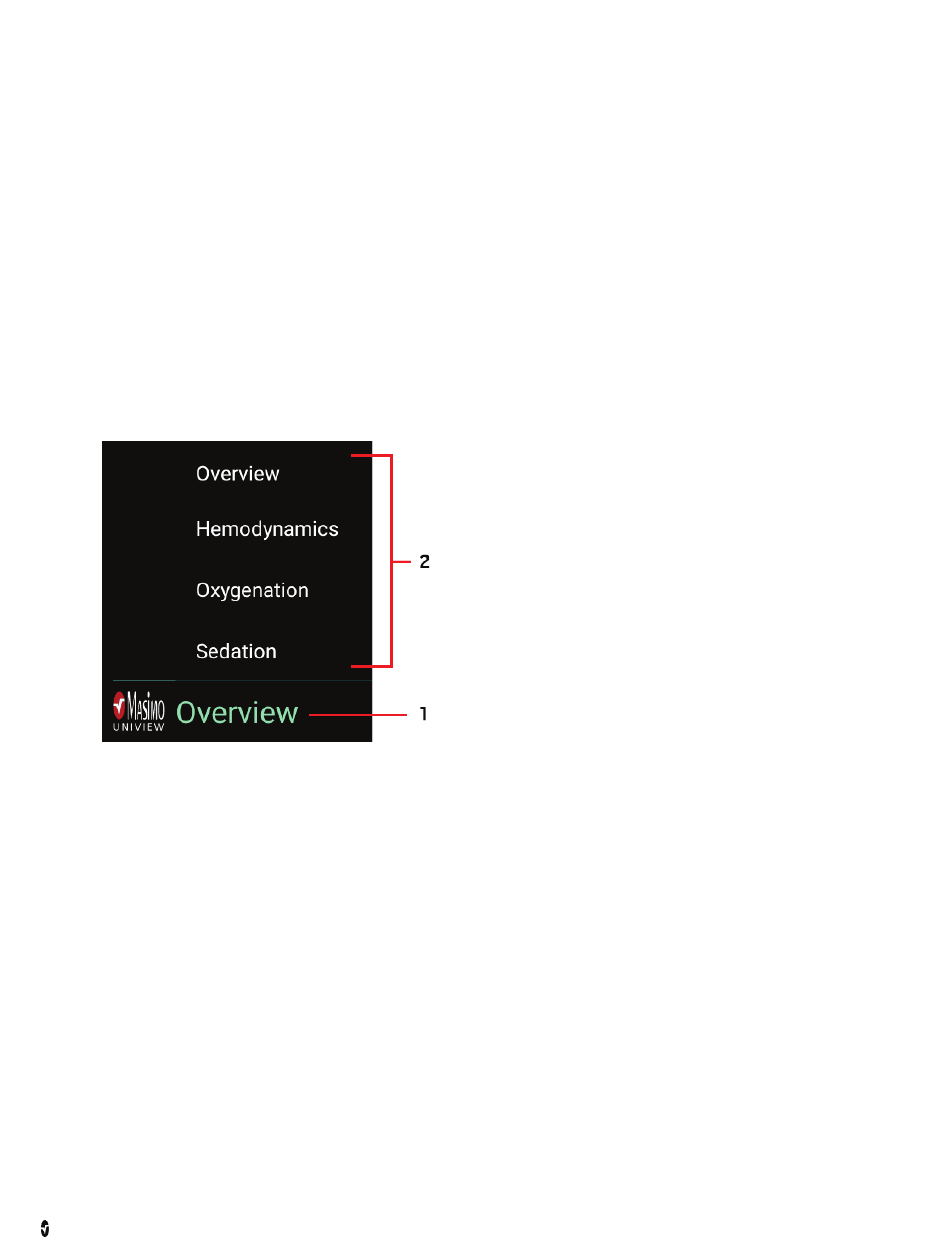

2. In the bottom-left of the Overview screen, click the View Selection Menu [1] to view the screen layout options.
3. Click a screen layout option [2] to view a parameter data.
4. Click anywhere outside of the View Selection Menu to close the menu.
