Sedation Layout

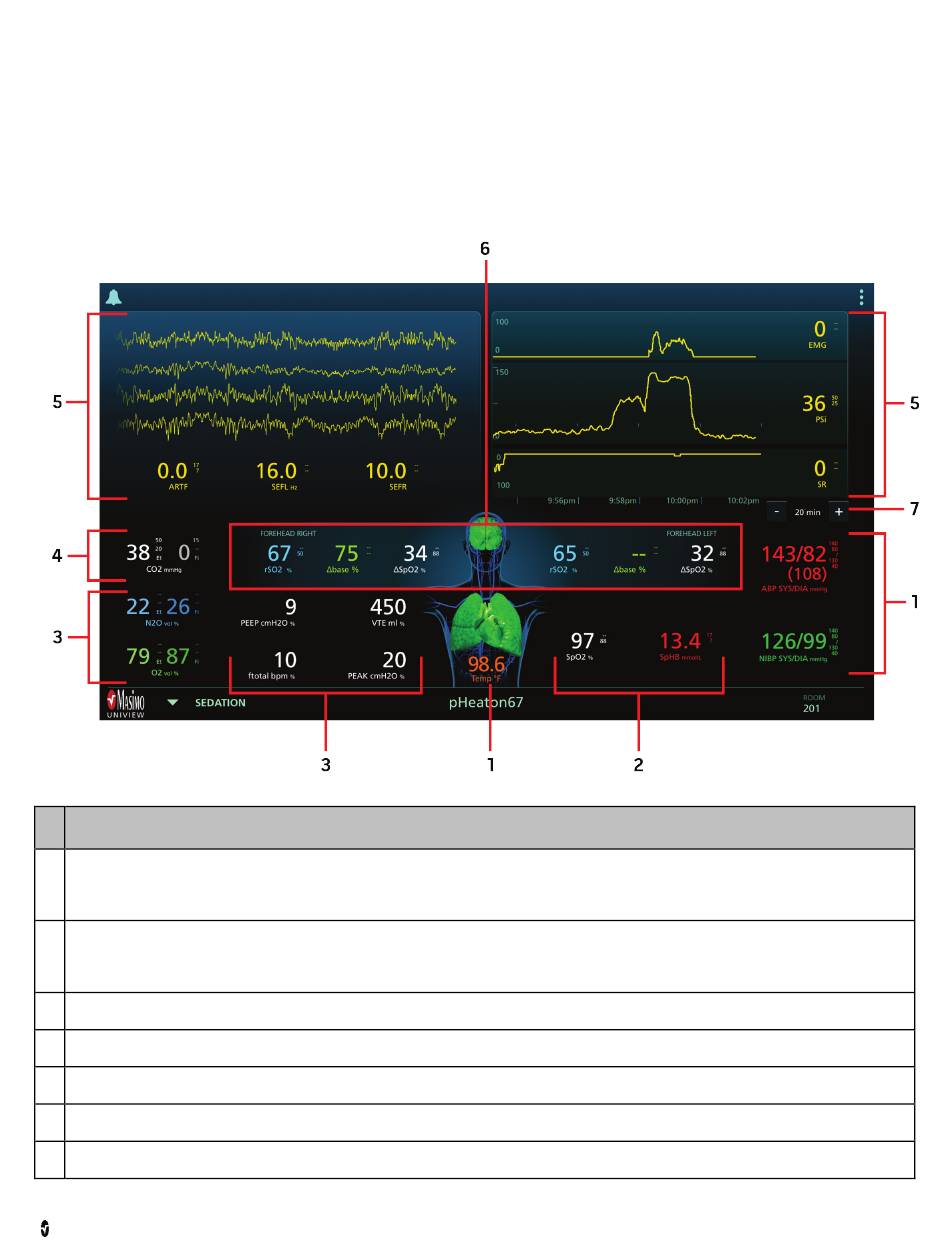

The Sedation View screen displays the following channels: [1] Masimo device or Third-Party Monitor, [2] rainbow, [3] Anesthesia or Ventilator, [4]
Capnography, [5] SedLine, and [6] O3 Regional Oximeter data.
Additionally, trend settings [7] for EMG, PSi, and SR can be adjusted incrementally. See Trend Settings on page 20.
CAUTION: Verify parameter data displayed on the UniView layout screen matches parameter data displayed on the corresponding PoC. If the parameter
data does not match or does not display on UniView, see Troubleshooting on page 31.
Ref Description
•
Displays Masimo device or third-party monitoring parameters.
1
Note: Masimo device parameters have the highest display priority over third-party parameters. Refer to the appropriate device operator's manual for
further information about parameters.
•
Displays rainbow parameters SpO
2
Note: Masimo device parameters have the highest display priority over third-party parameters. Refer to the appropriate device operator's manual for
further information about parameters.
3
•
Displays anesthesia or ventilator device parameters.
4
•
Displays capnography device parameters.
5
•
Displays SedLine device parameters and waveforms.
6
•
Displays O3 device parameters.
7
•
See Trend Settings on page 20.
