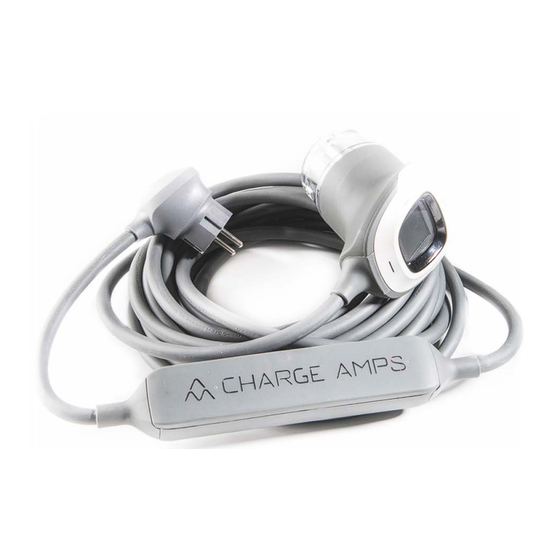

- Page 1 RAY TYPE 2 PRODUCT MANUAL...
-
Page 2: Table Of Contents
CONTENT ABOUT ........................... 3 Charging current ......................4 To start charging ......................4 To stop charging ......................4 SAFETY PRECAUTIONS ...................... 5 Warning ..........................5 Caution ..........................5 TROUBLESHOOTING ......................6 TECHNICAL SPECIFICATIONS ................... 7... -
Page 3: About
Born in the fusion of technology and design, RAY is everything you need and want in a charger, made simple and attractive. As it should be. With the introduction of RAY, Charge Amps puts the user in full control. Bursting with new and smart technology, in a design that takes charging into the future. -
Page 4: Charging Current
HOW TO USE RAY Read Safety precautions first Charging current You should always have good knowledge about the electrical installation before you start charging to make sure the installation handles the load correctly. Charging with high current requires that the outlet is rated for the load continuously and that the cable dimensions between the electric central and the outlet is of adequate size. -
Page 5: Safety Precautions
SAFETY PRECAUTIONS Warning Due to mishandling a dangerous condition might occur such as electric shock or fire - Before you connect the RAY make sure the correct charging current is selected. You must ensure that the outlet and circuit has enough current capacity to charge your vehicle safely. -
Page 6: Troubleshooting
TROUBLESHOOTING Warning symbols on the display Detection of one or more welded relays in the In-Cable-Control-Box. If problem is Relay weld persistent, contact vendor. Do not touch the terminals of the EV Connector. The RCD has tripped. This indicates a ground fault in the car. -
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS Voltage 220-240 V Frequency 50/60 Hz Current 16 A Vehicle interface 62196-2 TYPE 2 Cable length 7,5 m Ground fault protection RCD type A, <30 mA This IC-CPD shall not be used for vehicles which may cause smooth d.c. - Page 8 The RAY contains electronics and should be recycled as such. Contact your local community centre for information about recycling and where to dispose your products. You can also send used items back to Charge Amps for disposal. Contact info@charge-amps.com for instructions on how to send items for disposal.
