KUB T120/KUB EKO
EN
MOUNTING AND INSTALLATION INSTRUCTION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KUB T120 and is the answer not in the manual?

Questions and answers

Related Manuals for Salda KUB T120

Summary of Contents for Salda KUB T120

  • Page 1 KUB T120/KUB EKO MOUNTING AND INSTALLATION INSTRUCTION...

  • Page 2: Safety Instructions And Warnings

    SYMBOLS AND MARKING Techninis lipdukas SKU000000 Product name SKU000000 Product name Nominal voltage frequency 000 0 VAC Nominal voltage frequency 000 0 VAC Max.current 00.00 A Max.power consumption 0.00 kW Max.current 00.00 A Protection class IP 00 Made in Šiauliai, Lithuania LN: LN000000 2019.01.01 Max.power consumption...

  • Page 3: Purpose Of The Device

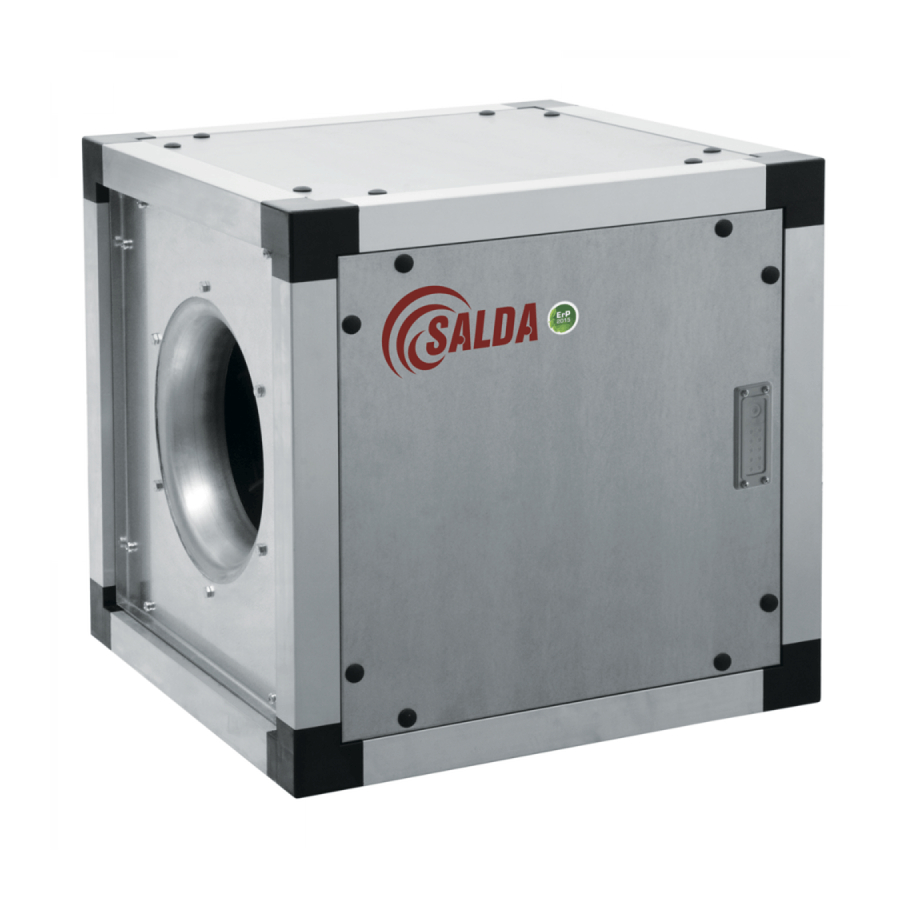

    Fan box insulated is designed for ventilation and conditioning systems to supply/extract to/from a room only clean air (free of chemical compounds causing metal corrosion, of substances aggressive to zinc, plastic and rubber, and of particles of solid, adhesive and fibred materials). DIMENSIONS AND WEIGHT øD KUB T120 [mm] [mm] [mm]...

  • Page 4: Working Conditions

    The device is used to extract air (free from metal corroding chemicals; aggressive substances for zinc, plastic, rubber; hard, sticky and fibrous particles) from the room. Please note the maximum allowed ambient temperature (-40 +40). The maximum temperature of transported air can not exceed 120 TECHNICAL DATA KUB T120 355-4L3 400-4L3 450-4L3 500-4L3...
  • Page 5 Frequency Converters TGRV TGRT KUB T120 3X400 V 355-4L3 ACS380-042S-01A8-4 Pn: 0,55kW, In: 1,8A IP20 420x420-355 400-4L3 ACS380-042S-01A8-4 Pn: 0,55kW, In: 1,8A IP20 590x590-400 450-4L3 ACS380-042S-03A3-4 Pn: 1,1kW, In: 3,3A IP20 590x590-450 500-4L3 ACS380-042S-04A0-4 Pn: 1,5kW, In: 4,0A IP20 590x590-500...

  • Page 6: Roof Installation

    ROOF INSTALLATION STAT-UP Operation start-up of the unit shall be performed only by trained and qualified personnel. Before start-up, make sure that power supply circuit corresponds to the specifications indicated on the label. Before start-up, make sure that the unit is connected to the mains in accordance with the wiring diagram shown in this document and under the electric connection box cover.

  • Page 7: Maintenance

    MAINTENANCE Fan bearings are maintenance-free. It is necessary to use filter before the fan. The suitable filter must be chosen by designer of ventilation system. Before cleaning, disconnect the supply voltage and block the switch to avoid accidental switching on. Wait until any mechanical movement stops, the motor cools down and connected capacitors (when used) discharge .
  • Page 8 Delta 3~ 400V L1 L2 L3 +24V Aux. voltage output +24 V DC, max. 200 mA DGND Aux. voltage output common DCOM Digital input common Stop (0)/Start (1) Forward (0)/Reverse (1) Run enable External fault 1 DIO1 Digital input function: Ramp set 1 (0)/Ramp set 2 (1) DIO2 Digital output function: Ready to run (0)/Not ready (1) DIO SRC...
  • Page 9 Star 3~ 400V L1 L2 L3 +24V Aux. voltage output +24 V DC, max. 200 mA DGND Aux. voltage output common DCOM Digital input common Stop (0)/Start (1) Forward (0)/Reverse (1) Run enable External fault 1 DIO1 Digital input function: Ramp set 1 (0)/Ramp set 2 (1) DIO2 Digital output function: Ready to run (0)/Not ready (1) DIO SRC...

  • Page 10: Wiring Diagram

    E1 - Analog In1 11,14 - Contact rating max. AC250V, 2A PE, L1, L2, L3 - line voltage 400V Input 0-10V PE, L1, N - line voltage 230V SLECTION OF POWER SUPPLY CABEL AND PROTECTIVE DEVICE KUB T120 355-4L3 400-4L3 450-4L3 500-4L3 560-4L3...
  • Page 11 Declared maximum external leakage [ % ] <1 <1 <1 <1 <1 <1 Casing sound power level (Lwa) [ dB(A) ] 76 ErP Compliance 2018 2018 2018 2018 2018 2018 Internet address for disassembly instructions www.salda lt KUB T120_KUB EKO v2019.04 EN |...

  • Page 12: Declaration Of Confomity

    Should any alterations be made in the products, this declaration will no longer apply. Notified body: VšĮ Technikos priežiūros tarnyba, Naugarduko g. 41, LT – 03227 Vilnius, Lithuania, identification number 1399. Quality: Salda UAB activities are in line with the international quality management system standard ISO 9001:2015. Date...

  • Page 13: Warranty

    3.4. when the unit was used not for its original purpose. 3.5. Company SALDA UAB is not responsible for potential loss of property or personal injury in cases where AHU is manufactured without a con- trol system and the control system will be installed by the client or third parties. The manufacturer’s warranty does not cover devices that will be damaged by installing the control system.
  • Page 14 KUB T120_KUB EKO v2019.04...
  • Page 15 KUB T120_KUB EKO v2019.04...
  • Page 16 Every 3-4 Filter replacement months** * - Look at the product label. ** - At least. NOTE. The purchaser is required to fill in the “Product maintenance table”. MAN000151 MAN000151 Ragainės g. 100 +370 41 540 415 Šiauliai LT-78109, LITHUANIA office@salda.lt...
