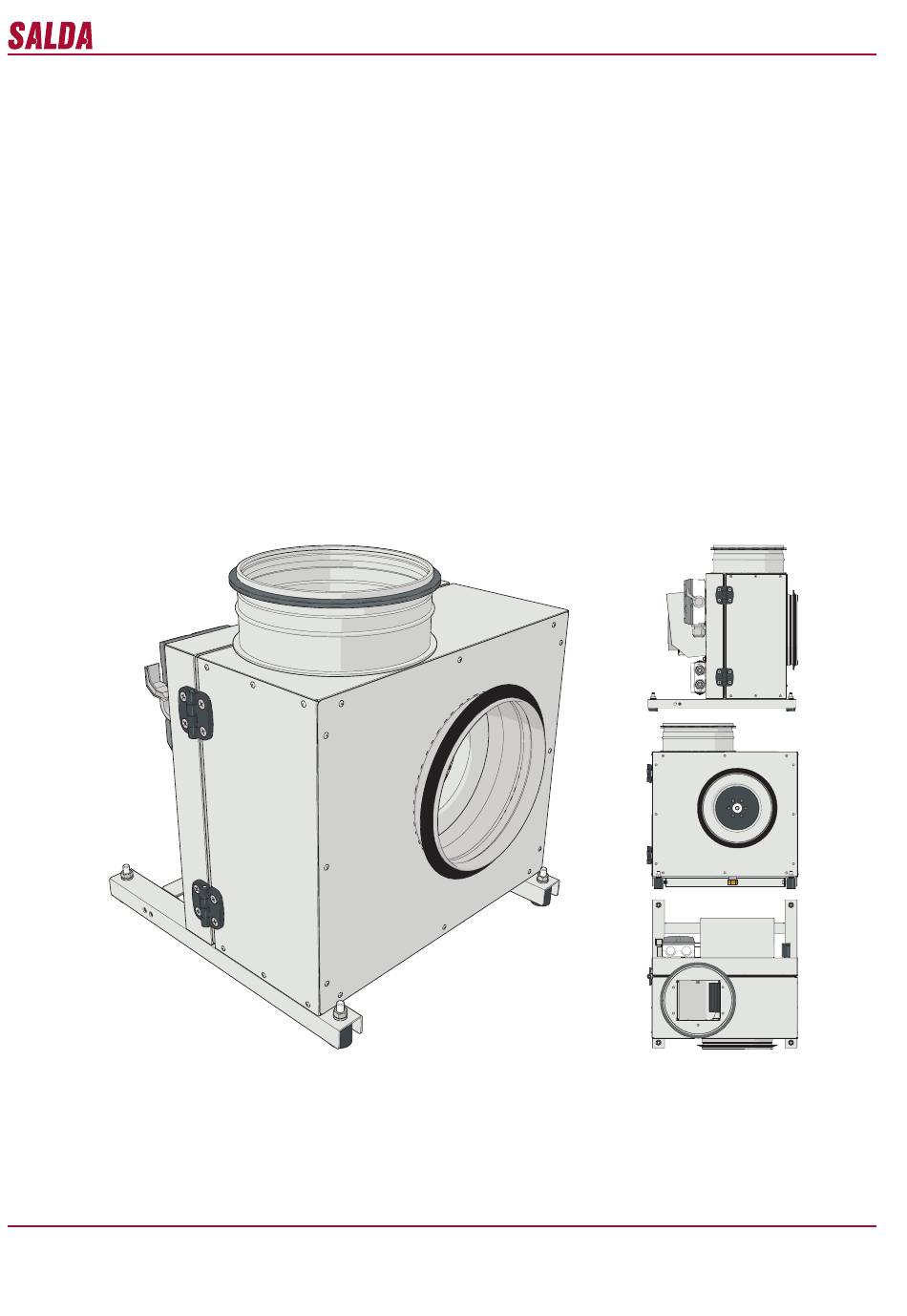

- Page 1 KITCHEN FANS KF-T120 EC INSTALLATION AND OPERATION MANUAL Subject to technical modification KF-T120 EC_P0109_AZ_0002...
- Page 2 KF T120 EC Safety instructions and warnings General information Safety precautions Symbols Description Dimensions and weight Working conditions Technical data Standard package of components Components Accessories Spare parts Installation Transportation ant storage Unpacking Space requirements Maintenance Electrical connection and control Start-up recommendations Safety requirements Cleaning the equipment...
- Page 3 0.17 kW; 1.87 A; IP-55; 00 kg TOTAL: www.salda.lt gu072489 / 2014.03 Stick the auxiliary label on the unit (on an easily accessible place) or on the dashed place of a technical manual in order to keep the important informa- tion about the unit.

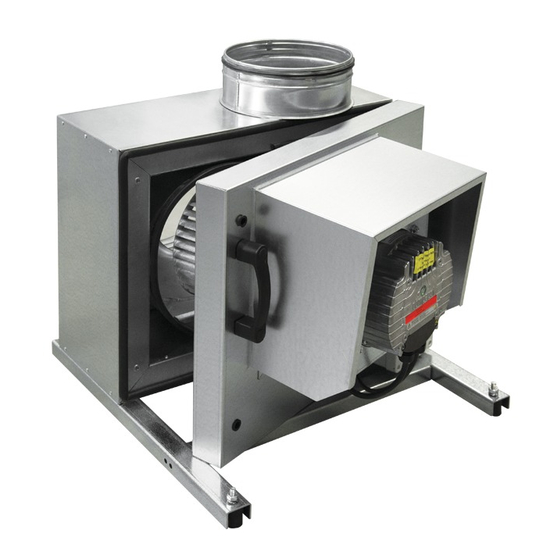

- Page 4 KF T120 EC • KF-T120 EC is designed for extracting wet, greased and hot (max 120 C) air. These fans are for commercial kitchen applications. • Fan speed can be controlled by 0-10V speed control devices. • Maintenance undemanding bearings.
- Page 5 KF T120 EC KF-T120 EC F160 F180 F200 F250 F280 B315 B355 B400 - phase/voltage [50 Hz/VAC] ~1/230 ~1/230 ~1/230 ~1/230 ~3/400 ~1/230 ~1/230 ~1/230 - power [kW] 0,134 0,250 0,450 0,740 2,60 0,150 0,15 0,435 - current - speed...
- Page 6 KF T120 EC operational limits power consumption KF-T120 F 160 EC KF-T120 F 180 EC P [kW] P [kW] P [kW] P [kW] 0,18 0,18 100% 100% 0,16 0,16 0,14 0,14 100% 100% P [kW] P [kW] 0,12 0,12 P [kW] P [kW] 0,18 0,18...
- Page 7 KF T120 EC Standard package (without optional accessories) includes: Fan KF T120 EC– 1 pcs.; Support (anti-vibration feet TS 25-30) – 4 pcs.; Screws (8 DIN 934) – 4 pcs.; Washers (8 DIN 127) – 4 pcs. 1. The upper flange 11.
- Page 8 KF T120 EC KF-T120 F 160 EC / KF-T120 F 180 EC / KF-T120 F 200 EC Controller Stouch* PRGPU51 On/Off switch On/Off switch 25A/1f GPU235_1006E Manual regulation MTP010 PRGR0025 S-1141* SPS differential pressure trans- Stouch* ZAKKT0047 mitter Flexible connection for high RC-MAN-PU 200 ZPDLJ001 temperature...
- Page 9 KF T120 EC Door 1017 (KF 160) GPUD232_1017_1017 Door 1021 (KF 180) GPUD232_1021_1021 Door 1023 (KF 200) GPUD232_1023_1023 Door replacement unit (EC fan Door 1018 (KF 250) GPUD232_1018_1023 with an impeller and a connec- Door 1020 (KF 280) GPUD232_1020_1020 Door tion box) Door 1019 (KF 315) GPUD232_1019_1021...
- Page 10 • It is recommended to transport the product to the installation site in the original package. • If you charge a person , pay attention to the weight of the product , which is written on the label. KF-T120 F160/F180/F200 EC KF-T120 F250/F280/B315/B355/B400 EC KF-T120 EC L1, mm L2, mm W1, mm...
- Page 11 KF T120 EC AB/AGO/ALU* SKG-A/RSK* ON/OFF CEE7/7 Stouch S-1141* MTP010 IP44/54 1.5 A ModBus Control Accessories : 1. MTP010 regulator 2. Stouch panel 3. Stouch + S- 1141 * ** - Domestic use installed filters box *** - For industrial use filters installed extractors Exhaust air Kitchen hood AB/AGO/...
- Page 12 KF T120 EC KF-T120 EC F160 F180 F200 F250 F280 B315 B355 B400 Z1 [mm] 1110 1090 Z2 [mm] • Fan bearings are maintenance-free. • The suitable filter must be chosen by designer of ventilation system. • Before cleaning, disconnect the supply voltage and block the switch to avoid accidental switching on.
- Page 13 KF T120 EC • Installation works may be performed only by trained and qualified personnel. • The devices have rotating parts and are connected to the electricity. This may pose a risk to the human health and life. That is why safety require- ments have to be followed while installing.
- Page 14 KF T120 EC Fan connection diagram: KF-T120 F 160 EC KF-T120 F 180 EC, KF-T120 B 315 EC, KF-T120 B 355 EC (SP23-b) (SP25-b) KF-T120 F 200 EC, KF-T120 F 250 EC, KF-T120 B 400 EC KF-T120 F280 EC (SP26-b) (SP27-b)
-
Page 15: Connection Of Accessories
KF T120 EC Connection of accessories 1. Fan – on/off switch – 0-10 VDC speed controller IP44/54 1.5 A CEE7/7 Pastabos: 1. Priskirk komponenetus iš bibliotekos kad matytųsi pajungimo gnybtų numeracija. Electrical connection - With speed controller MTP010, which allows to select fan speed from 0-100%. Controller position at 0 turns the device off. ModBus MTP010 SMT-D-4P-EL... - Page 16 KF T120 EC Pastabos: 1. Priskirk komponenetus iš bibliotekos kad matytųsi pajungimo gnybtų numeracija. - With speed controller SMT-D-4P-EL, which allows to select 3 speeds. These speeds can be adjusted according user needs. 0 – position “Stop”; 1 – position 3-6 VDC/100 mA; 2 –...
- Page 17 CEE7/7 CEE7/7 KF T120 EC 2. Fan speed control by a remote controller or/and a PC via Modbus (see Stouch manual) ModBus ModBus CEE7/7 CEE7/7 3. Constant pressure adjustment by a remote controller or/and a PC via Modbus (see Stouch manual) ModBus ModBus CEE7/7...
- Page 18 KF T120 EC Electrical connection SMT-D-4P-EL -S-1141 CON1 -Stouch SMT-D-4P-EL -S-1141 Priedų pajungimas 2016-07-19 dariusaleksandravici DRAWN BY CHECKED BY +SP25 EI D. Aleksandarvičius EI K. Vasiliauskas CON1 -Stouch...
- Page 19 KF T120 EC SMT-D-4P-EL -S-1141 CON1 -Stouch Pressure sensor connection on the ducting. 2 possible variants. a) The hose with “-“ must be connected before the fan. The hose with “+” measures atmospheric pressure. Exhaust air Kitchen hood Priedų pajungimas 2016-07-18 dariusaleksandravici DRAWN BY...
- Page 20 KF T120 EC b) The hose with “-“ must be connected on the ducting before the fan. The hose with “+” must be connected after the fan. • The device can be started only by qualified and trained personnel. • Before starting the device, make sure that the power chain matches the data on the label. •...
- Page 21 KF T120 EC • Do not use metal brushes and other pointed or sharp objects. • Do not use high pressure cleaning devices. • When cleaning fan, do not bend it’s impellers . • When cleaning the fan use a chemically harmful , alkaline detergent . •...
- Page 22 KF T120 EC Problam Possible causes Corrective measures Impeller’s imbalance Rebalance ant the specialized company Adhesions on the impeller Clean carefully, rebalance, if necessary Material decomposition on the impeller due to aggres- Contact the manufacturer or its representative Fan doesn’t operate smoothly sive material conveyed Wrong direction of rotation of impeller Contact the manufacturer or its representative...
- Page 23 KF T120 EC 1. All equipment manufactured in our factory is checked in operating conditions and tested befor delivery. Test protocol is supplied together with the unit. The equipment is shipped in good working order and condition to the direct client. The unit is warrantied for the period of two years from the invoice date.
- Page 24 KF T120 EC...
