  • Page 1 KF T120/KF T120 EC MOUNTING AND INSTALLATION INSTRUCTION...

  • Page 2: Safety Instructions And Warnings

    SYMBOLS AND MARKING SKU000000 Product name Nominal voltage frequency 000 0 VAC Max.current 00.00 A Max.power consumption 0.00 kW Protection class IP 00 SKU000000 Product name Nominal voltage frequency 000 0 VAC Max.current 00.00 A LN: LN000000 2019.01.01 Made in Šiauliai, Lithuania Max.power consumption 0.00 kW Protection class...

  • Page 3: Dimensions And Weight

    • Do not use water or another liquid to clean electrical parts or connections. • If you notice water on electrical parts or connections, stop operating the unit. • Do not use fan without air duct system and protective grills, what protects from foreign objects. INFORMATION ABOUT THE PRODUCT DESCRIPTION •...

  • Page 4: Technical Data

    particles) from the room. • Please note the maximum allowed ambient temperature (please see technical data table in page 5). • The maximum temperature of transported air can not exceed 120 TECHNICAL DATA KF T120 EC B 315 B 355 B 400 F 160 F 180...

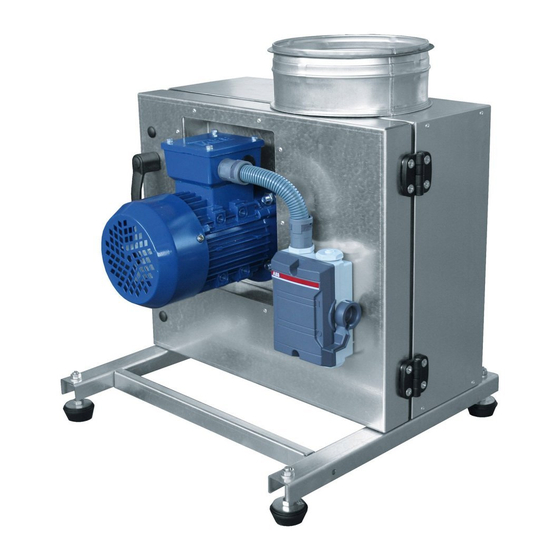

  • Page 5 COMPONENTS 1 - The upper flange; 2 - Hinges; 3 - Housing; 4 - Anti-vibration feet; 5 - Connection Ring; 6 - Fan; 7 - Fat chutes with a plug 1/2’’; 8 - Switch**; 9 - Roof; 10 - Engine; 11 - Electrical connection box; 12 - Feet; 13 - Panel bushings; 14 - Handle. ** - Available as an accessory ACCESSORIES KF T120 EC...
  • Page 6 * Only transmitter Stouch is supported by a pressure transducer S - 1141 KF T120 160-4 L3 180-4 L3 200-4L3 225-4L3 250-4L3 280-4L3 315-4 L3 355-4 L3 400-4 L3 Frequency Converters TGRT KF T120 3X400 V 160-4L3 ACS380-042S-01A8-4 Pn: 0,55kW, In: 1,8A IP20 180-4L3 ACS380-042S-01A8-4 Pn: 0,55kW, In: 1,8A IP20 200-4L3...

  • Page 7: Mounting Diagram

    • It is recommended to transport the product to the installation site in the original package. • If you charge a person , pay attention to the weight of the product , which is written on the label. UNPACKING MOUNTING DIAGRAM AB/AGO/ALU* SKG-A/RSK* ON/OFF...

  • Page 8: Space Requirements

    SPACE REQUIREMENTS KF-T120 EC F160 F180 F200 F250 F280 B315 B355 B400 Z1 [mm] 1110 1090 Z2 [mm] KF T120 160-4 L3 180-4 L3 200-4L3 225-4L3 250-4L3 280-4L3 315-4 L3 355-4 L3 400-4 L3 Z1 [mm] 1055 1048 Z2 [mm] MAINTENANCE •...
  • Page 9 ELECTRICAL CONNECTION AND CONTROL • Installation works may be performed only by trained and qualified personnel. • The devices have rotating parts and are connected to the electricity. This may pose a risk to the human health and life. That is why safety requirements have to be followed while installing.
  • Page 10 3x400V 3x230V KF-3 KF-4 emos nr. KF-On/Off-TK-3k Keit. Lapas Dok .Nr. Para�as Data Parengė M.Jasaitis 14-04-22 Lap� sk. Raidė Lapas KF-120 ventiliatori� Tikrino A.Ratkus 14-04-22 jungimo bųdai UAB "SALDA" Ventiliatori� pajungimo principinė schema | EN KF T120_KF T120 EC v2019.04...

  • Page 11: Connection Of Accessories

    CONNECTION OF ACCESSORIES 1. Fan – on/off switch – 0-10 VDC speed controller IP44/54 1.5 A CEE7/7 Pastabos: 1. Priskirk komponenetus iš bibliotekos kad matytųsi pajungimo gnybtų numeracija. ELECTRICAL CONNECTION ModBus - With speed controller MTP010, which allows to select fan speed from 0-100%. Controller position at 0 turns the device off. MTP010 SMT-D-4P-EL SMT-D-4P-EL...
  • Page 12 Priedų pajungimas Book # DUTIES / NAME SIGNATURE DATE SP25-b, SP26-b EI D. Aleksandarvičius 2016-07-26 UAB"SALDA" DRAWN BY Priedų pajungimas Drawing # EI K. Vasiliauskas 2016-07-26 CHECKED BY 2016-07-19 dariusaleksandravici APPROVED BY...

  • Page 13: Start-Up Recommendations

    a) The hose with “-“ must be connected before the fan. The hose with “+” measures atmospheric pressure. Exhaust air Kitchen hood 1.5 A 1.5 A b) The hose with “-“ must be connected on the ducting before the fan. The hose with “+” must be connected after the fan. START-UP RECOMMENDATIONS •...

  • Page 14: Cleaning The Equipment

    CLEANING THE EQUIPMENT • Do not use metal brushes and other pointed or sharp objects. • Do not use high pressure cleaning devices. • When cleaning fan, do not bend it’s impellers . • When cleaning the fan use a chemically harmful , alkaline detergent . •...
  • Page 15 Switch off the fan, disconnect from the power Mechanical blockage supply and remove the blockage Check the supply voltage, resume the voltage Incorrect supply voltage supply, and start the fan Disconnect from the power supply, correct Motor does not rotate Incorrect electrical connection the electrical connection according presented connection scheme...

  • Page 16: Declaration Of Confomity

    Should any alterations be made in the products, this declaration will no longer apply. Notified body: VšĮ Technikos priežiūros tarnyba, Naugarduko g. 41, LT – 03227 Vilnius, Lithuania, identification number 1399. Quality: Salda UAB activities are in line with the international quality management system standard ISO 9001:2015. Date...

  • Page 17: Warranty

    3.4. when the unit was used not for its original purpose. 3.5. Company SALDA UAB is not responsible for potential loss of property or personal injury in cases where AHU is manufactured without a con- trol system and the control system will be installed by the client or third parties. The manufacturer’s warranty does not cover devices that will be damaged by installing the control system.
  • Page 18 KF T120_KF T120 EC v2019.04...
  • Page 19 KF T120_KF T120 EC v2019.04...
  • Page 20 Every 3-4 Filter replacement months** * - Look at the product label. ** - At least. NOTE. The purchaser is required to fill in the “Product maintenance table”. MAN000150 MAN000211 Ragainės g. 100 +370 41 540 415 Šiauliai LT-78109, LITHUANIA office@salda.lt...
