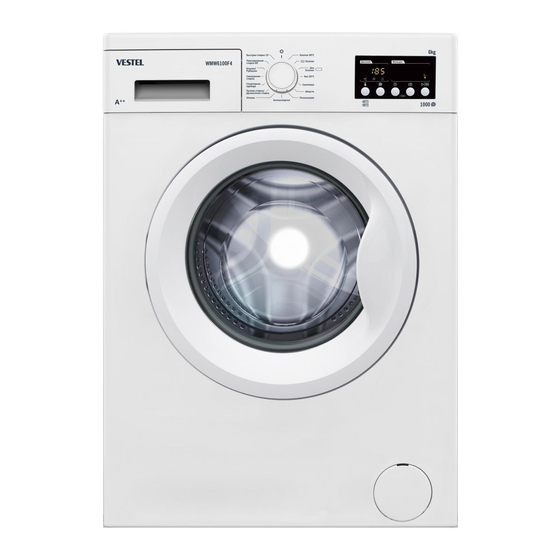

- Page 1 Reference Number: SM2410201600F4PY F4 TOUCH PYTHON BLDC SERVICE MANUAL Document without reference number is not valid.
-
Page 2: Product Specifications
Specifications 1.1. Product Specifications 50 lt 55 lt 61 lt 62 LT Product Type Front Loader Capacity 7 kg 8 kg 9 kg 10 kg Max Spin Speed (r/min) 800 - 1000 - 1200 - 1400 - 1600 Energy Efficiency A+++ -%20 A+++ -%10 Washing Efficiency... -
Page 3: Installation Instructions
Reference Number: SM2410201600F4PY Installation Instructions 2.1. Moving and Installing 2.1.1. Removal of Transportation Screw Transportation screws, which are located at the back side of the machine, must be removed before running the machine. The holes where the transport screws have been Loosen the screws by turning them anticlockwise with a removed should be covered with the plastic transport suitable spanner. - Page 4 2.1.4. Water Supply Connection After connection is complete, check for leakage by turning on tap completely. Washing machine is supplied with a single (cold) water Make sure that water inlet hoses can not become folded, inlet. damaged, stretched or crushed when the washing To prevent leakage from the connection joints, a rubber machine is in its final position.
-
Page 5: Lcd Screen, Function Buttons & Knobs
Operating Instructions 3.1. LCD Screen, Function Buttons & Knobs ON/OFF Start / Pause Function 1 Delay Mode Spin Speed Selection Temperature Selection Start / Pause Wash Phase Led Rinse Phase Led Spin Phase Led Delay Mode Function 1 Led 3.2. Program List KNOB PROGRAM... -
Page 6: Child Lock
3.5. Child Lock Activation L4 and L5 will make fast blink for 2 sec to indicate child Press the SW2 and SW3 buttons simultaneously for 3 sec. lock is activated. Deactivation L4 and L5 wil make fast blink for 2 sec to indicate child lock is activated. -
Page 7: Test Mode
Test Mode 4.1. Autotest * This test is for quick checking of the product. You can not see the failure codes. Press SW5 button and simultaneously position program knob to 1 After 3 sec, door will be locked and the auto test starts. Step6: The option 1 button is pushed The test steps are as below;... -
Page 9: Service Mode
Service Mode 5.1. Service Autotest End users can only see E1-E2-E3-E4. During service autotest, other failures can be seen. To activate service autotest, Press SW4 button and simultaneously position program knob to 1. After 3 sec, door will be locked , after door is locked, all leds will be fix OFF and machine will get into service autotest mode. Selector Selector Selector... -
Page 10: Failure Codes
5.2. Failure Codes Indication For User Indication For Service Error Indication Error Number Yes/No Yes/No Door is not locked Door is unlocked during programme Lack of water Pump failure Overflow NTC or Heater Failure Motor Failure - 1 (Tachometer open-short circuit or motor connector is disconnected) Configuration Failure Motor Triac Failure... - Page 11 FAILURE PROBABLE CAUSE METHODS OF ELIMINATION Press the start/pause button. In order to stop the foam, dilute one table-spoon of softener in Too much detergent has been half liter of water and pour it in the detergent Excessive foam in used.
-
Page 12: Top Plate
Disassembly and Assembly Instructions 7.1. Top Plate Remove two screws that fix the top-plate at the back. Pull the door up. Push the top-plate back and pull it up. Remove screws that fix the door group. 7.2. Door Remove two screws that fix the door. (by using the T25) Put the door outside plastic with helping screwdriver as it is shown in the picture. - Page 13 Remove the door inside plastic as it is shown in the picture. Remove the door handle pim as it is shown in the picture. Remove six screws that fix the door hinge as it is shown in the picture. Remove the door handle as it is shown in the picture.
-
Page 14: Tub Bellows Seal
7.3. Tub Bellows Seal First remove the spring wire fixing the tub bellows seal by using the small size screw driver. Pull the tub bellows seal as it is shown in the picture. 7.5. Control Panel Remove the screw which fix the control panel to the front Remove the tub bellows seal-body fixing spring. - Page 15 Pull the control panel up. Press the button as shown in the picture. Remove electronic card as it is shown in the picture. Remove the cable group as it is shown in the picture. Push clips to remove to selection button as it is shown in the Picture.
-
Page 16: Front Panel
7.6. Front Panel Remove two screws fixing upper the front panel. Remove the pomp cover as it is shown in the picture. Remove two screws fixing door lock it is shown in the picture. Remove two screws fixing the body group at the front as it is Remove two screws fixing bottom the front panel. -
Page 17: Detergent Drawer Housing
Lift upper support braket up slightly it it ishown in the picture. Remove the pump cover housing as it is shown in the picture. 7.7. Detergent Drawer Housing Remove the front panel as it is shown in the picture. Remove detergent drawer group two clips fixing the upper support bracket as it is shown in the picture. - Page 18 Remove the detergent drawer screw. Remove the tub seal clamp by using the pliers, which is Remove the detergent drawer housing assembly. attached to the detergent drawer housing. Remove the four connectors that is connected to the feed valve as it is shown in the picture. 7.8.
-
Page 19: Electronic Pressure Switch (Eps)
Remove two screws fixing the parasite filter. Pull the EPS upward to remove as it is shown in the picture. Pull the power cable group up as it is shown in the picture. Remove the eps hose handcuffs and eps hose as it is shown in the picture. -
Page 20: Front Counterweight
Remove pipe clip fixing the tub outlet hose. Pull the counterweight back Remove the connector that is connected to the pump motor. 7.13. Heater Remove the four connectors that is connected to the heater. Remove four screws fixing the pump motor. Remove one nut fixing the heater slightly (box wrench size 8 7.12. - Page 21 the tub gasket clip by using small screwdriver. Hold the tub bellows seal and gasket-body fixing spring together, and pull them up. Hold the heater and pull it out. 7.15. Trans port Scre move four transport screws (box wrench size 10 mm) 7.14.
-
Page 22: Washing Group
Hold the transport screw and pull it out. Remove the upper counterweight 7.17. Washing Group Remove the connector that is connected to the motor. 7.16. Upper Counterweight Cut the five lead wire holders as shown the pictures. Remove two screws fixing the upper counterweight by using box wrench size 13 mm. -
Page 23: Driven Pulley
7.19. Belt Remove the belt as it is shown the picture. Remove the four screws fixing the spring hanger sheet iron. 7.20. Driven Pulley Remove the screw fixing driven pulley it is shown the picture (By using T40). Remove the washing group as it is shown in the picture. 7.18. -
Page 24: Pressure Switch Hose Group
7.21. Motor 7.23. Pressure Switch Hose Group Remove the four screws fastening the motor under the tub by using T40 Remove screw fixing the pressure switch water reservoir. Pull the motor up for disassembly. Remove the tub exit with bellow hose with ball by using box wrench size 10 mm. - Page 25 enty four screws fixing tub using box wrench size 8 mm. 7.25. Drum Remove the drum.
- Page 26 8.26 BLDC Card Remove the bottom plate by tilting the This is the only way to remove the card without machine removing the washer group Remove the card by pressing the clip that placed behind (it could be seen on the first image) of the card and pushing the card.
- Page 27 Remove the connections. Remove the card completely Remove the ground connection and make sure this Remove the BLDC motor card fixing screws. connection is plugged during the assembly.
-
Page 28: Component Specifications
8. Component Specifications 8.1. Drain Pump Drain pump is both a mechanical and elektrical component which is used to drain water inside the washing machine. It has an synchronous motor inside. For better performance maintanance, pump filter should be cleaned regularly. 8.1.1. - Page 29 8.2. Resistance Heating element (Resistance) is a component which is desingned to regulate temperature of water inside the drum. It has three connections: Phase, notral and ground connections. 8.2.1. Technical Features Tubular heating element with NTC – sensor Kind of heating Nominal voltage 230 V 2000 W (±5%)
- Page 30 8.3. Component which sends signals to PCB about the water temperature inside the tub. The Resistance (Ohm) value of the NTC decreases as the temperature increases. 8.3.1. Technical Features Tem (°C) R min (kΩ) R max (kΩ) 54,9 62,6 43,0 48,6 33,9 38,1...
- Page 31 8.4. Valve Valve is an electrical and mechanical component which is designed to take water from the network system into the washine machine. It is operated by PCB card. 8.4.1. Technical Features 220 – 240 V Nominal voltage Nominal power 8 VA Frequency 50-60 Hz...
- Page 32 8.5. Electronic Pressure Switch (EPS) 8.5.1. Technical Features Electromagnetic field occurs as a result of the vibration of the membrane which is under pressure in the coil. The nucleus part is moved up and down by the electromagnetic field. The water level is regulated by the frequency which is controlled by the PCB and changes according to the movement of the nucleus part.
- Page 33 9.7. Motor The washing machine has an asynchronous motor. It is controlled by the PCB. It is essential to check the motor for correct diagnosis and quick servicing. In the below picture, socket points on the motor is shown to measure with multi meter.
- Page 34 8.7. Door Lock Door lock is activated at the beginning of the program in order to prevent the door from opening. It can be unlocked approximately after 2 minutes of the program end. This time delay is caused by the PTC which is assambled in the door lock. 8.7.1.
- Page 35 Reference Number: SM2410201600F4PY Wiring Diagram 9.1. F4 TOUCH WASHER EGO BLDC ELECTRICAL CONNECTION DIAGRAM Document without reference number is not valid.
