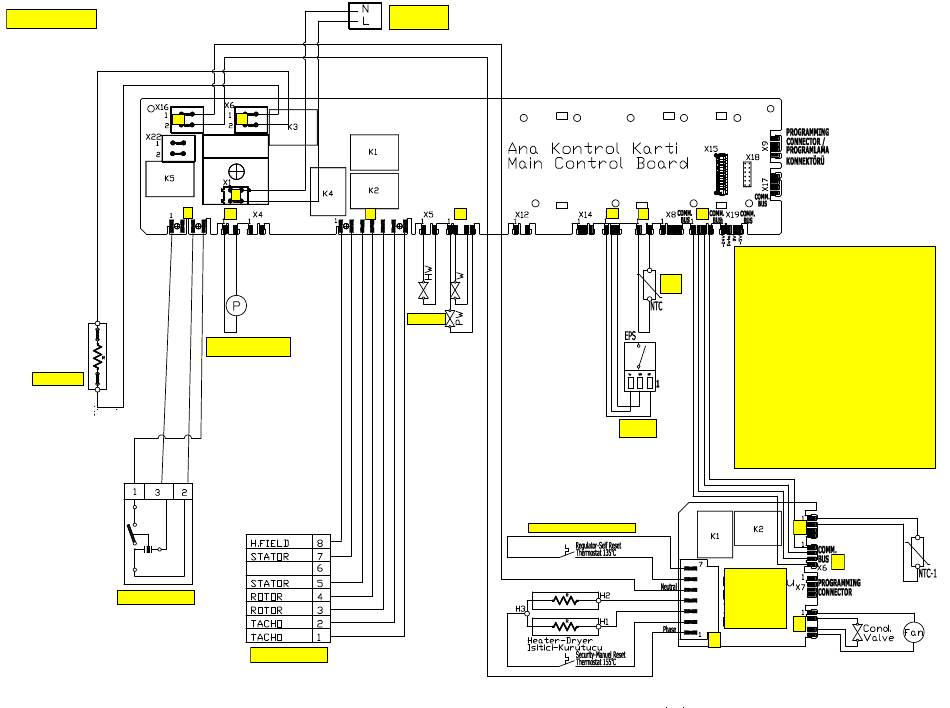

SCHEMA D4 WD
X16
X3
Résistance
Sécurité de porte
N = neutre = -
L = Phase = +
X6
X1
X10
X2
Pompe de
vidange
Moteur
X11
Electrovanne
Bloc résistances séchage + Thermostats sécurité
X13
X7
X21
Connexions module commande
X1 = Alimentation
X2 = Moteur
Sonde
NTC
X3 = Sécurité de porte
X6 = Résistance
X7 = Sonde température NTC
X10 = Pompe de vidange
X11 = Electrovanne (prélav + lav)
X13 = Pressostat EPS
X16 et X19 = Module séchage
Connexions module séchage
X1 = Bloc résistance + Connexion module
de commande (X16)
X2 = Ventilateur séchage
X4 = Sonde NTC séchage
Pressostat
électronique
X6 = Connexion module commande (X21)
Module
séchage
X1
X4
X6
X2
Advertisement
Table of Contents
Related Manuals for VESTEL D4 Series
Summary of Contents for VESTEL D4 Series
- Page 1 N = neutre = - SCHEMA D4 WD L = Phase = + Connexions module commande X1 = Alimentation X2 = Moteur Sonde X3 = Sécurité de porte X6 = Résistance X7 = Sonde température NTC Electrovanne X10 = Pompe de vidange X11 = Electrovanne (prélav + lav) Pompe de X13 = Pressostat EPS...
- Page 2 Service Manual D4 Series...
-
Page 3: Table Of Contents
7.5. Electronic Pressure Sensor (EPS)* ............................15 7.6. Motor ....................................16 7.8. Door Lock* .................................... 17 8. Wiring Diagram* ................................. 21 9. Troubleshooting ................................22 Prapared by Customer Technical Supoort Department in Vestel Washing Machine Plant – Manisa – Turkey Page 2... -
Page 4: Safety Precautions
Always use original spare parts. You may harm appliance, end user, environment or yourself using untested and unapproved 3rd party spare parts. Use right tools to prevent any wear or damage to components during assembly/disassembly. Prapared by Customer Technical Supoort Department in Vestel Washing Machine Plant – Manisa – Turkey Page 4... -
Page 5: Specifications
This avoids spinning while load is unbalanced and prevents any possible physical harm both to the appliance and to surroundings. Prapared by Customer Technical Supoort Department in Vestel Washing Machine Plant – Manisa – Turkey Page 5... -
Page 6: Control Panel And Acronyms
LED 3, Drying Level 2 LED LED 4, Drying Level 3 LED LED 5, Drying Level Option LED LED 6, Delay Time LED Prapared by Customer Technical Supoort Department in Vestel Washing Machine Plant – Manisa – Turkey Page 6... -
Page 7: Test Mode
(where XX is the error number 1 to 10 ) Please see following autotest chart for details. Prapared by Customer Technical Supoort Department in Vestel Washing Machine Plant – Manisa – Turkey Page 7... - Page 8 Dryer Ntc detection : Software will detect NTC's resistance value and will check if the temperature is between 0°C < Tdetected < 50°C. If it is inside the range, heating step will be done. Prapared by Customer Technical Supoort Department in Vestel Washing Machine Plant – Manisa – Turkey...
-
Page 9: Service Mode
If case of no error service autotest ends and "End" is displayed. *If user changes the selector position, machine will do what is defined for the new selected position. Prapared by Customer Technical Supoort Department in Vestel Washing Machine Plant – Manisa – Turkey Page 9... -
Page 10: Failure Codes
The bolts/nuts above are important for product safety purposes. Please tighten screw, bolts and nuts according to the torque values given in table above. Prapared by Customer Technical Supoort Department in Vestel Washing Machine Plant – Manisa – Turkey Page 10... -
Page 11: Component Specifications
Thermal protector Testing component Check the resistance value on the component with multimeter as shown below. Resistance value should be between 125 Ω (±5%) Prapared by Customer Technical Supoort Department in Vestel Washing Machine Plant – Manisa – Turkey Page 11... -
Page 12: Heater
2 sided Testing component Check the resistance value on the component with multimeter as shown below. Resistance value should be between 26.4 Ω ±5% Prapared by Customer Technical Supoort Department in Vestel Washing Machine Plant – Manisa – Turkey Page 12... -
Page 13: Washer Ntc
14.1 11.5 12.5 10.2 NTC Resistance vs. NTC Temperature Testing component Check the resistance value on the component with multimeter as shown below. Prapared by Customer Technical Supoort Department in Vestel Washing Machine Plant – Manisa – Turkey Page 13... -
Page 14: Valve
7 L/min ±15%. Dryer valve’s water flow rate should be 1.2 L/min ±15%. Washer valves’ coil resistance values should be 3750Ω ±10%. Dryer valve’s coil resistance value should be 5190Ω ±10%. Prapared by Customer Technical Supoort Department in Vestel Washing Machine Plant – Manisa – Turkey Page 14... -
Page 15: Electronic Pressure Sensor (Eps)
6. Check water level from door glass. The water level should be just below door glass as seen in the picture below: (There is a %10 tolerance with this level) Prapared by Customer Technical Supoort Department in Vestel Washing Machine Plant – Manisa – Turkey Page 15... -
Page 16: Motor
Tacho terminals Strator Terminals MOTOR BRAND STATOR TACHO Ω STATOR TEMP. CODE (FULL) Ω (HALF) Ω 32013066 ANAIMEP 1.20±7% 180±7% 0.55±7% 20 °C Prapared by Customer Technical Supoort Department in Vestel Washing Machine Plant – Manisa – Turkey Page 16... -
Page 17: Door Lock
Check the resistance value on the component with multi-meter as shown in below figures. Resistance value should be 1000Ω ±50% at 20 °C. Prapared by Customer Technical Supoort Department in Vestel Washing Machine Plant – Manisa – Turkey Page 17... - Page 18 Check the resistance value on the component with multi-meter as shown in below figures. Resistance value should be 82.7Ω ±3Ω at 20 °C. Prapared by Customer Technical Supoort Department in Vestel Washing Machine Plant – Manisa – Turkey Page 18...
- Page 19 Check the resistance value on the component with multi-meter as shown in below figures. Resistance value should be in 65.5 – 72.6 Ω range. Prapared by Customer Technical Supoort Department in Vestel Washing Machine Plant – Manisa – Turkey Page 19...
- Page 20 1.24 1.47 NTC Resistance vs. NTC Temperature Testing component Check the resistance value on the component with multi-meter as shown in below figures. Prapared by Customer Technical Supoort Department in Vestel Washing Machine Plant – Manisa – Turkey Page 20...
-
Page 21: Wiring Diagram
-There should be enough ventilation space from ground. -Other environmental specifications and requirements should be met which are mentioned in instruction book of WM. Prapared by Customer Technical Supoort Department in Vestel Washing Machine Plant – Manisa – Turkey Page 22... - Page 22 -There should be enough ventilation space from ground. -Other environmental specifications and requirements should be met which are mentioned in instruction book of WM. Prapared by Customer Technical Supoort Department in Vestel Washing Machine Plant – Manisa – Turkey Page 23...
- Page 23 -There should be enough ventilation space from ground. -Other environmental specifications and requirements should be met which are mentioned in instruction book of WM. Prapared by Customer Technical Supoort Department in Vestel Washing Machine Plant – Manisa – Turkey Page 24...
- Page 24 -There should be enough ventilation space from ground. -Other environmental specifications and requirements should be met which are mentioned in instruction book of WM. Prapared by Customer Technical Supoort Department in Vestel Washing Machine Plant – Manisa – Turkey Page 25...
- Page 25 -There should be enough ventilation space from ground. -Other environmental specifications and requirements should be met which are Replace PCB mentioned in instruction book of WM. Prapared by Customer Technical Supoort Department in Vestel Washing Machine Plant – Manisa – Turkey Page 26...
- Page 26 -There should be enough ventilation space from ground. -Other environmental specifications and requirements should be met which are mentioned in instruction book of WM. Prapared by Customer Technical Supoort Department in Vestel Washing Machine Plant – Manisa – Turkey Page 27...
- Page 27 -There should be enough ventilation space from ground. -Other environmental specifications and requirements should be met which are mentioned in instruction book of WM. Prapared by Customer Technical Supoort Department in Vestel Washing Machine Plant – Manisa – Turkey Page 28...
- Page 28 -There should be enough ventilation space from ground. -Other environmental specifications and requirements should be met which are mentioned in instruction book of WM. Prapared by Customer Technical Supoort Department in Vestel Washing Machine Plant – Manisa – Turkey Page 29...
- Page 29 -There should be enough ventilation space from ground. -Other environmental specifications and requirements should be met which are mentioned in instruction book of WM. Prapared by Customer Technical Supoort Department in Vestel Washing Machine Plant – Manisa – Turkey Page 30...
- Page 30 -There should be enough ventilation space from ground. -Other environmental specifications and requirements should be met which are mentioned in instruction book of WM. Prapared by Customer Technical Supoort Department in Vestel Washing Machine Plant – Manisa – Turkey Page 31...
