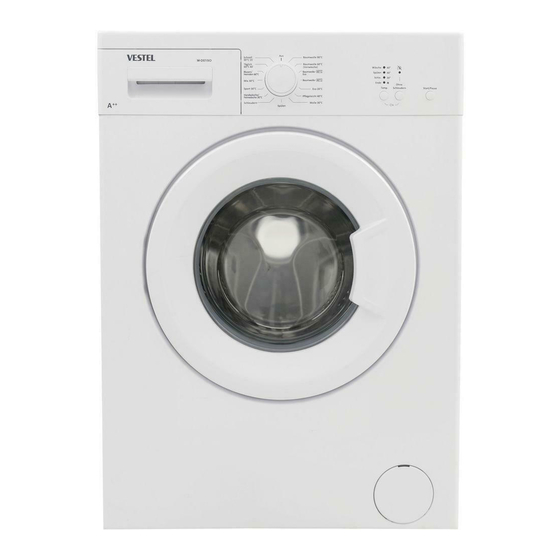

- Page 1 Washing Machine / User Manual W-D015O...
- Page 2 Thank you for choosing this product. This User Manual contains important safety information and instructions on the operation and maintenance of your appliance. Please take the time to read this User Manual before using your appliance and keep this book for future reference. Icon Type Meaning...
-
Page 3: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS ....................1 1.1 General Safety Warnings ....................2 1.2 During Use ........................6 1.3 Packaging and Environment...................7 1.4 Savings Information ......................7 2. TECHNICAL SPECIFICATIONS ..................8 2.1 General Appearance.......................8 2.2 Technical Specifications ....................8 3. INSTALLATION .........................9 3.1 Removing the Transit Bolts.....................9 3.2 Adjusting the Feet / Adjusting Adjustable Stays..............9 3.3 Electrical Connection ......................9 3.4 Water Inlet Hose Connection ..................10... -
Page 4: Safety Instructions
1. SAFETY INSTRUCTIONS Operating voltage / frequency (V/Hz) (220-240) V~/50Hz Total current (A) Water pressure (Mpa) Maximum 1 Mpa / Minimum 0. 1Mpa Total power (W) 2100 Maximum washing capacity 5. 0 (dry laundry) (kg) • Do not install your machine on a carpet or such grounds that would prevent the ventilation of its base. -
Page 5: General Safety Warnings
NOTE: For a softcopy of this user manual, please contact the following address: “washingmachine@ standardtest. info”. In your e-mail, please provide the model name and serial number (20 digits) which you can find on the appliance door. Read this user manual carefully. Your machine is for domestic use only. - Page 6 water supply if the Washing Machine is left unused for a long time. We also recommend that you leave the door open to prevent build up of humidity inside the Washing Machine. • Some water may be left in your Washing Machine as a result of quality checks during production. This will not affect the operation of your Washing Machine. • The packaging of the machine could be hazardous to children. Do not allow children to play with the packaging or small parts from the Washing Machine. • Keep the packaging materials in a place where children cannot reach them, or dispose of them appropriately. • Use pre-wash programs only for very dirty laundry. Never open the detergent drawer while the machine is running. • In the event of a breakdown, unplug the machine from the mains supply and turn the water supply off. Do not attempt to carry out any repairs. Always contact an authorised service agent. • Do not exceed the maximum load for the washing programme you have chosen. Never force the door open when your Washing Machine is running. • Washing laundry containing flour may damage your machine. • Please follow the manufacturers’ instructions regarding the use of fabric conditioner or any similar products that you intend to use in your Washing Machine.
- Page 7 • Install your machine in a location that can be fully ventilated and preferably has constant air circulation. Read these warnings. Follow the advice given to protect yourself and others from risks and fatal injuries. RISK OF BURNS Do not touch the drain hose or any discharged water while your Washing Machine is running.
- Page 8 secured. Make sure the plug in your sink does not block the plug hole. Danger of Fire • Do not store inflammable liquids near your machine. • The sulphur content of paint removers may cause corrosion. Never use paint removing materials in your machine. • Never use products that contain solvents in your machine. • Please ensure that garments loaded into your Washing Machine are free from foreign objects such as nails, needles, lighters and coins. Risk of fire and explosion Risk of falling and injury • Do not climb on your Washing Machine. • Make sure hoses and cables do not cause a trip hazard. • Do not turn your Washing Machine upside down or on its side. • Do not lift your Washing Machine using the door or detergent drawer.
-
Page 9: During Use
and cleaning materials are consumed or come into contact with the skin and eyes. Keep cleaning materials out of the reach of children. 1.2 During Use • Keep pets away from your machine. • Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened. • Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void. • This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards... -
Page 10: Packaging And Environment
sources of damage. • Please do not throw away this user manual; keep it for future reference and pass it onto the next owner. NOTE: Specifications for the machine may vary depending on the product purchased. 1.3 Packaging and Environment Removal of packaging materials Packaging materials protect your machine from any damage that might occur during transportation. The packaging materials are environmentally friendly as they are recyclable. Use of recycled material reduces raw material consumption and decreases waste production. 1.4 Savings Information Some important information to get the most efficient use out of your machine: • Do not exceed the maximum load for the washing programme you have chosen. This will allow your machine to run in energy saving mode. • Do not use the pre-wash feature for lightly soiled laundry. This will help you save on the amount of electricity and water consumed. CE Declaration of conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced. -
Page 11: Technical Specifications
2. TECHNICAL SPECIFICATIONS 2.2 Technical Specifications Operating voltage / (220-240) frequency V~/50Hz (V/Hz) Total current Maximum: Water 1 Mpa pressure Minimum : (Mpa) 0. 1 Mpa Total power 2100 Maximum dry laundry capacity (kg) Spinning revolution 1000 (rev / min) Programme number 2.1 General Appearance Dimensions 1. -
Page 12: Installation
3. INSTALLATION 3.2 Adjusting the Feet / Adjusting Adjustable Stays 3.1 Removing the Transit Bolts 1. Do not install your machine on a surface (such as carpet) that would prevent ventilation at the base. • To ensure silent and vibration-free operation of your machine, install it on a firm surface. • You can level your machine using the adjustable feet. • Loosen the plastic locking nut. 1. Before operating the washing machine, remove the 4 transit bolts and rubber spacers from the rear of the machine. If the bolts are not removed, they may cause heavy vibration, noise and malfunction of the machine and void the warranty. -
Page 13: Water Inlet Hose Connection
• The mains cord of your washing should be connected to cold water inlet machine is equipped with an earthed and red capped hose to the hot water plug. This plug should always be inlet (if applicable). inserted to an earthed socket of 10 • To prevent water leaks at the joints, amps. either 1 or 2 nuts (depending on your machine’s specifications) are supplied • If you do not have a suitable socket and in the packaging with the hose. Fit these fuse conforming with this, please ensure nuts to the end(s) of the water inlet hose the work is carried out by a qualified that connect to the water supply. electrician. 2. Connect new water inlet hoses to a ¾ ˝, • We do not take responsibility for threaded tap. damage that occurs due to the use of ungrounded equipment. -
Page 14: Water Discharge Connection
3.5 Water Discharge Connection 4.1 Detergent Drawer • Connect the water drain hose to a standpipe or to the outlet elbow of a household sink, using additional equipment. • Never attempt to extend the water drain hose. • Do not put the water drain hose from your machine into a container, bucket or bathtub. • Make sure that the water drain hose is not bent, buckled, crushed or extended. • The water drain hose must be installed at a maximum height of 100 cm from the ground. 4. CONTROL PANEL OVERVIEW 1. Detergent Drawer 2. Programme Dial 3. -
Page 15: Sections
4.2 Sections 4.3 Program Dial Main wash detergent compartment: This compartment is for liquid or powder detergents or limescale remover. The fluid detergent level plate will be supplied inside your machine. (*) • To select the desired programme, turn Fabric conditioner, starch, detergent the programme dial either clockwise or compartment: anti-clockwise until the marker on the programme dial points to the chosen programme. • Make sure that the programme dial is set exactly to the programme you want. 4.4 Electronic Display This compartment is for softeners, conditioners or starch. Follow the instructions on the packaging. If softeners leave residue after use, try diluting them or using a liquid softener. -
Page 16: Using Your Washing Machine
wash / wash state, rinsing stage, spinning CAUTION: stage). Any malfunctions which occur due to foreign materials The display panel shows “Finished” when damaging your machine are not covered by the selected programme is complete. The the warranty. display panel also indicates if a fault has occurred with your machine. 4. Close zips and fasten any hooks and eyes. 5. USING YOUR 5. Remove the metallic or plastic hooks of WASHING MACHINE curtains or place them in a washing net or bag. 6. Reverse textiles such as pants, 5.1 Preparing Your Laundry knitwear, t-shirts and sweat shirts. 7. Wash socks, handkerchiefs and other small items in a washing net. Can be Normal Do not bleach bleached washing Maximum... -
Page 17: Adding Detergent To The Machine
• Spread your laundry evenly in the washing machines. Follow the machine. manufacturer’s instructions on the NOTE: amount of detergent to use. Take care not to exceed the maximum load of the drum as this will • In areas of hard water, more detergent give poor wash results and cause creasing. will be required. Refer to the washing programme tables for • The amount of the detergent required information on load capacities. will increase with higher washing loads. The following table shows approximate • Put softener in the middle compartment weights of typical laundry items: of the detergent drawer. Do not exceed LAUNDRY TYPE WEIGHT (gr) the MAX level. -
Page 18: Half-Load Detection System
5.6 Half-Load Detection System 1. Temperature Selection Your machine features a half-load detection system. If you put less than half the maximum Wash Temp. Rinse load of laundry into your machine it will Spin automatically set the half-load function, regardless of the programme you selected. This means that the selected programme will take less time to complete and will use less water and energy. (*) Model Dependant Use the washing water temperature adjustment button to alter the automatically 5.7 Additional Functions programmed washing water temperature. When you select a programme, the maximum temperature for that programme Wash is automatically selected. To adjust the... - Page 19 the end of the selected wash programme, washing programme takes place. When press the No Spin button when the using this function, you should put symbol is displayed. detergent in the front washing compartment of the detergent drawer. To select this function, press the Pre-wash 3. Anti- Allergic(*) button when the symbol is displayed. 6. Extra Rinse(*) Anti- Wash allergic Rinse Spin Wash Extra Rinse rinse Spin You can add an additional rinse operation to your laundry using this additional function. Your machine will carry out all rinsing steps You can add an additional rinse operation with hot water. We recommend this setting to the end of the selected wash programme...
-
Page 20: Child Lock
programme. If any button is pressed while the child lock is active, the Additional Function LEDs on To select this function, press the Rapid the control panel will blink. wash button when the symbol is displayed. If the child lock is engaged and any programme is running, when the NOTE: programme dial is turned to the CANCEL If you put less than position and another programme selected, half the maximum load of laundry into the previously selected programme your machine, the half-load function will continues from where it was left. be automatically set, regardless of the To deactivate the child lock, press and programme you selected. This means hold additional functions 1 and 2 buttons that the selected programme will take less simultaneously for at least 3 seconds. The time to complete and will use less water Additional Function LEDs will will blink on and energy. When your machine detects the display. half load, the symbol is displayed automatically. 5.9 Cancelling the Programme To cancel a running programme at any (*) Model Dependant... -
Page 21: Programme Table
6. PROGRAMME TABLE Programme Laundry type / Descriptions Very dirty, cotton and flax textiles. (Underwear, linen, COTTON 90° 90° tablecloth, towel (maximum 2,5 kg), bedclothes, etc. ) Dirty cotton and flax textiles. (Underwear, linen, Pre-Wash Cotton 60° 1&2 tablecloth, towel (maximum 2,5 kg), bedclothes, etc. ) COTTON ECO Dirty cotton and flax textiles. (Underwear, linen, 60° tablecloth, towel (maximum 2,5 kg), bedclothes, etc. ) 60 C° Dirty cotton and flax textiles. (Underwear, linen, 40° 40 C° COTTON tablecloth, towel (maximum 2,5 kg), bedclothes, etc. ) Less dirty, cotton and linen textiles. (Underwear, ECO 20° 20° bedsheet, tablecloth, towel (max. 2 kg) bedcloth, etc. ) Very dirty or synthetic-mixed textiles. (Nylon socks, EASY CARE 40°... -
Page 22: Cleaning And Maintenance
7. CLEANING AND 7.2 Water Inlet Filters Water inlet filters prevent dirt and foreign MAINTENANCE materials from entering your machine. We recommend that these filters are cleaned when your machine is unable to receive 7.1 Warning sufficient water, although your water supply is on and the tap is open. We recommend that you clean your water inlet filters every 2 months. Turn your mains power supply off and remove • Unscrew the water inlet hose(s) from the plug from the socket the Washing Machine. • To remove the water inlet filter from the before carrying out water inlet valve, use a pair of long- maintenance and cleaning nosed pliers to gently pull on the plastic bar in the filter. of your machine. • A second water inlet filter is located in the tap end of the water inlet hose. To Turn off the water... -
Page 23: Pump Filter
7.3 Pump Filter meet the holes on the front panel side. 6. Close the filter cover. WARNING: The water in the pump may be hot, wait until it has cooled down before carrying out any cleaning or maintenance. (*) Specifications may vary depending on the machine purchased. 7.4 Detergent Drawer The use of detergent may cause residual build up in the detergent drawer over time. We recommend that you remove the drawer every 2 months to clean the accumulated residue. The pump filter system in your Washing Machine prolongs the life of the pump by preventing lint from entering your machine. To remove the detergent drawer: We recommend that you clean the pump filter every 2 months. -
Page 24: Flush Stopper / Body / Drum
8. FLUSH STOPPER / BODY / DRUM 1. Flush stopper Remove the detergent drawer and disassemble the flush stopper. Clean thoroughly to completely remove any softener residue. Refit the flush stopper after cleaning and check that it is seated properly. 2. Body Use a mild, non-abrasive cleaning agent, or soap and water, to clean the external casing. Wipe dry with a soft cloth. 3. Drum Do not leave metallic objects such as needles, paper clips, coins etc. in your machine. These objects lead to the formation of rust stains in the drum. To clean such rust stains, use a non-chlorine... -
Page 25: Troubleshooting
9. TROUBLESHOOTING Repair of your machine should be carried out by an authorised service company. If your machine requires repair or if you cannot solve an issue with the information provided below, then you should: • Unplug your machine from the mains power supply. • Turn off the water supply. FAULT POSSIBLE CAUSE TROUBLESHOOTING Machine not plugged in. Plug machine in. Fuses are faulty. Replace the fuses. No mains power supply. Check mains power. Your machine does not start. Start/Pause button not pressed. Press the Start/Pause button. Programme dial ‘stop’ position. Turn the programme dial to the desired position. -
Page 26: Automatic Fault Warnings And What To Do
FAULT POSSIBLE CAUSE TROUBLESHOOTING Increase the amount of detergent following the Hard water. manufacturer’s instructions. Unsatisfactory washing result. Your laundry is too tightly packed Check that your laundry is spread out. together in the drum. As soon as the machine is The end of water drain hose is too Check that the drain hose is at a suitable height. loaded with water, water low for the machine. (**) . discharges. No water appears in the No fault. Water is in the unseen ..... drum during washing. -
Page 27: Describing The Energy Label And Saving Energy
11. DESCRIBING THE ENERGY Use programmes of shorter duration for lightly soiled laundry and daily washes. LABEL AND SAVING ENERGY Carry out cleaning and maintenance at regular intervals. 1. Brand 2. Model 3. Energy Class 4. Energy Consumption 5. Noise Value While Washing 6. Noise Value While Spinning 7. Annual Water Consumption 8. Dry Laundry Capacity 9. Spinning Performance Energy use and water consumption may vary based on water pressure, water hardness, water temperature, ambient temperature, amount of laundry, additional function selection and voltage fluctuations. - Page 28 52288009...
