Wen 23006 Manual

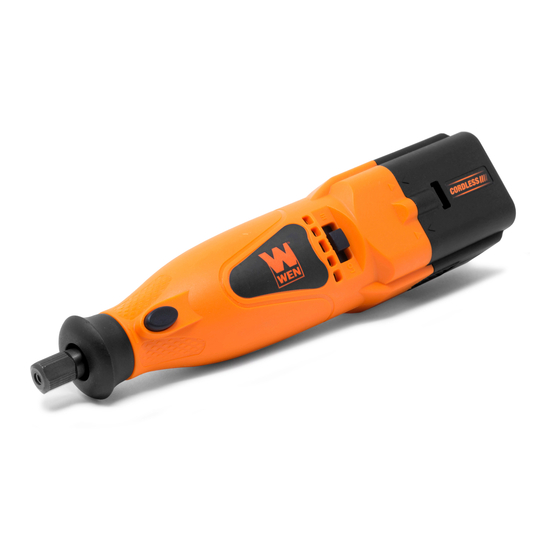

Cordless rotary tool
Hide thumbs

Advertisement

Quick Links

Download this manual
For replacement parts visit
WENPRODUCTS.COM
Your new tool has been engineered and manufactured to WEN's highest standards for dependability, ease
of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If
you use your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
NOTICE: Please refer to wenproducts.com for the most up-to-date instruction manual.
IMPORTANT:
NEED HELP? CONTACT US!
Have product questions? Need technical support?
Please feel free to contact us at:
800-232-1195
techsupport@wenproducts.com
WENPRODUCTS.COM
MODEL 23006
CORDLESS
ROTARY TOOL
(M-F 8am-5pm CST)
3065544

Advertisement

loading
Need help?

Need help?

Do you have a question about the 23006 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wen 23006

Summary of Contents for Wen 23006

  • Page 1 3065544 IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.

  • Page 2: Table Of Contents

    Assembly and Adjustments ..............8 Operation ..................12 Maintenance .................13 Exploded View & Parts List ............14 Warranty Statement ..............16 SPECIFICATIONS Model Number 23006 Power DC 6V, 4 x AA Batteries (not included) Low: 7,000 RPM No-Load Speed High: 14,000 RPM Max Collet Capacity 1/8 in.

  • Page 3: Introduction

    INTRODUCTION Thanks for purchasing the WEN Rotary Tool. We know you are excited to put your tool to work, but first, please take a moment to read through the manual. Safe operation of this tool requires that you read and understand this operator’s manual and all the labels affixed to the tool.

  • Page 4: Rotary Tool Safety Rules

    ROTARY TOOL SAFETY RULES Safety is a combination of common sense, staying alert and knowing how your item works. SAVE THESE SAFETY INSTRUCTIONS. WARNING: Read and understand all warnings, cautions and operating instructions before using this tool. Failure to follow all instructions listed below may result in personal injury and tool damage. OPERATING ENVIRONMENT 1.
  • Page 5 ROTARY TOOL SAFETY RULES ROTARY TOOL ACCESSORIES 1. The rotary tool accessory must have a rated speed higher than 25,000 RPM (the maximum operating speed of your rotary tool), otherwise there is a risk of injury. 2. The spindle diameter of the accessory bit must match the size of the collet. The included collet size is 1/8 inch (3.2 mm);...
  • Page 6 ROTARY TOOL SAFETY RULES ROTARY TOOL MAINTENANCE 1. Battery tools do not need to be plugged into an electrical outlet, therefore they are always ready to oper- ate. Beware of the possible hazards when not using your battery tool or when changing accessories. Fol- lowing this rule will reduce the risk of electric shock, fire or personal injury.
  • Page 7 ROTARY TOOL SAFETY RULES VIBRATION SAFETY This tool vibrates during use. Repeated or long-term exposure to vibration may cause temporary or per- manent physical injury, particularly to the hands, arms and shoulders. To reduce the risk of any vibration- related injury: 1.

  • Page 8: Know Your Rotary Tool & Accessories

    KNOW YOUR ROTARY TOOL & ACCESSORIES Carefully unpack the tool and accessories. Check all components and compare against the list below. If any part is damaged or missing, please contact our customer service at (800) 232-1195, M-F 8-5 CST or email techsupport@wenproducts.com.
  • Page 9 KNOW YOUR ROTARY TOOL & ACCESSORIES Accessory Explanation & Applications Installs into the tool's spindle for holding a rotary tool bit in place. Your tool Collet (Ø1/8) comes with one Ø1/8"collet. The shank diameter of the rotary tool bit must match the size of the collet.

  • Page 10: Preparation & Assembly

    PREPARATION & ASSEMBLY WARNING: To avoid injuries from accidental startups, always ensure that the tool is switched OFF and the battery pack is removed before making adjustments or changing accessories. INSTALLING SANDING BANDS (FIG. 1) 1. Loosen the flat-head screw on the top of the sanding drum Sanding Drum Sanding Band using the back of the included 2-in-1 wrench.
  • Page 11 PREPARATION & ASSEMBLY WARNING: Follow the safety instructions when handling batteries. • Do not mix batteries of different types or different brands. Do not mix old and new batteries. • Do not short circuit batteries. • Do not keep batteries near fire, sources of heat, or use in direct sunlight. •...

  • Page 12: Operation

    OPERATION WARNING: Read and thoroughly understand all instructions and safety information before operat- ing this rotary tool. Failure to do so may cause personal injuries. WARNING: Always wear ANSI Z87.1-approved safety glasses, safety gloves and suitable work clothing. Do not wear jewelry or other loose clothing which could get caught in moving parts. Hold the tool away from your face and body in case parts and chips fly out unexpectedly during operation.

  • Page 13: Maintenance

    MAINTENANCE WARNING: To prevent accidental startups, always turn OFF and remove the battery pack from the tool before cleaning or performing maintenance. IMPORTANT: Servicing of the tool requires extreme care and knowledge and should be performed only by a qualified service technician using identical replacement parts. CLEANING &...

  • Page 14: Exploded View & Parts List

    EXPLODED VIEW & PARTS LIST...
  • Page 15 EXPLODED VIEW & PARTS LIST Part No. Description Qty. 23006-001 Collet Nut 23006-002 Collet (1/8”/3.2 mm) 23006-003 Locking Collar 23006-004 Spindle Assembly 23006-004.1 Spindle 23006-004.2 Bearing 695Z 23006-004.3 Brake Bushing 23006-005 Spindle Lock Assembly 23006-005.1 Spindle Lock Button 23006-005.2 Spindle Lock...

  • Page 16: Warranty Statement

    WARRANTY STATEMENT WEN Products is committed to building tools that are dependable for years. Our warranties are consistent with this commitment and our dedication to quality. LIMITED WARRANTY OF WEN CONSUMER POWER TOOLS PRODUCTS FOR HOME USE GREAT LAKES TECHNOLOGIES, LLC (“Seller”) warrants to the original purchaser only, that all WEN consumer power tools will be free from defects in material or workmanship for a period of two (2) years from date of purchase.
