Installing an AGP Card in the Silicon Graphics® 230, 330, and 550 Visual Workstations
• If you have to handle a component before installation, do not place it on surfaces
that produce ESD (carpeting, for example), or near devices that create static
electricity.
• Attach a static wrist strap to a grounded connection on your system when installing
or removing a component.
To install the AGP card, follow these steps:
1. Remove the side panel as described in "Pre-installation Instructions" on page 1, if
not already done.
2. If a filler plate covers the slot opening selected for installation, follow these
instructions to remove it:
• Remove the retaining screw shown in Figure 2.
• Remove the filler plate from the chassis.

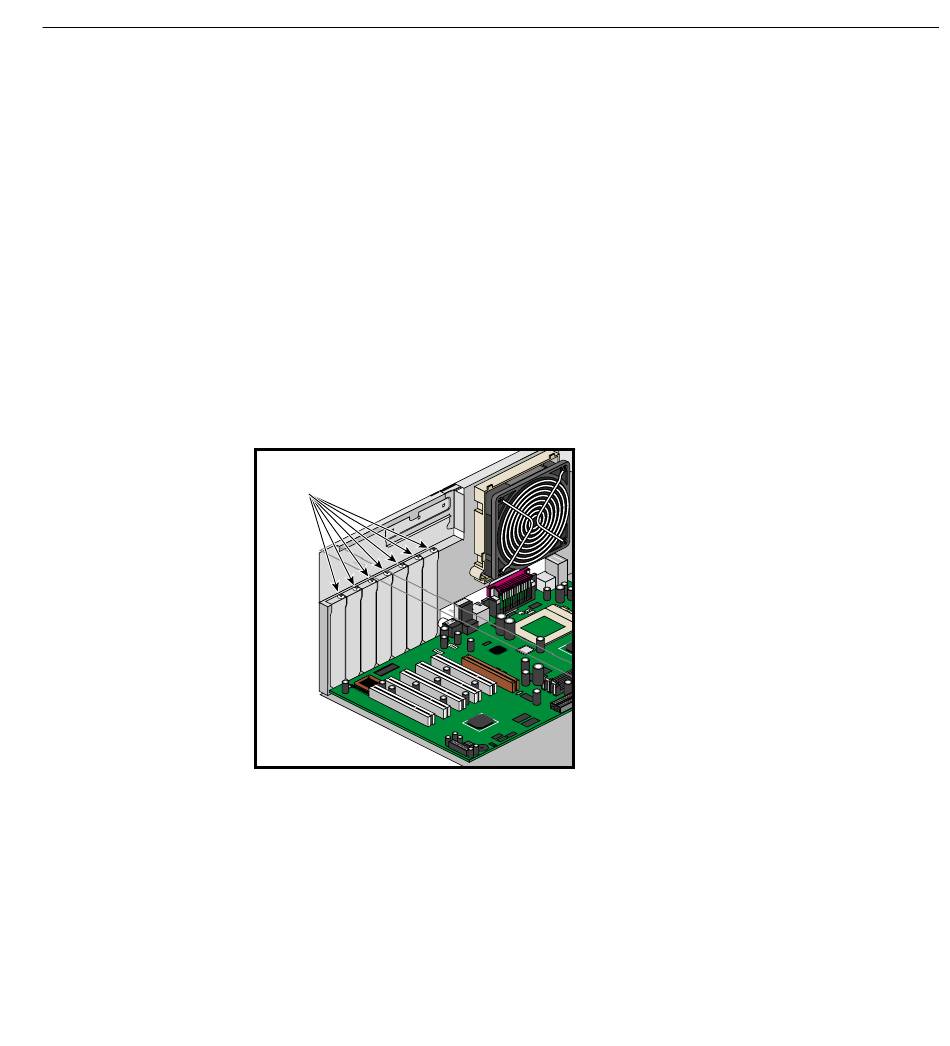

Filler plate
retaining screws
Figure 2 Location of the Retaining Screw
for the Expansion Slot Filler Plate
3. Insert the AGP card into the AGP slot by pushing the card into the connector until it
is properly seated. Figure 3 illustrates the procedure.
4. Tighten the retaining screw, as shown in Figure 3.
