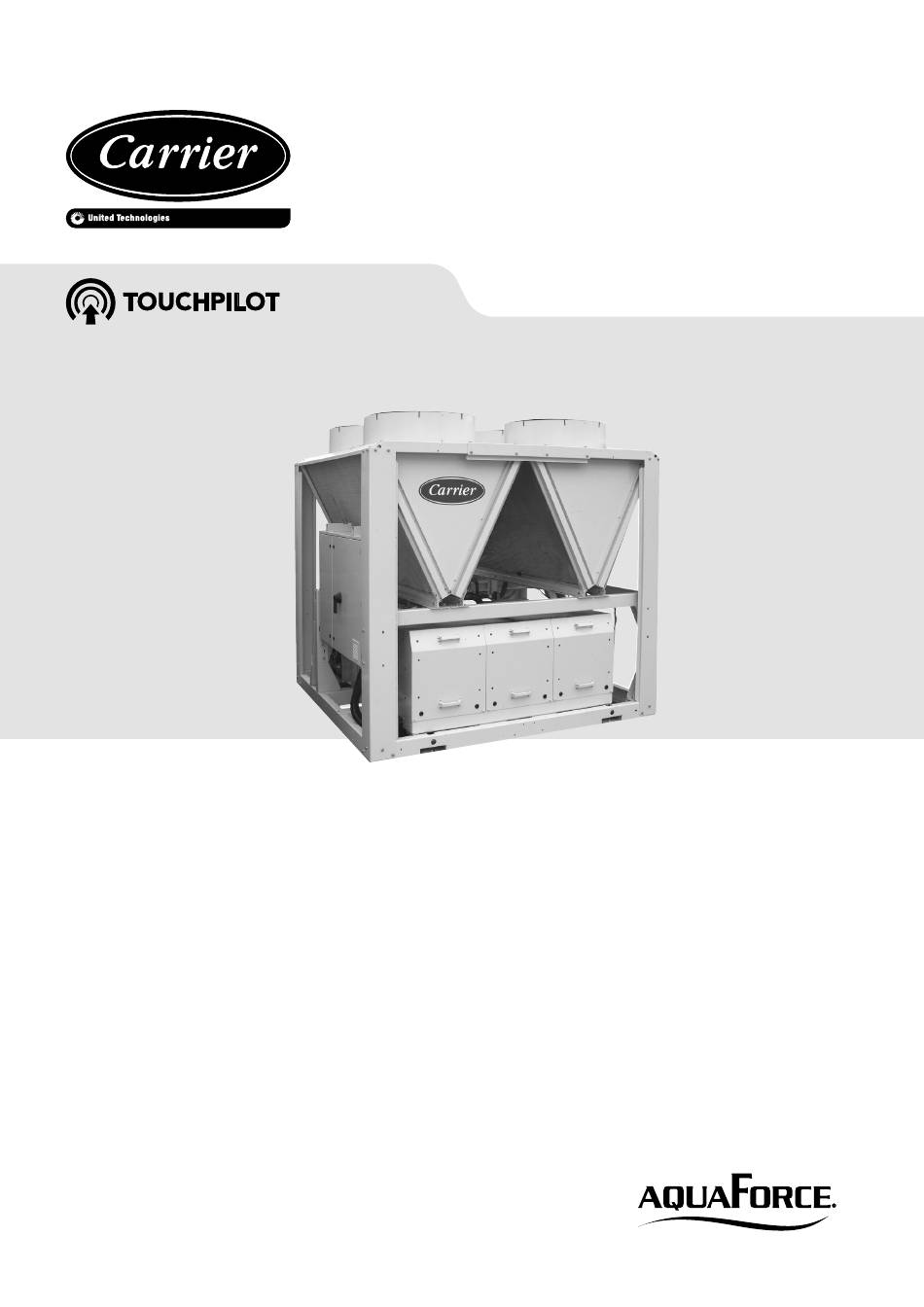

- Page 1 I N S TA L L AT I O N , O P E R AT I O N A N D M A I N T E N A N C E I N S T R U C T I O N S Unit with option 279 (compressor enclosure) Air-Cooled Liquid Chillers 30XAS “A”...
-
Page 3: Table Of Contents
CONTENTS 1 - INTRODUCTION .................................... 5 1.1 - Installation safety considerations .............................. 5 1.2 - Equipment and components under pressure ..........................6 1.3 - Maintenance safety considerations ............................6 1.4 - Repair safety considerations ..............................7 2 - PRELIMINARY CHECKS ................................9 2.1 - Check equipment received ................................ - Page 4 CONTENTS 9 - MAJOR SYSTEM COMPONENTS AND OPERATION DATA ..................... 28 9.1 - Direct-drive twin-screw compressor with variable capacity slide valve ................... 28 9.2 - Pressure vessels ..................................28 9.3 - Control and safety ................................... 29 9.4 - Condensers ..................................... 29 9.5 - Fans ......................................
-
Page 5: Introduction
Only one of the two relief valves is in operation, shipping company. the other one is isolated. Never leave the change-over valve Carrier strongly recommends employing a specialised in the intermediate position, i.e. with both ways open (Bring company to unload the machine. -
Page 6: Equipment And Components Under Pressure
In the EU, the regulation is called F-Gas, N°517/2014. Carrier recommends the following drafting for a logbook (the table below should not be considered as reference and does not involve 2. Ensure that the refrigerant is never released to the... -
Page 7: Repair Safety Considerations
Never use air or a gas containing oxygen during leak tests to purge lines or to pressurise a machine. Pressurised air Consult Carrier Service for this type of test. Carrier mentions here only the principle of a test without removing the pressure switch: mixtures or gases containing oxygen can be the cause of an explosion. - Page 8 1 - INTRODUCTION During refrigerant removal and storage operations follow ATTENTION: No part of the unit must be used as a walk-way, applicable regulations. These regulations, permitting conditioning rack or support. Periodically check and repair or if necessary and recovery of halogenated hydrocarbons under optimum quality replace any component or piping that shows signs of damage.
-
Page 9: Preliminary Checks
2 - PRELIMINARY CHECKS 2.1 - Check equipment received 2.2 - Moving and siting the unit - Inspect the unit for damage or missing parts. If damage is 2.2.1 - Moving detected, or if shipment is incomplete, immediately file a claim with the shipping company. - Confirm that the unit received is the one ordered. Compare See chapter 1.1 “Installation safety considerations”. the name plate data with the order. - Page 10 2 - PRELIMINARY CHECKS 2.2.2 - Siting the unit 2.2.3 - Checks before system start-up Always refer to the chapter “Dimensions and clearances” to confirm Before the start-up of the refrigeration system, the complete that there is adequate space for all connections and service installation, including the refrigeration system must be veri-fied operations. For the centre of gravity coordinates, the position of ...
-
Page 11: Dimensions, Clearances
3 - DIMENSIONS, CLEARANCES 3.1 - 30XAS 242 3.2 - 30XAS 282-342 NOTE: Drawings are not contractually binding. Before Legend All dimensions are given in mm. designing an installation, consult the certified dimensional Required clearances for maintenance and air flow drawings supplied with the unit or available on request. Recommended space for evaporator tube removal For the positioning of the fixing points, weight distribution Water inlet... -
Page 12: 30Xas 442-482
It is recommended to install multiple chillers in a single row, To ensure correct operation for most cases: arranged as shown in the example below, to avoid recycling of If h < H (2.3 m), minimum S = 3 m warm air from one unit to another. If h > H or S < 3 m, contact your Carrier distributor. 1,5 m 1,5 m mini mini If the situation at the site does not permit this arrangement, contact your Carrier distributor to estimate the space required between units. Anti-vibration mounts... -
Page 13: Physical And Electrical Data For 30Xas Units
4 - PHYSICAL AND ELECTRICAL DATA FOR 30XAS UNITS 4.1 - Physical data 30XAS - standard and high-efficiency units (option 119), options 254/255/116C 30XAS Sound levels - Standard unit Sound power level dB(A) Sound pressure level at 10 m dB(A) Standard unit + option 279 Sound power level dB(A) - Page 14 4 - PHYSICAL AND ELECTRICAL DATA FOR 30XAS UNITS 30XAS Condensers All-aluminium microchannel heat exchanger (MCHE) Fans Axial Flying Bird IV fans with rotating shroud Standard unit and unit + options 119/254 Quantity Standard unit Maximum total air flow 13667 17083 20500 23917 27333 Max speed 11,7...
-
Page 15: Electrical Data
II Ambient air temperature ° C < 40 Please refer to the operating conditions given in this manual or in IV Maximum air temperature ° C the specific conditions in the Carrier selection programs. V Potentially explosive atmospheres Non-Atex environment (1) Required by regulation 640/2009 with regard to the application of directive 2009/125/EC on the eco-design requirements for electric motors (2) Item number imposed by regulation 640/2009, annex I2b. (3) Description given by regulation 640/2009, annex I2b. (4) To obtain the maximum power input for a unit with hydraulic module add the maximum unit power input from the electrical data table to the pump power input. -
Page 16: Short-Circuit Stability Current For All Units
60364). For IT networks derived currents may interfere with network monitoring • The Carrier 30XAS units are designed and built to ensure conformance with elements, and it is recommended to create an IT type divider for the system these codes. The recommendations of European standard EN 60 204-1 units that require this and/or a TN type divider for Carrier units. Please consult ... -
Page 17: Electrical Connection
The power cables can enter the control box from below or from which will invalidate the Carrier warranty. If the phase the unit side. imbalance exceeds 2% for voltage, or 10% for current, contact... -
Page 18: Application Data
6 - APPLICATION DATA 6.1 - Operating range Evaporator water temperature, °C Minimum Maximum Water entering temperature at start-up 30XAS standard unit Water entering temperature during operation Water leaving temperature during operation Note: If the leaving water temperature is below 4 °C, a glycol/water solution or the frost protection option must be used. Condenser air temperature, °C Minimum Maximum Storage Operation, standard unit... -
Page 19: Variable Flow Evaporator
6 - APPLICATION DATA 6.4 - Variable flow evaporator 6.6 - Maximum system water volume Variable evaporator flow can be used in standard 30XAS chillers. Units with hydraulic module incorporate an expansion tank that The chillers maintain a constant leaving water tem-perature under limits the water volume. The table below gives the maximum loop all flow conditions. For this to happen, the minimum flow rate must ... -
Page 20: Water Connections
Carrier are used, ensure that the fluids are not considered as a gas, and that they belong to class 2, as defined in directive 2014/68/EU. Carrier recommendations on heat exchange fluids: - No NH ammonium ions in the water, they are very detrimental for copper. This is one of the most impor-tant factors for the operating life of copper piping. -
Page 21: Flow Control
7 - WATER CONNECTIONS 7.3 - Flow control Evaporator flow switch and chilled water pump interlock IMPORTANT: On 30XAS units, the unit water flow switch must be energised. Failure to follow this instruction will void the Carrier guarantee. The water flow switch is installed on the evaporator water inlet and adjusted by the control, based on unit size and application. If adjustment is necessary, it must be carried out by qualified personnel trained by Carrier Service. Typical water circuit diagram Legend Hydraulic module defrost heater (option) Components of the unit and hydraulic module 10 Air vent (evaporator) A ... -
Page 22: Frost Protection
7 - WATER CONNECTIONS 7.5 - Frost protection 7.6 - Operation of two units in master/slave mode (option 58) 7.5.1 - Standard machine The control of a master/slave assembly is in the entering water and does not require any additional sensors (standard If the chiller or the water piping is in an area where the ambient configuration). It can also be located in the leaving water. In this ... -
Page 23: Pump Characteristics
7 - WATER CONNECTIONS 7.7 - Pump characteristics Data applicable for: - Fresh water 20 °C, - In case of use of the glycol, the maximum water flow is reduced, - When the glycol is used, it’s limited to 40%. 7.7.1 - Available external static pressure (option 116C: hydraulic module) Water flow rate, l/s 7.7.2 - NPSH (Net Positive Suction Head) required (option 116C: hydraulic module) Size the hydraulic circuit to ensure that the NPSH (Net Positive Suction Head) is higher or equal to the required NPSH + 50 kPa. -
Page 24: Heat Reclaim Condenser Option (Option 50)
8 - HEAT RECLAIM CONDENSER OPTION (OPTION 50) 8.1 - Technical data, 30XAS units with heat reclaim condenser option 30XAS heat reclaim mode Operating weight* 3256 3316 4186 4276 Refrigerant charge Heat reclaim condenser Flooded multi-pipe condenser Water volume Water connections Type Victaulic Nominal diameter Actual outside diameter... - Page 25 8 - HEAT RECLAIM CONDENSER OPTION (OPTION 50) 8.2.2 - 30XAS 442-482 – heat reclaim option (option 50) Legend: ATTENTION: The condenser connection sleeves are not All dimensions are given in mm. installed, but supplied with the unit. The sealing joints are in Specific elements for option 50 the control box.
-
Page 26: Condenser Location
8 - HEAT RECLAIM CONDENSER OPTION (OPTION 50) 8.3 - Condenser location The heat reclaim condenser is located between the air-cooled condensers on the upper part of the chassis, support-ed by two cross rails. The water inlet and outlet are on the same side. 8.4 - Condenser water connections 8.4.1 - Connection diagram The water flow switch must be installed at the water inlet of the ... -
Page 27: Flow Control
8 - HEAT RECLAIM CONDENSER OPTION (OPTION 50) 8.7 - Flow control 8.8 - Heat reclaim operation The water flow switch supplied needs to be installed at the heat Changeover from one mode to the other (changeover from heat reclaim condenser water inlet and protects the conden-ser loop exchange at the air condenser to heat exchange at the water against low water flow conditions. When the heat reclaim mode ... -
Page 28: Major System Components And Operation Data
- If they exist follow local professional recommendations. they are applied. This is also the case for the products originally - Regularly inspect the condition of the coating (paint) to detect supplied by Carrier. blistering resulting from corrosion. To do this, check a non- insulated section of the container or the rust formation at the insulation joints. -
Page 29: Control And Safety
9 - MAJOR SYSTEM COMPONENTS AND OPERATION DATA 9.2.2 - Oil separator In these units, the oil separator is a pressure vessel that is mounted under the outside vertical condenser coils. Dis-charge gas at the compressor outlet is directed towards the bottom of the oil separator ring and most of the oil separates from the gas by strong deceleration and by gravity. The gas then flows through a wire mesh screen where the remaining oil is separated by coalescence and flows to the bottom of the ring. The gas is now free from oil and leaves the ring at the top towards the condenser. 9.2.3 - Economiser function The economiser function includes a liquid line valve, a filter drier, two EXVs, a plate heat exchanger as well as protection devices (fuse ... -
Page 30: Electronic Expansion Valve (Exv)
9 - MAJOR SYSTEM COMPONENTS AND OPERATION DATA According to the Regulation No. 640/2009 and amendment 4/2014 implementing Directive 2009/125/EC with regard to ecodesign requirements for electric motors. Product 30XAS 30XAS Option Standard Option 119 Motor type Asynchronous Asynchronous Number of poles Nominal input frequency Nominal voltage Number of phases Motor included in the application domain of the regulation 640/2009 and amendment 4/2014 Sales leaflet for exemption Article 2.1 Article 2.1 Ambient air temperature for which the motor is specifically designed °C 9.6 - Electronic expansion valve (EXV) - Page 31 9 - MAJOR SYSTEM COMPONENTS AND OPERATION DATA 30XAS fan arrangement x = Start-up order Power connection NOTE: The values above do not correspond to the fan designation. The fan designation and position are given on the unit drawings and wiring diagrams supplied with the unit.
-
Page 32: Main Options
10 - MAIN OPTIONS Options No. Description Advantages Corrosion protection, Factory application of Blygold Polual treatment Improved corrosion resistance, recommended 30XAS traditional coils on the copper/aluminium coils for industrial, rural and marine environments 242-482 Corrosion protection, Fins made of pre-treated aluminium Improved corrosion resistance, recommended 30XAS traditional coils (polyurethane and epoxy) for moderate marine and urban environments 242-482 Unit equipped for air Fans equipped with discharge connection... - Page 33 Note 2: When more than one machine is installed on site, only one of them shall be Carrier Connect link (BSS equipped with option 298, while all of them 30XAS Enabler for Carrier Connect service offer regions only) must be equipped with option 149 242-482 Note 3: If a Carrier® PlantCTRL™ is on site, option 298 shall be integrated in the Carrier® PlantCTRL™, while option 149 is still mandatory for each single unit.
-
Page 34: Standard Maintenance
- Check for removed protection devices, and badly closed criteria will render the guarantee conditions for the HVAC unit doors/covers nul and void, and the manufacturer, Carrier France, will no - Check the unit alarm report when the unit does not work (see longer be held responsible. -
Page 35: Tightening Torques For The Main Bolts And Screws
11 - STANDARD MAINTENANCE 11.5 - Tightening torques for the main bolts and Removal of fibres that obstruct the surfaces: screws Fibres and dirt collected on the coil surface must be removed with a vacuum cleaner. If you do not have a vacuum cleaner, a soft Value Screw type Used for brush with non-metallic bristles can be used instead. In all cases (N·m) cleaning must be done in the direction of the fins, as the coil surface ... -
Page 36: Compressor Maintenance
The switch that has been selected for detecting reverse rotation is Carrier part number HK01CB001. This switch opens the contacts when the pressure falls below 7 kPa. The switch is a manual reset type that can be reset after the pressure has once again risen above 70 kPa. -
Page 37: Final Shutdown
12 - FINAL SHUTDOWN 12.1 - Shutting down Separate the units from their energy sources, allow them to cool then drain them completely. 12.2 - Recommendations for disassembly Use the original lifting equipment. Sort the components according to their material for recycling or disposal, in accordance with regulations in force. Check whether any part of the unit can be recycled for another purpose. 12.3 - Fluids to be recovered for treatment •... -
Page 38: Start-Up Checklist For 30Xas Liquid Chillers (Use For Job File)
13 - START-UP CHECKLIST FOR 30XAS LIQUID CHILLERS (USE FOR JOB FILE) Preliminary information Job name: ........................................ Location: ........................................Installing contractor: ....................................Distributor: ....................................... Unit Model: ........................................Compressor Model number......................................Serial number ......................................Motor number ......................................Evaporator Model number......................................Serial number ......................................Condenser Model number...................................... - Page 39 WARNING: Operation of the chiller with an improper supply voltage or excessive phase imbalance constitutes abuse which will invalidate the Carrier warranty. If the phase imbalance exceeds 2% for voltage, or 10% for current, contact your local electricity supply at once and ensure that the chiller is not switched on until corrective measures have been taken.
- Page 40 CARRIER participates in the ECP programme for LCP/HP Check ongoing validity of certificate: www.eurovent-certification.com Order No.: 13467, 09.2018. Supersedes order No.: 13467, 12.2016. Manufactured by: Carrier SCS, Montluel, France. Manufacturer reserves the right to change any product specifications without notice.
