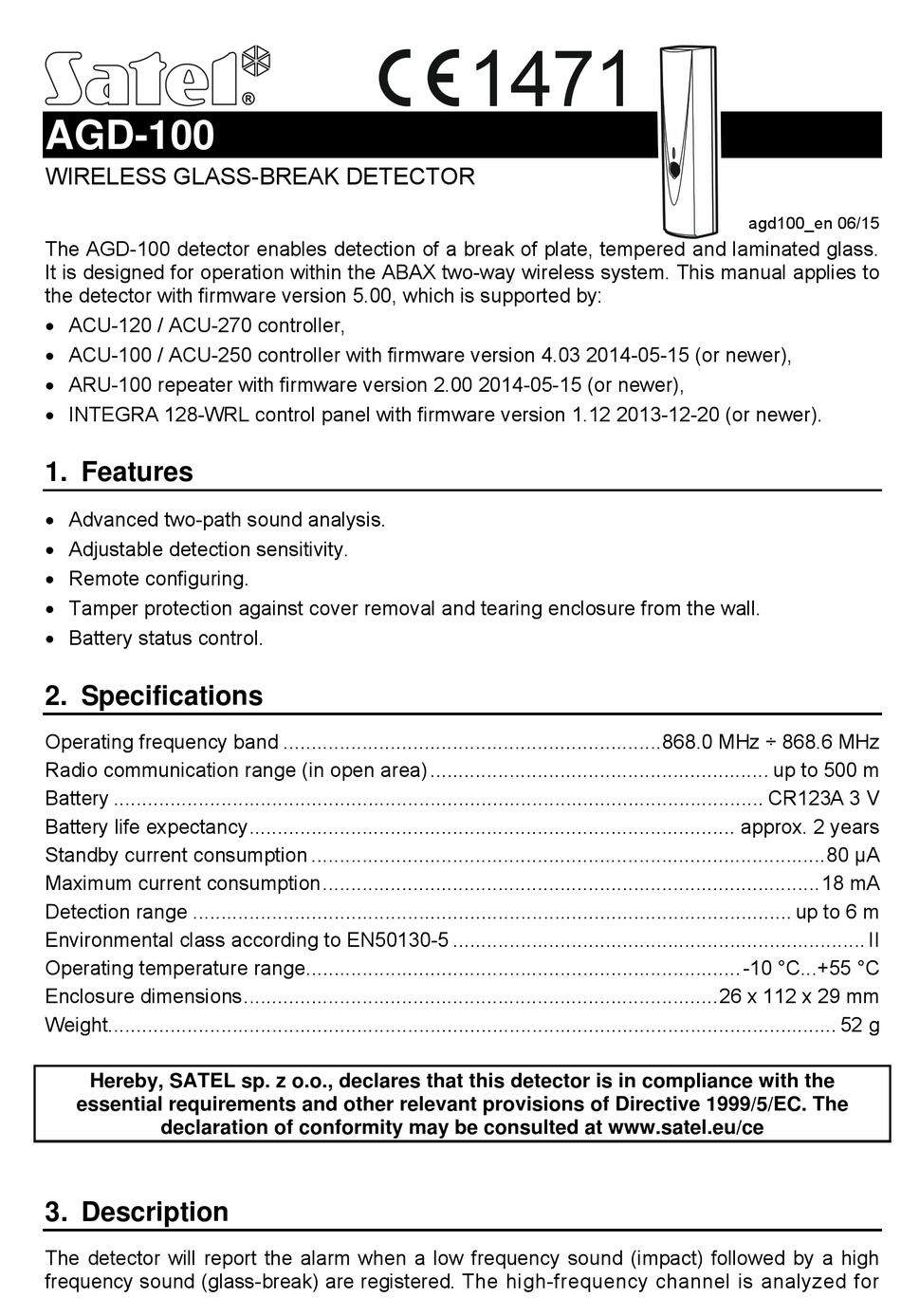

The AGD-100 detector enables detection of a break of plate, tempered and laminated glass.
It is designed for operation within the ABAX two-way wireless system. This manual applies to
the detector with firmware version 5.00, which is supported by:
 ACU-120 / ACU-270 controller,
 ACU-100 / ACU-250 controller with firmware version 4.03 2014-05-15 (or newer),
 ARU-100 repeater with firmware version 2.00 2014-05-15 (or newer),
 INTEGRA 128-WRL control panel with firmware version 1.12 2013-12-20 (or newer).

1. Features

 Advanced two-path sound analysis.
 Adjustable detection sensitivity.
 Remote configuring.
 Tamper protection against cover removal and tearing enclosure from the wall.
 Battery status control.

2. Specifications

Operating frequency band ...................................................................868.0 MHz ÷ 868.6 MHz
Radio communication range (in open area) ............................................................ up to 500 m
Battery ................................................................................................................... CR123A 3 V
Battery life expectancy...................................................................................... approx. 2 years
Standby current consumption ...........................................................................................80 µA
Maximum current consumption........................................................................................18 mA
Detection range .......................................................................................................... up to 6 m
Environmental class according to EN50130-5 ......................................................................... II
Operating temperature range.............................................................................-10 °C...+55 °C
Enclosure dimensions....................................................................................26 x 112 x 29 mm
Weight................................................................................................................................. 52 g
Hereby, SATEL sp. z o.o., declares that this detector is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC. The
declaration of conformity may be consulted at www.satel.eu/ce

3. Description

The detector will report the alarm when a low frequency sound (impact) followed by a high
frequency sound (glass-break) are registered. The high-frequency channel is analyzed for
