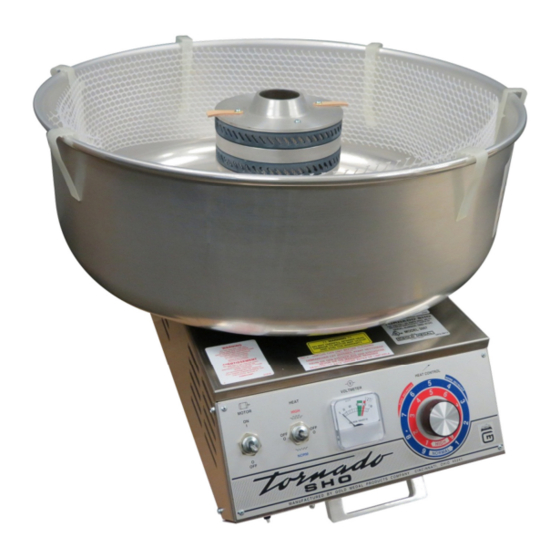

- Page 1 Instruction Manual Tornado SHO Model No. 3007, 3007A, 3007EX 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2018 Gold Medal Products Co. Part No. 43143...
-
Page 2: Safety Precautions
Tornado SHO Model No. 3007, 3007A, 3007EX SAFETY PRECAUTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. DO NOT use excessive water when cleaning. - Page 3 Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions. (Gold Medal Products Co. does not assume any liability for injury due to careless handling and/or reckless operation of this equipment.) General images may be used in manual for reference only.
-
Page 4: Inspection Of Shipment
Tornado SHO Model No. 3007, 3007A, 3007EX INSTALLATION INSTRUCTIONS Inspection of Shipment After unpacking, check thoroughly for any damage which may have occurred in transit. Claims should be filed immediately with the transportation company. The warranty does not cover damage that occurs in transit, or damage caused by abuse, or consequential damage due to the operation of this machine, since it is beyond our control. -
Page 5: Electrical Requirements
4. DO NOT use a grounded to un-grounded receptacle adapter (where applicable). 5. Install the unit in a level position. CAUTION If the supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent or similarly qualified persons in order to avoid a hazard. 039_080614 gmpopcorn.com... - Page 6 Tornado SHO Model No. 3007, 3007A, 3007EX Installation of Floss Stabilizer Place Floss Machine Pan on unit and install Whirl Grip Floss Stabilizer as shown below. 1. Place a Non-Metallic Whirl Clip over the rim of the Floss Pan. The out facing hooks go to the inside of the Floss Pan.
-
Page 7: Controls And Their Functions
Tornado SHO Model No. 3007, 3007A, 3007EX OPERATING INSTRUCTIONS Controls and Their Functions MAIN SWITCH Turns motor “on” or “off” and supplies voltage to the heat switch. HEAT SWITCH Turns voltage to the heating element (ribbon) “on” or “off”. HEAT CONTROL KNOB Increases or decreases voltage to heating element (ribbon) using a graduated dial. - Page 8 Tornado SHO Model No. 3007, 3007A, 3007EX Sugar for Your Candy Ready to Use Flossugar Our ready to use Flossugar is the preferred sugar for your new cotton candy machine; however 100% pure cane or beet sugar will do just fine. Our Flossugar gives you good rich colors, and great flavors, too.
-
Page 9: Machine Operation
Tornado SHO Model No. 3007, 3007A, 3007EX MACHINE OPERATION Settings Test CAUTION Floss head operates at high speeds. Operator MUST keep hands and face clear of the floss head to avoid possible injury. Keep all spectators at a reasonable distance, and use a Floss Bubble for added customer protection. - Page 10 Tornado SHO Model No. 3007, 3007A, 3007EX Making Floss Pick a cone, if it sticks in the stack of cones, twist it off the stack. CAUTION Keep hands away from spinning head! 031_021914 Hold an inch or two of the pointed end of the cone between two fingers and a thumb. With a light flicking action, roll cone in the web of floss building up in the pan.
- Page 11 Tornado SHO Model No. 3007, 3007A, 3007EX FLOATER ADJUSTMENTS In operation, the floss will collect on the FLOSS STABILIZER. If the floss collects “low” on the stabilizer, twist the front (leading) edge of the leather floaters down. You get more lift and the floss will collect higher.
-
Page 12: Shutdown Procedure
4. Wipe the stainless steel parts with a clean cloth and cleaner designed for stainless steel, such as Gold Medal Watchdog Stainless Cleaner (Item No. 2088). DO NOT use oven cleaners or abrasive materials as they will damage parts of the machine. - Page 13 Model No. 3007, 3007A, 3007EX Floss Bands and Ribbons Gold Medal Floss Bands are designed to give long life and trouble-free service with little care. DO NOT scratch the band. Gold Medal Floss Ribbons (heat elements) are made of nickel wire with insulation at the terminal point and on the lead wires.
- Page 14 Tornado SHO Model No. 3007, 3007A, 3007EX 7. Inspect, then clean or replace the band and ribbon(s). The primary reason for ribbon replacement is carbon build up inside the ribbon; an additional hot water soak may help remove some of the carbon buildup. 8.
- Page 15 Tornado SHO Model No. 3007, 3007A, 3007EX Reassembly of Floss Band – Export Units with Terminal Jumper (See previous page for Units with Terminal Assemblies.) 1. Reinstall band and ribbon(s) on the spinner head; for each element, ALWAYS attach one element lead to a brass stud, and one lead to a stainless steel screw as shown in image below.
-
Page 16: Troubleshooting
Tornado SHO Model No. 3007, 3007A, 3007EX TROUBLESHOOTING Low Production • Check for excessive carbon on the ribbons. Follow the instructions for removing and cleaning band and ribbon if needed. • Check heat control for correct setting. • Check the line voltage. A primary reason for low production and poor equipment performance is low line voltage. -
Page 17: Maintenance Instructions
Tornado SHO Model No. 3007, 3007A, 3007EX MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. DO NOT use excessive water when cleaning. -
Page 18: Ordering Spare Parts
4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 Or, place orders by phone or online:... -
Page 19: Exterior View
Tornado SHO Model No. 3007, 3007A, 3007EX Exterior View Part Number Item Part Description Qty. 3007 3007A 3007EX 7IN SPINNER HEAD COMPLETE 43131 43131 43131EX BRUSH COVER 42008NM 42008NM 42008NM MOTOR CASTING 42034 42034 42034 PAN SUPPORT 42049 42049 42049 RUBBER FEET 3/4IN HIGH 47155 47155... -
Page 20: Front Panel
Tornado SHO Model No. 3007, 3007A, 3007EX Front Panel Part Number Item Part Description Qty. 3007 3007A 3007EX 30 AMP TOGGLE SWITCH 43141 43141 43141 3 POSITION TOGGLE SWITCH 43142 43142 43142 (Heat Switch) VOLT METER 43009 43009 VOLT METER 220V 48034 KNOB RHEOSTAT 48027... - Page 21 Tornado SHO Model No. 3007, 3007A, 3007EX Spinner Head Assembly 7” Spinner Head Complete 11, 11A gmpopcorn.com Page 21...
- Page 22 Tornado SHO Model No. 3007, 3007A, 3007EX Spinner Head Assembly – Parts List Part Number Item Part Description Qty. 3007 3007A 3007EX 7" SPINNER HEAD COMPLETE 43131 43131 43131EX SPINNER HEAD BOTTOM ONLY 43008 43008 43008EX LEATHER FLOATER 20010 20010 20010 10-24 X 3 1/8 PH PAN M/S 43132...
- Page 23 Tornado SHO Model No. 3007, 3007A, 3007EX Brush Assembly and Motor Note: Motor is located in the Motor Mount Casting (see item 9 above) Motor Spacer Not Shown P/N 67207 (3007EX Only) Part Number Item Part Description Qty. 3007 3007A 3007EX BRUSH ASSEMBLY W/BRUSH 42320...
- Page 24 Tornado SHO Model No. 3007, 3007A, 3007EX Unit Interior 3007, 3007A 3, 11 Part Number Item Part Description Qty. 3007 3007A TRANSFORMER 43006 43006 RELAY, 30A DPST 120V 55219 55219 FINGER GUARD 47200 47200 EXHAUST BLOWER 120V,60CY 48018 48018 TERMINAL BLOCK 42006 42006 42020...
- Page 25 Tornado SHO Model No. 3007, 3007A, 3007EX Unit Interior 3007EX (Export) 3, 11 Part No. Item Part Description Qty. 3007EX TRANSFORMER 43011 FINGER GUARD 47200 EXHAUST BLOWER 220V, 50CY 48037 FILTER, EMI 20 AMP 48695 3uF 250 VAC CAPACITOR 55527 TERMINAL BLOCK 42006 HEAT CONTROL, VARI 220V...
- Page 26 Tornado SHO Model No. 3007, 3007A, 3007EX Floss Pan and Whirlgrip Stabilizer Part Number Item Part Description Qty. 3007 3007A 3007EX FLOSS PAN 42040 42040 42040 WHIRLGRIP STABILIZER (Includes Floss 3010 3010 30120 Stabilizer and Clips) FLOSS STABILIZER (Web) 43032 43032 43032 WHIRLGRIP CLIPS...
-
Page 27: Wiring Diagrams
Tornado SHO Model No. 3007, 3007A, 3007EX WIRING DIAGRAMS Model No. 3007 gmpopcorn.com Page 27... - Page 28 Tornado SHO Model No. 3007, 3007A, 3007EX Model No. 3007A gmpopcorn.com Page 28...
- Page 29 Tornado SHO Model No. 3007, 3007A, 3007EX Model No. 3007EX (Export) gmpopcorn.com Page 29...
-
