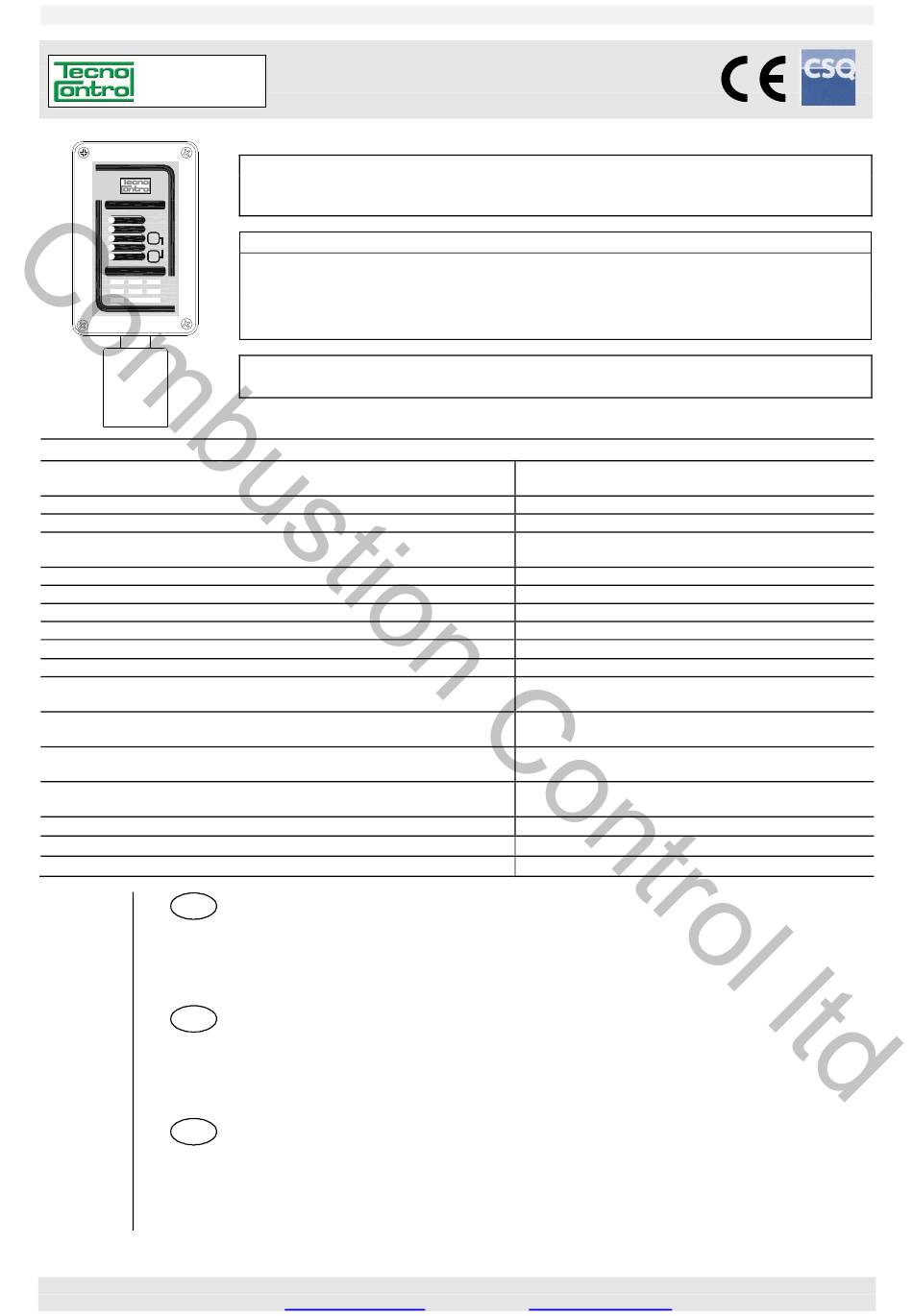

IST-2137.KM02.01/B
(IST-2137.KM02.01-B_SE137K (30.04.2014).docx)

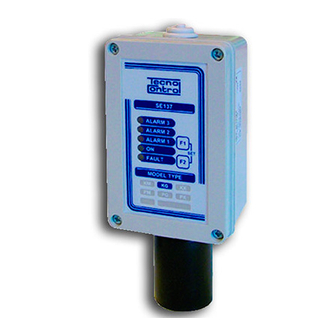

SE137K
SE137
ALARM 3
ALARM 2
F1
ALARM 1
ON
SET
FAULT
F2
F2
MODEL TYPE
KM
KG
KX
PM
PG
PX
Caratteristiche tecniche / Technical specifications / Caractéristiques techniques
Alimentazione / Power supply / Alimentation
Sensore / Sensor Type / Capteur
Cartuccia Sensore / Cartridge Sensor / Cartouche capteur
Uscite / Outputs / Sortie
Campo di misura / Standard Range / Champ de mesure
Limite Scala / Limits / Limite échelle
Vita media in aria pulita / Average Life in fresh air / Vie moyenne en air pur
Tempo di risposta T
/ Response Time T
90
Ripetibilità / Repeatability / Répétitivité
Precisione / Accuracy / Précision
Deriva a lungo termine
Long time drift / Dérive à long terme
Temp./umidità di immagazzinamento / Storage Temp-Humidity
Température et hygrométrie de stockage
Temp./umidità di funzionamento / Operation Temp./Humidity
Température et hygrométrie de fonctionnement
Pressione di funzionamento
Operation Pressure / Pression de fonctionnement
Vibrazioni e Urti / Vibration and Shocks / Vibrations et chocs
Dimensioni / Size / Dimensions du boîtier
Grado di protezione / IP Code / Indice de protection
IT
NOTE SUI VARI MODELLI ..................................................................................................................... 2
FUNZIONAMENTO ................................................................................................................................. 2
INSTALLAZIONE .................................................................................................................................... 3
AVVERTENZE ........................................................................................................................................ 3
VERIFICHE E CALIBRAZIONE .............................................................................................................. 3
EN
NOTES ON THE AVAILABLE MODELS ................................................................................................ 4
OPERATIONAL DESCRIPTION ............................................................................................................. 4
INSTALLATION ...................................................................................................................................... 5
WARNING ............................................................................................................................................... 5
TEST and CALIBRATION ...................................................................................................................... 6
FR
MODÈLES ............................................................................................................................................... 7
FONCTIONNEMENT............................................................................................................................... 7
INSTALLATION ...................................................................................................................................... 8
INSTRUCTIONS ..................................................................................................................................... 8
VÉRIFICATIONS ET ETALONNAGE ..................................................................................................... 8
TECNOCONTROL S.r.l. - Via Miglioli, 47 20090 SEGRATE (MI) ITALY
Istruzione / User's Manual / Manuel d'utilisation
Rivelatore di Gas infiammabili con uscita Relé
Flammable Gas Detector with output relay
Détecteur ponctuel de gaz combustibles
Leggere Attentamente e Conservare quest'Istruzione.
Lire avec soin et garder la notice d'istruction
Modello / Model / Modele
SE137KM
SE137KG
SE137KI
SE137KB
Inside Replaceable Cartridge Sensor / Avec Cartouche Capteur échangeable
/ Temps de réponse T
90
DESCRIZIONE ........................................................................................................................... 2
DESCRIPTION ........................................................................................................................... 4
DESCRIPTION ........................................................................................................................... 6
http:
www.tecnocontrol.it
Please read and keep this manual
Calibrato per / Calibrated for / Tarée pour
Metano / Methane / Méthane
GPL / LPG / GPL
Idrogeno / Hydrogen / Hydrogène
Benzina / Petrol / Essence
Con Cartuccia Sensore Sostituibile
12÷24Vdc(-10/+15%) 3W / 12÷24Vcc(-10/+15%) 3W
Sostituibile / Replaceable / échangeable
90
< ± 4 % LIE anno / LEL year / LIE/an
non condensata / non condensed / non condensée
non condensata / non condensed / non condensée
Atmospheric±10% / Atmosphérique ±10%
Tel. +39 02 26922890 - Fax +39 02 2133734
e-mail:
info@tecnocontrol.it
Cartuccia/Cartridge/Cartouche
ZSK01 o/or/ou ZSK02
ZSK01 o/or/ou ZSK02
ZSK01 o/or/ou ZSK02
ZSK04
12÷24Vcc (-10/+15%) 3W
Catalitico / Catalytic / Catalytique
relè / relays / relais 24V/1A SPST
4 ÷ 20 mA lineare / Linear / linéaire
0 ÷ 20 % LIE / LEL
30 % LIE / LEL
5 anni / years / ans
< 60 secondi / seconds / secondes
≤ 5% del segnale / signal
± 10 %
-20 ÷ + 55°C / 5 ÷ 95 % RH
-10 ÷ + 50 °C / 10÷90 % RH
Atmosferica ±10%
0,35 mm
10-50-10 Hz / ≤ 0,5J
190 x 105 x 83 mm
IP65
Pag.1/10
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tecno Control SE137K Series
Summary of Contents for Tecno Control SE137K Series
- Page 1 Istruzione / User’s Manual / Manuel d’utilisation Pag.1/10 IST-2137.KM02.01/B (IST-2137.KM02.01-B_SE137K (30.04.2014).docx) Rivelatore di Gas infiammabili con uscita Relé SE137K Flammable Gas Detector with output relay Détecteur ponctuel de gaz combustibles Leggere Attentamente e Conservare quest’Istruzione. Please read and keep this manual Lire avec soin et garder la notice d’istruction SE137 ALARM 3...
- Page 2 (±1,6) e la centrale, cui è collegato il Trasmettitore, indichi circa 20%LIE (± 2)]. Poi l’uscita, tornerà progressivamente a 4 mA. DESCRIPTION The SE137K series is a flammable gas detector employing a catalytic sensor and find their best application in cen- tralized alarm systems for car parks, manufacturing industries, etc. The instruments comprise of a thermoplastic case in which the electronic circuit and the terminals are mounted.
- Page 3 Istruzione / User’s Manual / Manuel d’utilisation Pag.5/10 IST-2137.KM02.01/B Normal operation: the green LED “ON” should be light on. The 1st° Red LED (ALARM 1) illuminates when the Gas concentration attains 1st alarm level and after about 12 seconds , the “ALARM 1" relay will activate. The 2nd Red LED (ALARM 2) illuminates when the Gas concentration attains 2nd alarm level and after about 30 seconds, the “ALARM 2"...
- Page 4 Istruzione / User’s Manual / Manuel d’utilisation Pag.6/10 IST-2137.KM02.01/B TEST and CALIBRATION PAY ATTENTION: This procedure has to be made with extreme attention and by authorized and trained people; because starting this procedure it will start both Outputs (relays) causing the activation of connected alarm devices. The instrument has three different code protected functions: Operation Check, Zero Adjust and Calibration.
