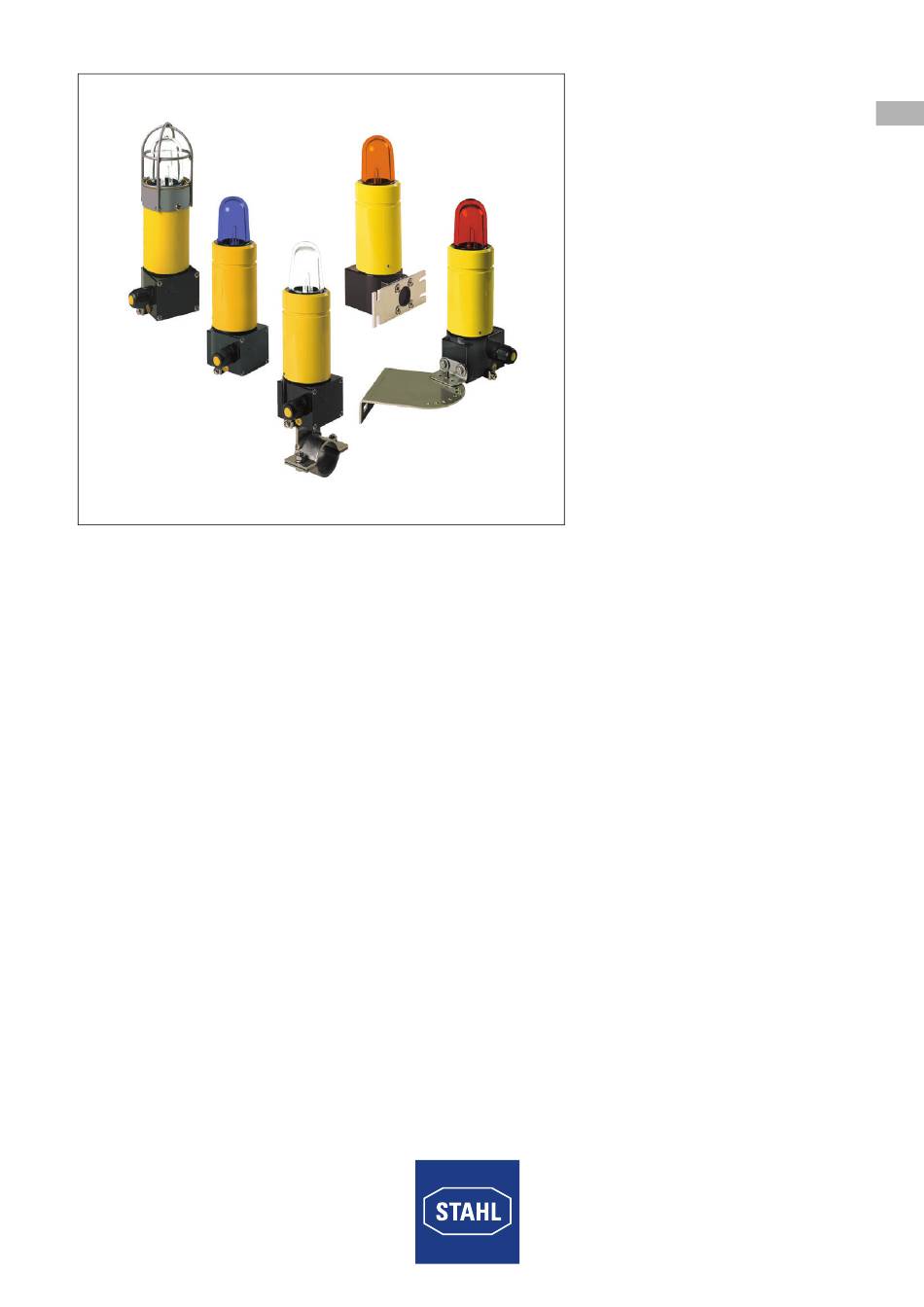

  • Page 1 Operating instructions Additional languages r-stahl.com Flashing Beacon and Continuous Beacon Series 6161...

  • Page 2: Table Of Contents

    Contents General Information ....................3 Manufacturer .......................3 Information regarding the operating instructions ..........3 Further documents ....................3 Conformity with standards and regulations ............3 Explanation of the symbols .................4 Symbols in these operating instructions .............4 Warning notes .....................4 Symbols on the device ..................5 Safety notes ......................5 Operating instructions storage ................5 Safe use ......................5...

  • Page 3: En En En

    • Data sheet For documents in additional languages, see r-stahl.com. Conformity with standards and regulations See certificates and EU Declaration of Conformity: r-stahl.com. The device has IECEx approval. For certificate please refer to the IECEx homepage: http://iecex.iec.ch/ Further national certificates can be downloaded via the following link: https://r-stahl.com/en/global/support/downloads/.

  • Page 4: Explanation Of The Symbols

    Explanation of the symbols Explanation of the symbols Symbols in these operating instructions Symbol Meaning Tips and recommendations on the use of the device General danger Danger due to explosive atmosphere Danger due to energised parts Warning notes Warnings must be observed under all circumstances, in order to minimize the risk due to construction and operation.

  • Page 5: En En

    • Use the device in accordance with its intended and approved purpose only. • Always consult R. STAHL Schaltgeräte GmbH if using the device under operating conditions which are not covered by the technical data. • We cannot be held liable for damage to the device caused by incorrect or unauthorised use or non-compliance with these operating instructions.

  • Page 6: En 3.3 Modifications And Alterations

    Function and device design Modifications and alterations DANGER Explosion hazard due to modifications and alterations to the device! Non-compliance results in severe or fatal injuries. • Do not modify or alter the device. No liability or warranty for damage resulting from modifications and alterations.

  • Page 7: En 5 Technical Data

    Technical data Technical data Explosion Protection Global (IECEx) Gas and dust IECEx LCI 08.0032X Ex db eb IIC T* Gb Ex tb IIIC T* °C Db * see ambient conditions for temperature class Europe (ATEX) Gas and dust LCIE 02 ATEX 6062 X E II 2 G Ex db eb IIC T* Gb E II 2 D Ex tb IIIC T* °C Db * see ambient conditions for temperature class...
  • Page 8 2 x 4 mm finely stranded 2 x 2.5 mm Protective conductor connection Inside max. 6 mm Outside max. 2.5 mm flexible / 4 mm rigid For further technical data, see r-stahl.com. Flashing Beacon and Continuous Beacon 264191 / 6161621300 Series 6161 2019-06-17·BA00·III·en·05...

  • Page 9: En 6 Transport And Storage

    Transport and storage Transport and storage • Transport and store the device only in the original packaging. • Store the device in a dry place (no condensation) and vibration-free. • Do not drop the device. Mounting and installation Dimensions / fastening dimensions Dimensional drawing (all dimensions in mm [inches]) –...

  • Page 10: Mounting / Dismounting, Operating Position

    Mounting and installation Mounting / dismounting, operating position 7.2.1 Mounting on mounting plate • Mounting plate for lateral wall and / or bottom assembly. 04177E00 12802E00 7.2.2 Installation with pipe clamp • Mounting of pipe clamps for a pipe diameter 1 1/2“, 1 1/4“ or 2“. 04163E00 04164E00 7.2.3 Installation with mounting bracket...

  • Page 11: Installation

    Commissioning Installation WARNING Danger of electric shock due to energised parts! Non-compliance can result in severe or fatal injuries. • All connections and wiring must be disconnected from the power supply. • Secure the connections against unauthorized switching. Electrical Connection •...

  • Page 12: En Operation

    If an error occurs please re-visit the earlier sections of this document. If the error cannot be eliminated using the mentioned procedures: • Contact R. STAHL Schaltgeräte GmbH. For fast processing, have the following information ready: • Type and serial number of the device •...

  • Page 13: 10.2 Repair

    DANGER Explosion hazard due to improper repair! Non-compliance results in severe or fatal injuries. • Repair work on the devices must be performed only by R. STAHL Schaltgeräte GmbH. 264191 / 6161621300 Flashing Beacon and Continuous Beacon 2019-06-17·BA00·III·en·05 Series 6161...

  • Page 14: 10.3 Returning The Device

    • Only return or package the devices after consulting R. STAHL! Contact the responsible representative from R. STAHL. R. STAHL's customer service is available to handle returns if repair or service is required. • Contact customer service personally. • Go to the r-stahl.com website.

This manual is also suitable for:

6161/26161/3
