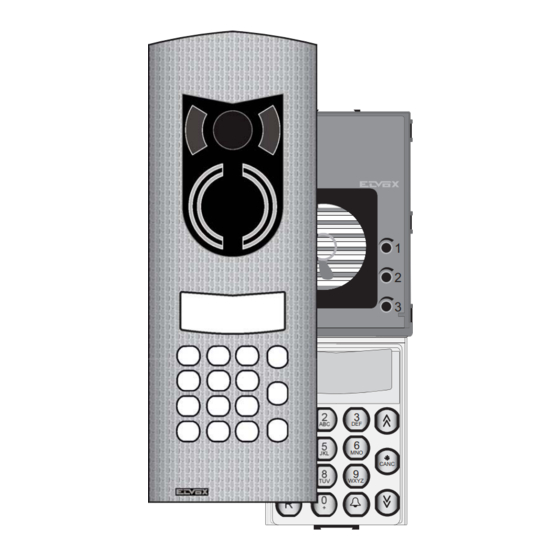

ELECTRONIC AUDIO AND VIDEO DIGIBUS ENTRY PANEL SERIE 1200, WITH
KEYPAD AND ALPHANUMERIC DISPLAY (FOR 8 DIGIT SYSTEMS)
GB
Il prodotto è conforme alla direttiva europea 2004/108/CE e successive.
This product complies with the EC Directive 2004/108/CE and subsequent standards.
Cod. S6I.128.47E
INSTALLATION AND CONNECTION MANUAL
ART. 1284
ART. 1287
1
2
3
2
3
DEF
6
5
MNO
JKL
CANC
8
9
WXYZ
0
+
’
RL. 01
1
2
3
2
3
ABC
DEF
6
5
MNO
JKL
CANC
8
9
TUV
WXYZ
0
+
9/2008

Advertisement

loading
Need help?

Need help?

Do you have a question about the Digibus 1284 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elvox Digibus 1284

Summary of Contents for Elvox Digibus 1284

  • Page 1 ELECTRONIC AUDIO AND VIDEO DIGIBUS ENTRY PANEL SERIE 1200, WITH KEYPAD AND ALPHANUMERIC DISPLAY (FOR 8 DIGIT SYSTEMS) INSTALLATION AND CONNECTION MANUAL ’ ART. 1284 ART. 1287 CANC CANC WXYZ WXYZ Il prodotto è conforme alla direttiva europea 2004/108/CE e successive. This product complies with the EC Directive 2004/108/CE and subsequent standards.

  • Page 2: Standard Modules

    A L P H A N U M E R I C D I S P L A Y E N T R A N C E P A N E L S : I N T R O D U C T I O N DESCRIPTION STANDARD MODULES Types 1284 and 1287 comprise respectively an electronic base unit for...

  • Page 3: Entrance Panels

    A L P H A N U M E R I C D I S P L A Y E N T R A N C E P A N E L S : C O M P O N E N T E S FLUSH-MOUNTED BACK BOXES HEIGHT OF 2-MODULE HEIGHT OF 3-MODULE...
  • Page 4 A L P H A N U M E R I C D I S P L A Y E N T R A N C E P A N E L S : A C C E S S O R I E S RAINPROOF COVERS 1P21 1P22...
  • Page 5 E N T R A N C E P A N E L W I T H T R A D I T I O N A L P U S H - B U T T O N S : I N T A L L A T I O N FLUSH-MOUNTED ENTRANCE PANEL INSTALLATION WITH RAIN- Fig.

  • Page 6: Preliminary Operations

    P A R A M E T E R S F O R P R O G R A M M I N G PRELIMINARY OPERATIONS PROGRAMMING WITH Type 950B: (refer to the relevant Having installed and connected all the devices, power up the manual for a complete description) system and check the LEDs on the power supply units to make With the entrance panel powered up, disconnect 950B (by...
  • Page 7 P A R A M E T E R S F O R P R O G R A M M I N G ENTRANCE PANEL TECHNICAL PARAMETERS TABLE No. Parameter Abbreviation on Minimum Maximum Default Description When to change the value programmer display value value...
  • Page 8 P A R A M E T E R S F O R P R O G R A M M I N G No. Parameter Abbreviation on Minimum Maximum Default Description When to change the value programmer display value value Coded door lock Key lock N°36...
  • Page 9 P A R A M E T E R S F O R P R O G R A M M I N G Description of functions: - Language "ENGLISH LANG." (9). To be programmed at your discretion. The function refers to the displayed mes- - Initial User "INITIAL USER"...
  • Page 10 P A R A M E T E R S F O R P R O G R A M M I N G - Enable conference "CONFEREN. ENAB." (17). Enabling - End of conversation warning time "END CONV. P, TIM" this parameter allows the entrance panel to call several inter- (25).

  • Page 11: Keypad Description

    P A R A M E T E R S F O R P R O G R A M M I N G Coding F1 “F1 CODE” (69). As above, but as the code has DOOR RELEASE FROM ENTRANCE PANEL: been entered, the F1 output is activated in the memory.
  • Page 12 P A R A M E T E R S F O R P R O G R A M M I N G 1) GENERAL OPERATION: 3) DIRECT ENTRY OF A NUMBER: INTRODUCTION: Type 8847 (digibus video entry panel with If the user knows the number of the internal unit to be called, this agenda) and type 8844 (digibus audio entry panel with agenda) can be entered directly via the keypad followed by the key...
  • Page 13 P A R A M E T E R S F O R P R O G R A M M I N G NB1: Given that each key has 3-4 letters, when pressed repea- DELETING A NAME VIA THE KEYPAD: tedly the key enters the letters according to the number of times To delete a name, enter the user entry mode, scroll through to the key is pressed (for example, if the key (6MNO) is pressed...
  • Page 14 P A R A M E T E R S F O R P R O G R A M M I N G KEYS TO RELEASE THE DOOR LOCK FROM THE KEYPAD: To activate, proceed as per the lock procedure and enter the rela- If the entrance panel is not engaged in a conversation or is not tive code in the memory.

  • Page 15: Display Of Software Version

    P A R A M E T E R S F O R P R O G R A M M I N G DISPLAY OF SOFTWARE VERSION: With the panel in normal operating status, press and hold keys “1”+”2”+”3” simultaneously. This displays the date of the internal software version (firmware): for example PG160605 means 16 June 2005.
  • Page 16 W I R I N G D I A G R A M MINIMAL CONDUCTOR SECTION (mm Conductors Ø up to 50 m. Ø up to 100 m. Ø up to 200 m. 0,75 mm 1 mm 1,5 mm + - and lock 1 mm 1,5 mm 2,5 mm...
  • Page 17 W I R I N G D I A G R A M SIMPLE RESIDENTIAL ISTALLATION WITH INTERPHONES EQUIPPED WITH INTERNAL DECODING. Ref diagram si074.00 INTERPHONE CABLE RISER Phone Phone Art. 887B Art. 887B Art. 887B/1 Art. 887B/1 C- Entrance panel Art. 1284 CX-Entrance panel series 1200 P- Additional push-button for lock Phone...
  • Page 18 W I R I N G D I A G R A M SIMPLE RESIDENTIAL INSTALLATION WITH FLOOR DISTRIBUTORS EQUIPPED WITH INTERNAL DECODING. Ref. diagram si075.00 INTERPHONE CABLE RISER Phone Phone Art. 8877 Art. 8877 C- Entrance panel Art. 1284 CX-Entrance panel series 1200 P- Additional push-button for lock L- Electric lock 12V A.C.
  • Page 19 W I R I N G D I A G R A M SIMPLE RESIDENTIAL INSTALLATION WITH TWO OR MORE PANELS IN PARALLEL. Ref. diagram si076.00...
  • Page 20 W I R I N G D I A G R A M RESIDENTIAL INSTALLATION WITH ONE MAIN PANEL AND TWO OR MORE SECONDARY PANELS (BUILDING COMPLEX). Ref. diagram si077.00 INTERPHONE INTERPHONE CABLE RISER CABLE RISER Mains Mains Power supply Power supply Art.
  • Page 21 W I R I N G D I A G R A M RESIDENTIAL INSTALLATION WITH TWO OR MORE MAIN PANELS AND TWO OR MORE SECONDA- RY PANELS (BUILDING COMPLEX). Ref. diagram si078.00 INTERPHONE INTERPHONE CABLE RISER CABLE RISER Mains Mains Power supply Power supply...
  • Page 22 W I R I N G D I A G R A M MONITOR CABLE RISER WITH UNITS EQUIPPED WITH INTERNAL DIGITAL SIGNAL DECODING. Ref. diagram si356.00 MONITOR CABLE RISER 75ohm 75ohm Monitor Art. 6304 Monitor Art. 6304/C Art. 6504 Art.
  • Page 23 W I R I N G D I A G R A M MONITOR RISER WITH FLOOR DISTRIBUTOR ART. 949B Ref. diagram si036 MONITOR CABLE RISER 75 ohm 75ohm Monitor Monitor Art. 6307 Art. 6607 Art. 6327 Art. 660B Art. 6507 Art.

  • Page 24: Power Supply

    W I R I N G D I A G R A M SIMPLE RESIDENTIAL INSTALLATION WITH MONITORS EQUIPPED WITH INTERNAL DECODING. Ref. diagram si357_1 MONITOR CABLE RISER 75ohm 75ohm Monitor Monitor Art. 6304 Art. 6604 Art. 6304/C Art. 6704 Art.
  • Page 25 W I R I N G D I A G R A M SIMPLE RESIDENTIAL INSTALLATION WITH DISTRIBUTORS EQUIPPED WITH INTERNAL DECO- DING. Ref. diagram si080.00 Monitor cable riser 1 3 4 5 - + 75 ohm 75ohm Monitor Monitor Art.
  • Page 26 W I R I N G D I A G R A M SIMPLE RESIDENTIAL INSTALLATION WITH TWO OR MORE PANELS IN PARALLEL Ref. diagram si081.00...
  • Page 27 W I R I N G D I A G R A M RESIDENTIAL INSTALLATION WITH ONE MAIN PANEL AND TWO OR MORE STAIRWAY PANELS (BUILDING COMPLEX). Ref. diagram si083.00 MONITOR CABLE RISER MONITOR CABLE RISER V 1 3 Mains Mains Power supply Power supply...
  • Page 28 W I R I N G D I A G R A M RESIDENTIAL INSTALLATION WITH ONE MAIN PANEL AND TWO OR MORE STAIRWAY PANELS (BUILDING COMPLEX). Ref. diagram si082.00 MONITOR MONITOR CABLE RISER CABLE RISER V 1 3 Mains Mains Power supply Power supply...
  • Page 29 W I R I N G D I A G R A M RESIDENTIAL INSTALLATION WITH TWO OR MORE MAIN VIDEO PANELS AND TWO OR MORE VIDEO OR AUDIO STAIRWAY PANELS (BUILDING COMPLEX) REF. DIAGRAM SI084.00 MONITOR MONITOR CABLE RISER CABLE RISER V 1 3 Mains...
  • Page 30 W I R I N G D I A G R A M VARIANTS si085 During programming of the entrance panel it is possible to change the following two parameters: T_F1 Function time F1 Activation time of 1st auxiliary function F1 T_F2 Function time F2 Activation time of 2nd auxiliary function F2...
  • Page 31 W I R I N G D I A G R A M VARIANTS si086 During programming of the entrance panel it is possible to change the following two parameters: T_F1 Function time F1 Activation time of 1st auxiliary function F1 T_F2 Function time F2 Activation time of 2nd auxiliary function F2...
  • Page 32 W I R I N G D I A G R A M Monitors with internal coding MONITOR CABLE RISER 75ohm Monitor Art. 6604 Art. 6614 75ohm Monitor Monitor Art. 6000 + Art. 6003 + Art. 6145 + Art. 6145 + Art.
  • Page 33 W I R I N G D I A G R A M VARIANTS si087 During programming of the entrance panel it is possible to change the following two parameters: T_F1 Function time F1 Activation time of 1st auxiliary function F1 T_F2 Function time F2 Activation time of 2nd auxiliary function F2...
  • Page 34 W I R I N G D I A G R A M VARIANTS VARIANTS Variation for self-protection of the digital line Variation for self-protection of the digital line with interruption of the riser only. with interruptions of the riser and the same Ref.diagram si555 entrance panel .
  • Page 35 W I R I N G D I A G R A M VARIANTS VARIANTS Variation for self-protection of the digital line Variation for self-protection of the digital line with interruption of the monitor cable riser only. with interruptions of the monitor cable riser and Ref.

  • Page 36: Safety Instructions For Installers
