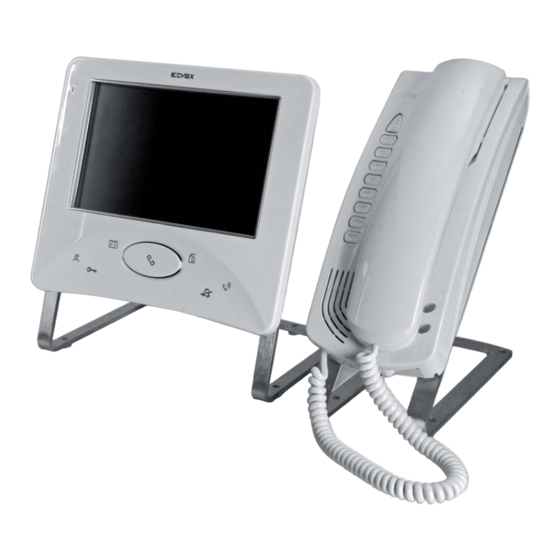

- Page 1 Art. 735B DIGIBUS “WIDE TOUCH CONCIERGE STATION” VIDEO PORTER SWITCHBOARD INSTALLATION AND OPERATION MANUAL Product is according to EC Directive 2004/108/CE, 2006/95/CE and following norms. Cod. S6I.735.B0E RL. 02 6/2012...
-
Page 2: Specifications
735B FRONT PANEL COMMANDS AND CONTROLS: DESCRIPTION: Video porter switchboard type 735B is available in the desk mounting version with bracket in 40/10 stainless steel, it is a Fig. 1 hands-free switchboard with option to combine the Petrarca type 625B series interphone, also in the desktop version sup- plied with 40/10 stainless steel bracket. - Page 3 V1 (video from main entrance panel). “T.TLC” switch: in the ON position it enables 75 Ohm local ter- mination on line V3 (video from local camera). MATRICOLA REG. T.Corr V Ext N. MVBR Art. 735B V Int DC 12V COLL TEST Reset G.Corr V Tlc Fig.
- Page 4 The porter switchboard is supplied with a standard program pre-in- stalled which can be modified according to the user's requirements by following the instructions below. Programming is necessary if the parameters preset by Elvox do not meet the requirements of the system. Fig. 2 top right (Fig.
- Page 5 735B Bottom icons (Fig. 5): 1) deletes the log shown on the display 2) edit: enabled only in address book, this icon is used to insert, edit or delete system users. 3) export: when a USB device is plugged in at the bottom the monitor, this icon exports the logs shown on the display (Fig.
- Page 6 735B 2) log settings (Fig. 9) this function is used to save the log on a daily or monthly basis, to decide which logs or alarms are saved and to edit their names. 3) quick selections (Fig. 10) this function is used to decide which activations are necessary...
-
Page 7: Operation
735B OPERATION Video switchboard type 735B can operate in two modes: inter- nal or external, to select the mode use the d. key on the video switchboard, the d. key will remain lit in external mode, whe- reas the LED will switch off in internal mode. - Page 8 735B INTERCOM CALLS IN OPEN-BRIDGE SYSTEM MODE WITH INTERFACE TYPE 69DM intercom calls between users in the same building: to connect two users located within the same apartment block, one of the internal users “A” or “B” must have made a call request to the concierge, the concierge will then call the first user, e.g.
- Page 9 (graphics or local camera). in both cases a warning tone is emitted. Fig. 18 MESSAGES Video switchboard type 735B can send text message and image message (file jpg) Fig. 18. Is possible to select the desitnation: - All user list - Select name (by user list) - Select code by numeric keypad (Fig.
- Page 10 735B MINIMUM CONDUCTOR CROSS-SECTION (in mm Conductors Ø up to 50 m. Ø up to 100 m. Ø up to 200 m. 0,75 mm 1 mm 1,5 mm + - and lock 1 mm 1,5 mm 2,5 mm Other 0,5 mm...
- Page 11 D I A G R A M 11/20...
- Page 12 D I A G R A M VIDEO DOOR ENTRY SYSTEM WITH VIDEO SWITCHBOARD TYPE 735B, POWER SUPPLY UNIT TYPE 6942, ENTRANCE PANELS TYPE 1286 DISTRIBUTOR TYPE 5556/004, TWO ENTRANCE PANELS TYPE 1286 (REF. SI624a). 12/20...
- Page 13 D I A G R A M VIDEO DOOR ENTRY SYSTEM WITH VIDEO SWITCHBOARD TYPE 735B, POWER SUPPLY UNIT TYPE 6942, ENTRANCE PANELS TYPE 1286 DISTRIBUTOR TYPE 5556/004, TWO ENTRANCE PANELS TYPE 1286 (REF. SI624). 13/20...
- Page 14 12 VDC electric lock 75ohm D i g i b u s - Tw o Wire interface type 69DM DUE FILI ELVOX DIGIBUS B1 B2 ~ ~ 12 6 8 9 5 M V Cable riser To diagram si623 14/20...
- Page 15 D I A G R A M CABLE RISER WITH INTERFACE TYPE 69DM, SEPARATORS TYPE 692S, POWER SUPPLY UNIT TYPE 6922, DISTRIBUTOR TYPE 692D, MO- NITOR TYPE 7311, AND POWER SUPPLY UNIT TYPE 6923 (REF. SI627). 15/20...
- Page 16 Push-button video entrance panel series 1285 Power supply unit type 6948 N - Art. 5556/004 Power supply unit type 6582 12VDC electric lock Distributor type 5556/004 6 8 4 To switchboard type 735B Door release control To diagram si624 Relay type 0170/051 16/20...
- Page 17 D I A G R A M CONNECTION VARIANT WITH ADDITIONAL LOCK ON 735B WIDE TOUCH CONCIERGE STATION (REF. SI628). Type 735B wide touch concierge station Mains F-Art. 6942 CH S F1 F2 15 O F - Power supply unit type 6942...
- Page 18 NOTE: 18/20...
- Page 19 SAFETY INSTRUCTIONS FOR INSTALLERS - Carefully read the instructions on this leaflet: they give important information on the safety, use and maintenance of the installation. - After removing the packing, check the integrity of the set. Packing components (plastic bags, expanded polystyrene etc.) are dangerous for chil- dren.
- Page 20 200030 Shanghai, Cina CERT n° 9110.ELVO ELVOX Costruzioni elettroniche S.p.A. - ITALY Via Pontarola, 14/a - 35011 Campodarsego (Padova) www.elvox.com Tel 049 9202511 - Fax 049 9202603 - info@elvox.com Telefax Export Dept. +39/049 9202601 - elvoxexp@elvox.com UNI EN ISO 9001:2008...
