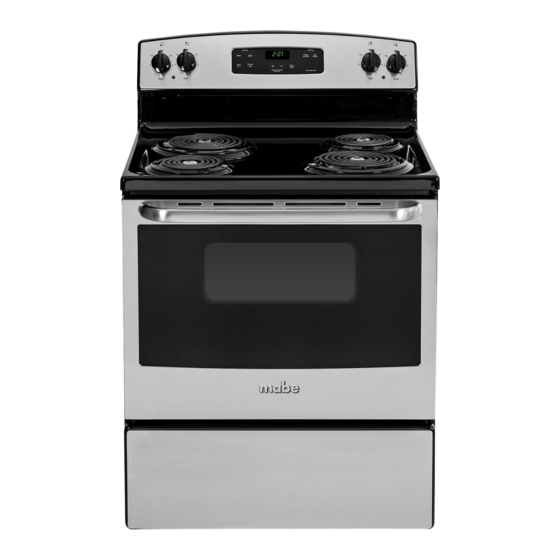

mabe EML27WWF0 Service Manual
  1. Manuals
  2. Brands
  3. mabe Manuals
  4. Ranges
  5. EML27WWF0
  6. Service manual

mabe EML27WWF0 Service Manual

Hide thumbs

Advertisement

Table of Contents

MODEL SERIES:
EML27WWF0
JBS27DILWW
JCB535DILWW
JCB535DILBB
JCB735DILBB
JCB735SILSS
EML535NNF0
EML535BBF0
EML735NNF0
EML735NXF0
Ingeniería de Servicio
Service manual
EML27NXF0
JCB535SILSS
JCB835DILWW
EML535NXF0
EML835BBF0
JBS27RILSS
JCB735DILWW
JCB835SILSS
EML735BBF0
EML835NXF0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EML27WWF0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for mabe EML27WWF0

Summary of Contents for mabe EML27WWF0

  • Page 1 Service manual MODEL SERIES: EML27WWF0 JBS27DILWW EML27NXF0 JBS27RILSS JCB535DILWW JCB535DILBB JCB535SILSS JCB735DILWW JCB735DILBB JCB735SILSS JCB835DILWW JCB835SILSS EML535NNF0 EML535BBF0 EML535NXF0 EML735BBF0 EML735NNF0 EML735NXF0 EML835BBF0 EML835NXF0 Ingeniería de Servicio...
  • Page 2 Index Cocinas eléctricas de Important Safety Instructions, Warnings and Recommendations pie libre Nomenclature Models Features Tools needed Technical information Installation instructions Using controls List of main components Disassemble and retrofit Electric diagrams Failures and solutions Ingeniería de Servicio...

  • Page 3: Important Safety Notice

    Important safety notices, warnings and recommendations Cocinas eléctricas de pie libre IMPORTANT SAFETY NOTICE RECONNECT ALL GROUNDING DEVICES The information on this document is directed to If grounding wires, screws, ribbons, hook, nuts or service individuals who possess accurated washers used to complete a route to the ground knowledge electrical, electronic...
  • Page 4 Nomenclature Feature level Cocinas eléctricas de pie libre Design Voltage Digit Brand 220/ 240V chance M: Mabe Color Stove Electric Generation NN: Black/Black Digit BB: White/White chance WW: White/White Ingeniería de Servicio...
  • Page 5 Space Autoself Electric D: Derivative color of BB/WW clean range R: Stainless with black accents L: 2017 Feature level Brand Product type Voltage Color J: GE Code 220/ 240V SS: Stainless steel B: 30" WW: White BB: Black NX: Stainless steel Ingeniería de Servicio...
  • Page 6 Feature level Fuel type D: Derivative color of BB/WW C: Electric S: Metalic range L: 2017 Brand Product type Voltage Color J: GE Code 220/ 240V SS: Stainless steel B: 30" WW: White BB: Black NX: Stainless steel with black Ingeniería de Servicio...
  • Page 7 Models Cocinas eléctricas de pie libre 30" Freestanding electric ranges 4 Coil burners 30" Freestanding electric ranges 4 Radiant burners EML27NXF0A 12" Dual element EML27WWF0A EML535BBF0A 30" Freestanding electric ranges EML535NNF0A 5 Radiant burners EML535NXF0A EML735BBF0A True convection air JBS27DIL1WW EML735NNF0A JBS27RIL1SS EML735NXF0A...
  • Page 8 Features Cocinas eléctricas de 1. Back protector – seamless design pie libre 2. Double oven sensor 3. Triple ring elements 3. Full glass oven door design 4. TrueTemp ™ 5. 6.2 Ft^3 Oven capacity 6. Increased usable capacity 7. Six position oven grill 8.
  • Page 9 Exclusive cleaning design As for ease of cleaning, the clean oven interior design conceals the bottom heating element beneath a steel surface coated with porcelain. All you see es a clean, smooth flat surface. Convenient new option: Warming area Maintains soups, sauces, breads and pancakes wam, melts chocolate. Or use this new burner as you would any other element.
  • Page 10 Features of the heating elements Surface elements EML835/ JCB835 6" element 240V 1260W Warming Zone 6" 6/9" element 6" element 240V 1260W 9/12" element 240V 2520W EML735/ JCB735 6" element 240V 1260W Warming Zone 6" 8" element 6" element 240V 1260W 9/12"...
  • Page 11 EML535/JCB535 EML27/JBS27 8" element 240V 2184W 6" element 240V 1260W 6" element 240V 1260W 8" element 240V 2184W Ingeniería de Servicio...
  • Page 12 Heating elements features Oven elements Ingeniería de Servicio...
  • Page 13 Tools needed Cocinas eléctricas de pie libre  Drill with 1/8 "Bit  Safety glasses  Safety gloves  Safety shoes  Adjustable Wrench  Flexometer  Pilers  1/4 " Hex Screw driver  Level  Torx T-15  Phillips screw driver ...

  • Page 14: Technical Information

    Technical information See use and care manuals and diagrams according to the corresponding model DESCRIPTION PART NUMBER MODELS EML27 USE AND CARE MANUAL 183D8379P086 JBS27 EML535 JCB535 USE AND CARE MANUAL 183D8379P087 EML735 JCB735 EML835 USE AND CARE MANUAL 183D8379P088 JCB835 EML835 MINI MANUAL...

  • Page 15: Installation Instructions

    Installation instructions Cocinas eléctricas de pie libre BEFORE YOU BEGIN Read this instructions completely and carefully. • IMPORTANT – Save this instructions for local inspector´s use. • IMPORTANT – Observe all governing codes and ordinances. • Note to installer – Be sure to leave these instructions with the consumer. •...

  • Page 16: Remove Packaging Materials

    1.- REMOVE PACKAGING MATERIALS: If the packaging materials are not removed may cause damage to the device. Remove all packaging components from oven, racks, heating elements and drawer. Also, remove the protective film and labels on the outside door, stove and rear guard. 2.
  • Page 17 A. Make sure that the wall covering, conter top, flooring and cabinets around the range can withstand the heat (uo to 200°F) generated by the range. B. Allow 76,2 cm ( 30 " ) minimum clearance between surface units and bottom of unprotected wood or metal cabinet, or allow 61 cm ( 24 ") minimum when bottom of wood or etal cabinet is protected by no less than 0,6 cm ( 1 / 4 "...

  • Page 18: Anti-Tip Bracket Installation

    3. ANTITIP BRACKET INSTALLATION To reduce the risk of tipping the range, the range must be secured by a properly installed anti-tip bracket. See installation instructions included with the bracket for complete details before attempting to install. To check if the bracket is installed and engaged properly, remove the storage drawer or kick panel and look underneath the range to see that the leveling leg is engaged in the bracket.
  • Page 19 C. Remove storage drawer, broiler drawer or kick panel. The front leveling legs can be asjusted from the bottom and the rear legs can be adjusted from the top. D. Use an open- end or adjustable wrench to adjust the levelling legs until the range is level. E.

  • Page 20: Final Installation Checklist

    5.- FINAL INSTALLATION CHECKLIST • Check to make sure the circuit breaker is closed (RESET) or the circuit fuses are replaced. • Check to be sure that all packing materials and tape have been removed. This will include tape on metal panel under control knobs (if applicable), adhesive tape, wire ties, cardboard and protective plastic.
  • Page 21 Use of control EML27 / JBS27 Models Throughout this manual, features and appearance may vary from your model. Bake/ Temp Recall Pad Touch this pad to select the bake function. See the how to set the oven for baking sections. Bake ligth –...
  • Page 22 Timer pad Touch this pad to select the timer feature. Then press + and – pads to adjust time. Timer light Flashes while in edit mode – you can change the set time at this point. Glows when the timer has been activated.
  • Page 23 Off pad Touch this pad to cancel ALL oven operations except the clock and timer. Broil Hi/Lo Pad Touch this pad to select the broil functions. See the how to set the oven for broiling section. Broil ligth Flashes while in edit mode – you can switch from Hi to Lo Broil at this point. Glows when the oven is in broil mode.
  • Page 24 EML535 / JCB535 Models EML735 / JCB735 Models 1. Bake pad Touch to select the bake function. 2. Broil pad Touch to select the broil function. 3. Start pad Must be touched to start any cooking or cleaning function. 4. Display Shows the time of the day, oven temperature, wheter the oven is in te bake, broil or self –...
  • Page 25 If the oven was set for a timd oven operations an power outage occurred, the clock and all programmed functions must be reset. The time of day will flash in the display when there has been a power outage. 5. Self clean pad Touch to select the self cleaning function.
  • Page 26 12. Timer pad Touch to select the timer feature. EML835 / JCB835 Models 1. Bake pad Touch to select the bake function. 2. Broil pad Touch to select the broil function. 3. Warm pad Touch to select the warm oven function. 4.
  • Page 27 Shows the time of the day, oven temperature, wheter the oven is in te bake, broil or self – cleaning mode and the times set for the timer or automatic oven operations. If “F – and a number or letter” flash in the display and the oven control signals, this indicates a function error code.
  • Page 28 12. Number pads Use to set any function requiring numbers such as the time of day on the clock, the timer, the oven temperature, the internal food temperature, the start time and length of operation for timed baking and self cleaning or setting the clock. 13.
  • Page 29 The oven has 6 racks positions. It also has a special rack position ( R ) for oversized items such as a large turkey. CAUTION When you are using a rack in the lowest position (A), you will need to use caution when pulling the rack out.
  • Page 30 3. Touch the START pad. The oven will start automatically. When the oven reaches the selected temperature, the oven control will beep several times and the display will show the oven temperature. NOTE: You will hear the convection fan (on some models) while the oven is preheating. The fan will stop after the oven is preheated and the display shows your set temperature.
  • Page 31 Broiling guide The size, weight, thickness, starting temperature and your preference of doneness will affect broiling times. This guide is based on meats at refrigerator temperature. Preheat the broiler for 2 minutes to improve performance. * Use rack position A for the smaller, 2-Rack position oven. Ingeniería de Servicio...
  • Page 32 Using the timed baking and roasting features (on some models) NOTE: Foods that spoil easily such as milk, eggs, fish, stuffings and poultry should not be allowed to sit for more than 1 hour before or after cooking. Room temperature promotes the growth of harmful bacteria.
  • Page 33 NOTE: An attention tone will sound if you are using timed baking and do not touch the START pad. The oven will turn ON, and the display will show the cooking time countdown and the changing temperature starting at 37.8°C (100°F). (The temperature display will start to change once the oven temperature reaches 37.8°C [100°F].) When the oven reaches the temperature you set, 3 beeps will sound.
  • Page 34 3. Touch the COOK TIME pad. NOTE: If your recipe requirew preheating, you may need to add additional time to the lengh of the cooking time. 4.- Touch the number pads to set the desired length of cooking time. The minimum cooking time you can set is 1 minute.
  • Page 35 Using the kitchen timer. (On some models) The kitchen timer is in hours and minutes. The kitchen timer does not control oven operations. The maximum adjustment in the kitchen timer is 9 hours and 59 minutes. To set the kitchen timer 1.- Press the TIMER pad.
  • Page 36 Touch the TIMER pad twice or touch TIMER. Adjust the oven thermostat You may find that your new oven cooks differently than the one it replaced. Use your new oven for a few weeks to become more familiar with it. If you still think your new oven is too hot or too cold, you can adjust the thermostat yourself.
  • Page 37 3. The oven temperature can be adjusted up to (+) 19°C (35°F) cooler. Touch the number pads the same way you read them. For example, to change the oven temperature 12°C (15°F), touch 1 and 5. 4. When you have made the adjustment, touch the START pad to go back to the time of day display.
  • Page 38 A clicking sound during baking is normal. In convection bake modes, for maximum cooking evenness, the fan is designed to rotate in both directions, with a pause in between, this is normal. Convection fan opetation In a convection oven, a fan circulates hot air over, under and around food. This hot circulation is distributed evenly throughout the oven cavity.
  • Page 39 When baking on 3 racks, place one rack in the second (B) position, another rack in the fourth (D) position and the third rack in the sixth (F) position. For two-rack baking, place one rack in the second (B) rack position. Place the other rack in the fifth (E) rack position.
  • Page 40 Before a clean Cycle Warning FIRE HAZARD: Wipe grease and heavy soil from the oven bottom before self cleaning. Failure to do so may result in an oven fire. We recommend venting your kitchen with an open window or using a ventilation fan or hood during the first self-clean cycle.
  • Page 41 How to set the oven for Cleaning The oven doors must be closed and all controls set correctly for the cycle to work properly. 1.- Touch SELF CLEAN pad. A 3-hour self-clean time is recommended for use when cleaning small, contained spills. A self- clean time of 5 hours is recommended for a dirtier oven..
  • Page 42 After a clean cycle You may notice some white ash in the oven. Wipe it up with a damp cloth after the oven cools. If white spots remain, remove them with a soap-filled steel wool pad and rinse thoroughly with a vinegar and water mixture.
  • Page 43 To begin steam clean cycle: 1. Remove the racks and accessories from the oven cavity. Do not replace cookware or othet items in the oven during the steam clean cycle. 2. Pour a cup (8 oz) room temperature water onto the recessed area of the oven bottom. Do not add cleannig solutions or chemicals of any kind to the water.
  • Page 44 List of main components  Backguard  Infinite switches  Knobs  Cooktop  Surface elements  Oven door  Fan  Oven heating element  Oven sensor  Socket  Lamp Ingeniería de Servicio...
  • Page 45 Disassemble and retrofit Power cord To install the power cord, remove the A) Remove the ¼” screws with a box cover element located at the back of screwdriver. the appliance. B) Lift the lid and slide it to the left to release the flanges support.
  • Page 46 Insert the power cord through the hole in the base and Power cord using a box screwdriver, remove the ¼” screws to place the power cord Place the terminal according to the poka yoke system and secure with screws. Place the back cover Ingeniería de Servicio...
  • Page 47 Backguard To remove the control panel is necessary to remove the screws locatedin the lower with a Torx T 15 2.- Remove the ¼” screws from the back. 3.- Pull the control panel upwards to release from the flanges support. Components view.
  • Page 48 Knobs Knob in good condition To remove, take the knobs from the sides and carefully pull to completely remove the knob. To replace the knobs, take them form the sides and carefully push until stop position Ingeniería de Servicio...

  • Page 49: Infinite Switch

    Infinite switch Component view Remove the ¼” screw in order to remove the back cover and access the infinite swiches without the need to completely remove the backguard. Remove the knob carefully. Remove the Phillips screws. With support from the nose pliers, remove the pads one by one Ingeniería de Servicio...
  • Page 50 CAUTION. Do not manipulate With support from the nose pliers place back the the switch blade since this may pads, one by one. decalibrate and generate an equipment malfunction Ingeniería de Servicio...
  • Page 51 Cooktop To remove the cooktop remove the ¼” screws using the box screwdriver located at the bottom of the front corners of the rangetop To remove the cooktop, lift it gently until its axes don’t touch the guides Note: Before removing the cover, disconnect all electrical terminals Ingeniería de Servicio...
  • Page 52 Surface elements To gain Access to the cooking resistances is necessary to remove the ¼” screws located at the bottom of the front corners. Components view Ingeniería de Servicio...
  • Page 53 Remove the Surface clips from the bottom using a flat screw driver Top heating element and sensor view CAUTION: Be careful when handling the component terminals and verify these connections are made according to the wiring diagrams attached. Ingeniería de Servicio...
  • Page 54 To remove the coil surface burners, lift and pull carefully until the part is removed completely Ingeniería de Servicio...
  • Page 55 Door To remove the door, first lift the safety pins 2.- Lift the door almost to the point of closure. 3.- Remove the door from its position. Ingeniería de Servicio...
  • Page 56 Oven door latch To Access the door latch, remove the screws and lift the cover Remove the brake pads using nose pliers, taking care not to damage them Ingeniería de Servicio...
  • Page 57 To remove the door latch is necessary to remove the screws using a Torx T-15 Oven door sensor Door sensor. Remove the connections using a flat screwdriver press safety pins and push to remove the sensor. Ingeniería de Servicio...
  • Page 58 Oven sensor Note: To chance the oven sensor, remove the back cover of the appliance. Disconnect and remove the sensor Remove the ¼” screws . Oven heating elements To replace the oven heating element it is necessary to remove the back cover of the appliance Using screwdriver, remove the box screws ¼”...
  • Page 59 Remove the screws fron the fan guard using a Phillips screwdriver Remove the screws holding the fan being careful do not drop it abruptly Ingeniería de Servicio...
  • Page 60 Disconnect the fan being careful not to drop its power cord, otherwise you will have to remove the back cover. Ingeniería de Servicio...
  • Page 61 Lamp, lamp protector and socket To change the lamp of the range push the lamp protector safety to Remove the protector carefully so as not to one side. break it. To change the socket, remove the back cover of the appliance Using nose pliers remove the brake pads.

  • Page 62: Electric Diagrams

    Electric diagrams Schematic diagram EML27/JBS27 models Ingeniería de Servicio...
  • Page 63 Schematic diagram EML535 / JCB535 models Ingeniería de Servicio...
  • Page 64 Schematic diagram EML735 / JCB735 models Ingeniería de Servicio...
  • Page 65 Schematic diagram EML835 / JCB835 models Ingeniería de Servicio...

  • Page 66: Key Panel Test

    The electronic control array for the oven system consists of: Control, key panel, oven sensor, assembly for the door lacth and convection fan. KEY PANEL TEST 1. Touch each pad on the Key Panel. 2. If the Key Panel is functioning properly, the following should occur: •...
  • Page 67 Failures and solutions PROBLEM POSSIBLE CAUSES WHAT TO DO Surface units will not Improper cookware being Use pans which are flat and match the maintain a rolling boil or used. diameter of the surface unit selected. cooking is not fast enough In some areas, the power Cover pan with a lid until desired heat is...
  • Page 68 Hot surface on a model This is normal. The surface may appear with a light-colored discolored when it is hot. This is cooktop. temporary and will disappear as the glass cools. Plastic melted to the Hot cooktop came into See the Glass surface potential for surface contact with plastic placed permanent damage...
  • Page 69 The probe is plugged into Unplug and remove the probe from the the outlet in the oven. (on oven. some models) In some areas the power Preheat the broil element for 10 (voltage) may be low. minutes. Broil for the longest period of time recommended in the Broiling Guide.
  • Page 70 “Crackling” or “popping” This is the sound of the This is normal. sound metal heating and cooling during both the cooking and cleaning functions. Excessive smoking Excessive soil. Touch the CLEAR/OFF pad. Open the during a clean cycle windows to rid the room of smoke. Wait until LOCKED/DOOR goes off.
  • Page 71 Range Locked or LOC The controls have been See the Control Lockout section to On appears in the oven locked. unlock. display or LC appears in the surface display Control signals after You forgot to enter a bake Touch the BAKE pad and desired entering cooking time or temperature or cleaning temperature or the SELF CLEAN pad...
  • Page 72 Strong odor An odor from the This is temporary. insulation around the inside of the oven is normal for the first few times the oven is used. Fan noise A convection fan may This is normal. To maximize cooking automatically turn on and evenness, the fan is designed to off.
