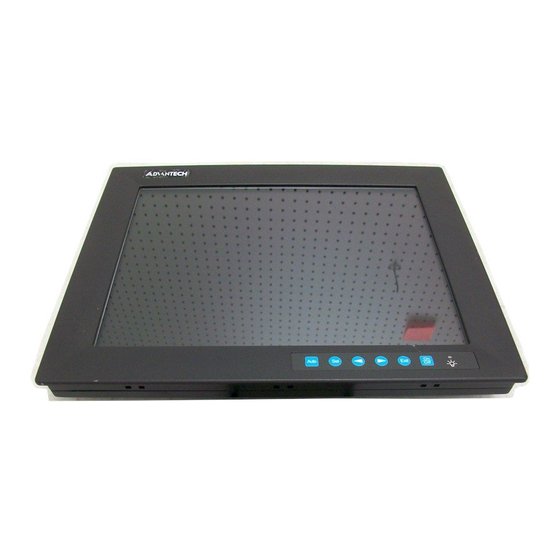

Advantech FPM-2150 Series User Manual

Flat panel monitor with 15" color tft/lcd display
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FPM-2150 Series
Flat Panel Monitor with
15" Color TFT/LCD Display

User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FPM-2150 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Advantech FPM-2150 Series

Summary of Contents for Advantech FPM-2150 Series

  • Page 1: User Manual

    FPM-2150 Series Flat Panel Monitor with 15" Color TFT/LCD Display User Manual...

  • Page 2: Copyright Notice

    Copyright Notice This document is copyrighted by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements to the products described in this manual at any time. Specifications are thus subject to change without notice.
  • Page 3 Product Warranty (1 year) Advantech warrants to you, the original purchaser, that each of its prod- ucts will be free from defects in materials and workmanship for one year from the date of purchase. This warranty does not apply to any products which have been repaired or...
  • Page 4 • Increase the separation between the equipment and the receiver • Connect the equipment to a power outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help FPM-2150 Series User Manual...
  • Page 5 If any of these items are missing or damaged, contact your distributor or sales representative immediately. Additional Information and Assistance 1. Visit the Advantech web site at www.advantech.com where you can find the latest information about the product. 2. Contact your distributor, sales representative, or Advantech's cus- tomer service center for technical support if you need additional assis- tance.
  • Page 6 The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage. 15. DO NOT LEAVE THIS EQUIPMENT IN AN UNCONTROLLED ENVIRONMENT WHERE THE STORAGE TEMPERATURE IS FPM-2150 Series User Manual...
  • Page 7 The sound pressure level at the operator's position according to IEC 704- 1:1982 is no more than 70dB(A). DISCLAIMER: This set of instructions is given according to IEC 704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein. Wichtige Sicherheishinweise 1.
  • Page 8 IEC-704-1 erstellt. Advantech lehnt jegliche Verantwortung für die Richtigkeit der in diesem Zusammenhang getätigten Aussagen ab. DISCLAIMER: This set of instructions is given according to IEC704-1. Advantech disclaims all responsibility for the accuracy of any statements contained herein. FPM-2150 Series User Manual...

  • Page 9: Table Of Contents

    Figure 2.3:Rack Mounting ..........9 Desktop, Swing-ARM for FPM-2150......10 2.2.1 Desktop Stand .............. 10 Figure 2.4:Desktop Stand for the FPM-2150 Series ..10 2.2.2 Swing-ARM (designed to meet VESA ARM std.) ..11 Figure 2.5:Swing-ARM for the FPM-2150 series ..11 2.2.3...
  • Page 10 FPM-2150 Series User Manual...
  • Page 11 Introduction This chapter includes: • Introduction • Specifications • LCD Specification • Power Consumption • Connectors • Dimensions...

  • Page 12: Chapter 1 Introduction

    The whole chassis is made of durable steel, and the front panel is of Al- Mg with NEMA4/IP65 compliance. Products in the FPM-2150 Series can also be provided in touch screen versions (FPM-2150 -R and FPM-2150 -C). With an 8-wire resistive type touchscreen, this monitor can be immediately transformed into a remote control system.

  • Page 13: Lcd Specifications

    • Vibration (operating): 5 ~ 17 Hz, double-amplitude displacement; 17 ~ 500 Hz, 1.0 G peak to peak • CE, FCC, BSMI, CCC certified • Power Consumption: +12V +/- 10% @ 2.5 A Touchscreen (Optional) • Type: 8 wire, analog resistive •...

  • Page 14: Connectors

    1. If you have installed a operating system in the PC, make sure the ver- tical frequency falls within the acceptable range. (Refer to Appendix 2. If you have not installed a operating system, you have to adjust the vertical frequency to fall within the range. FPM-2150 Series User Manual...

  • Page 15: Ps/2 Connectors

    1.5.1 PS/2 Connectors The FPM-2150 provides two PS/2 connectors in the bottom side. Please follow the steps to connect the keyboard /mouse cable. 1. Connect a 1.8 m keyboard/mouse cable to one of the PS/2 ports. 2. Connect the other side of the Keyboard/mouse cable to a PC 3.

  • Page 16: Dimensions

    1.6 Dimensions Figure 1.1: FPM-2150GA Chassis Dimensions FPM-2150 Series User Manual...
  • Page 17 System Setup • Mounting the Monitor • Wall / Panel / Rack Mounting • Desktop / Swing-Arm Mounting...

  • Page 18: Chapter 2 System Setup

    Chapter 2 System Setup 2.1 Mounting FPM-2150 The FPM-2150 Series can be flexibly mounted. The versatility of the FPM-2150 mounts enable it to be mounted on your desk or almost any- where else. 2.1.1 Wall Mounting Please refer to figure 2.1 and follow the steps below to install FPM-2150 on a wall.

  • Page 19: Panel Mounting

    2.1.2 Panel Mounting Refer to figure 2.2 and follow the instructions below to install in a panel. Place four panel-mounting brackets on FPM-2150 (2 on the top and 2 on the bottom). Fasten the four panel-mounting brackets with screws (with spring). Mount FPM-2150 on the panel by the screws on the four panel- mounted brackets.

  • Page 20: Desktop, Swing-Arm For Fpm-2150

    Refer to figure 2.4. The desktop stand bracket is attached to the rear of FPM-2150.. Simply attach the small bracket at the rear side of the moni- tor by screwing the two screws. The bracket now becomes the desktop stand bracket. Figure 2.4: Desktop Stand for the FPM-2150 Series FPM-2150 Series User Manual...

  • Page 21: Swing-Arm (Designed To Meet Vesa Arm Std.)

    FPM-2150 has been designed with support for the VESA arm standard. Refer to figure 2.5. Detach the mounting brackets on the rear side, then attach the FPM-2150 onto the VESA ARM mount. Figure 2.5: Swing-ARM for the FPM-2150 series Chapter 2...

  • Page 22: Power Adapter

    2.2.3 Power Adapter The power adapter bracket is attached to the rear of FPM-2150. Detach the small bracket at the rear side of the monitor by unscrewing the four screws. FPM-2150 Series User Manual...
  • Page 23 Display Timing Mode and OSD...

  • Page 24: Appendix A Display Timing Mode & Osd

    Note 3: Because adjustments may not fit, such as differing magnifying ratios or, in the case that you use it except for the display timing that was preset. FPM-2150 Series User Manual...

  • Page 25: Keypad Interface

    A.2 Keypad Interface AUTO Press this button to execute auto-adjustment process. Press to show the OSD screen or select an item to change its setting. Press to move between items or increase/decrease item set- ting. EXIT Press to close the selected item or the whole OSD screen. ON/OFF Press the on/off button to turn FPM-3150G on and off.

  • Page 26: Osd Function

    V.Position Move the input image capture win- dow up or down Information Information System input mode information and maximum range supported by screen All Reset All Reset Reset menu parameters to factory default setting FPM-2150 Series User Manual...
  • Page 27 Touchscreen This appendix contains information on the touchscreen, its installation and configuration.

  • Page 28: B.1 Introduction

    Appendix B Touchscreen B.1 Introduction The FPM-2150 Series’ optional touchscreen uses advanced 8-wire resis- tive technology. It provides more accurate sensing capacity than other technologies. The touchscreen is specially designed for tough industrial environments, and has been approved to FCC Class B standards.

  • Page 29: Installing Driver For Windows 2000/Xp

    Optical • Visible light transmission: 75% typical (>74% @ 550 nm test) • Clarity: Clear Finish - 25%, Antiglare Finish - 15% Sensor board • Chemical strengthened glass with 4 H hardness standard. (Test condition: ASTM D3363-92A) Ball drop test •...
  • Page 30 Follow the steps below to install the PenMount Windows 2000/XP driver. When the system first detects the controller board, a screen appears that shows “Unknown Device.” Do not use this hardware wizard. Press Cancel. FPM-2150 Series User Manual...
  • Page 31 Insert the PenMount Driver CD-ROM. Go to the Windows 2000- XP Driver folder. Click setup.exe. The screen displays the installation wizard for the PenMount soft- ware. Click “Next”. Appendix B...
  • Page 32 A License Agreement appears. Click “I accept…” and “Next” The “Ready to Install the Program” screen appears. Select “Install.” FPM-2150 Series User Manual...
  • Page 33 The next screen is “Hardware Installation.” Select “Continue Any- way.” The “InstallShield Wizard Completed” appears. Click “Finish.” Appendix B...

  • Page 34: Configuring Penmount Windows 2000/Xp Driver

    Advanced Calibration uses 4, 9, 16 or 25 points to effec- Calibration tively calibrate touch panel linearity of aged touch screens. Click this button and touch the red squares in sequence with a stylus. To skip, press ‘ESC’. FPM-2150 Series User Manual...
  • Page 35 NOTE: The older the touch screen, the more Advanced Mode calibration points you need for an accurate calibration. Use a stylus during Advanced Calibration for greater accuracy. Appendix B...
  • Page 36 FPM-2150 Series User Manual...
  • Page 37 Plot Calibra- Check this function and a touch panel linearity com- tion Data parison graph appears when you have finished Advanced Calibration. The blue lines show linearity before calibration and black lines show linearity after calibration. Appendix B...
  • Page 38 Touch the screen with your finger or a stylus and the drawing screen reg- isters touch activity such left, right, up, down, pen up, and pen down. Click Clear Screen to clear the drawing. FPM-2150 Series User Manual...
  • Page 39 Multiple Monitors Multiple Monitors supports from two to six touch screen displays for one system. The PenMount drivers for Windows 2000/XP support Multiple Monitors. This function supports from two to six touch screen displays for one system. Each monitor requires its own PenMount touch screen control board, either installed inside the display or in a central unit.
  • Page 40 When the mapping screen message appears, click OK. Touch each screen as it displays “Please touch this monitor.” Fol- lowing this sequence and touching each screen is called mapping the touch screens. FPM-2150 Series User Manual...
  • Page 41 Touching all screens completes the mapping and the desktop reap- pears on the monitors. Select a display and execute the ‘Calibration’ function. A message to start calibration appears. Click OK. “Touch this screen to start its calibration” appears on one of the screens.
  • Page 42 Beep on Pen Up – beep occurs when pen is lifted up Beep on both of Pen Down/Up – beep occurs on both Beep Frequency – modifies sound frequency Beep Duration – modifies sound duration FPM-2150 Series User Manual...
  • Page 43 About This panel displays information about the PenMount controller and driver version. Appendix B...

  • Page 44: Penmount Monitor Menu Icon

    Right and Left Button functions. Pen Sta- Check this function to reduce cursor vibration for relatively bilizer unstable touch screens, or where there may be excess vibration. Normally this function is not checked. Exit Exits the PenMount Monitor function. FPM-2150 Series User Manual...

  • Page 45: Penmount Rotating Functions

    B.4.3 PenMount Rotating Functions The PenMount driver for Windows 2000/XP supports several display rotating software packages. Please see Chapter 5 for more information. The PenMount drivers for Windows 95, Windows 98/Me, Windows 2000/XP, as well as Windows 98 USB and Windows Me/2000/XP sup- port display rotating software packages such as: •...

  • Page 46: Uninstall The Penmount Windows 2000/Xp Driver

    Go to Settings, then Control Panel, and then click Add/Remove program. Select PenMount DMC9000 and click the Add/Remove button. Select PenMount DMC9000 and DMC9100. Click the Remove button. Select ‘Yes’ and “Close” to remove the PenMount Windows 2000/ XP driver, and reboot the system. FPM-2150 Series User Manual...
