After un-packing, the part number of the PowerLock Box should be checked against your order
and that on the carton. Also check that the current rating label on the unit matches your
requirements. The carton should contain the following:-
Qty Description
1 PowerLock Box
1 6mm square drive key
1 3 pole cable connector for remote sensing
1 Operating / Maintenance guide
If any parts are missing or the unit's description does not match, you should contact your
supplier.

MOUNTING INSTRUCTIONS

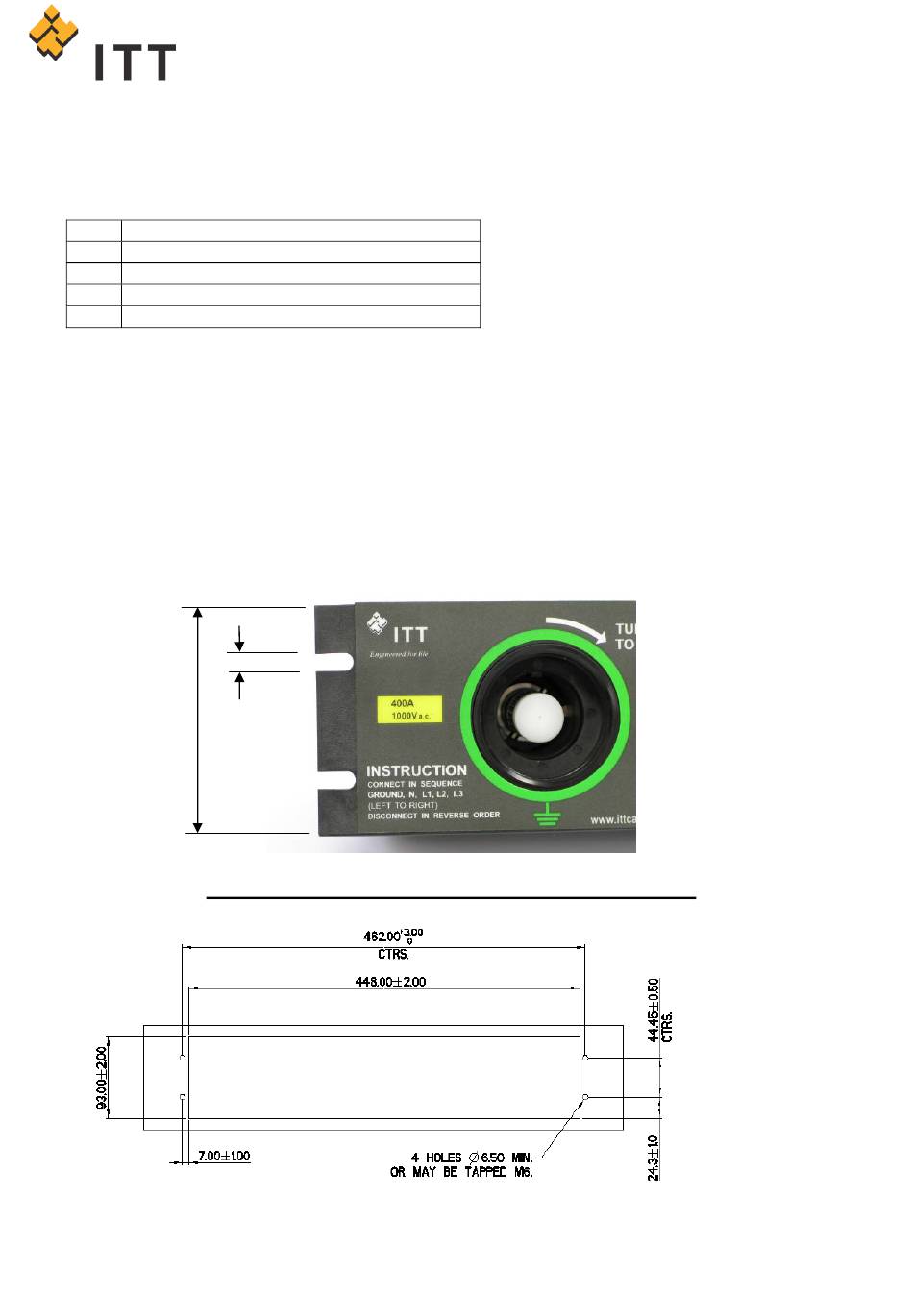

The unit may be mounted into standard 19'' rack systems or to dedicated panel mounts within
buildings or remote cabinets. It is recommended that M6 screws / bolts and flat washers are
used, and tightened to a torque of 2.94NM min. to 3.43NM max.
Caution – Tighten screws / bolts evenly and ensure the unit is adequately supported during
mounting.
6.50
88.90
MIN
(107.00 for
Flange type.)
CUT OUT BELOW FOR FLANGE TYPE ONLY.
If fitting to a 19" rack that does not support all IEC 60297 fixing holes it may be necessary to
use additional mounting plates. ITT part number 003-7586-000 available on request.
