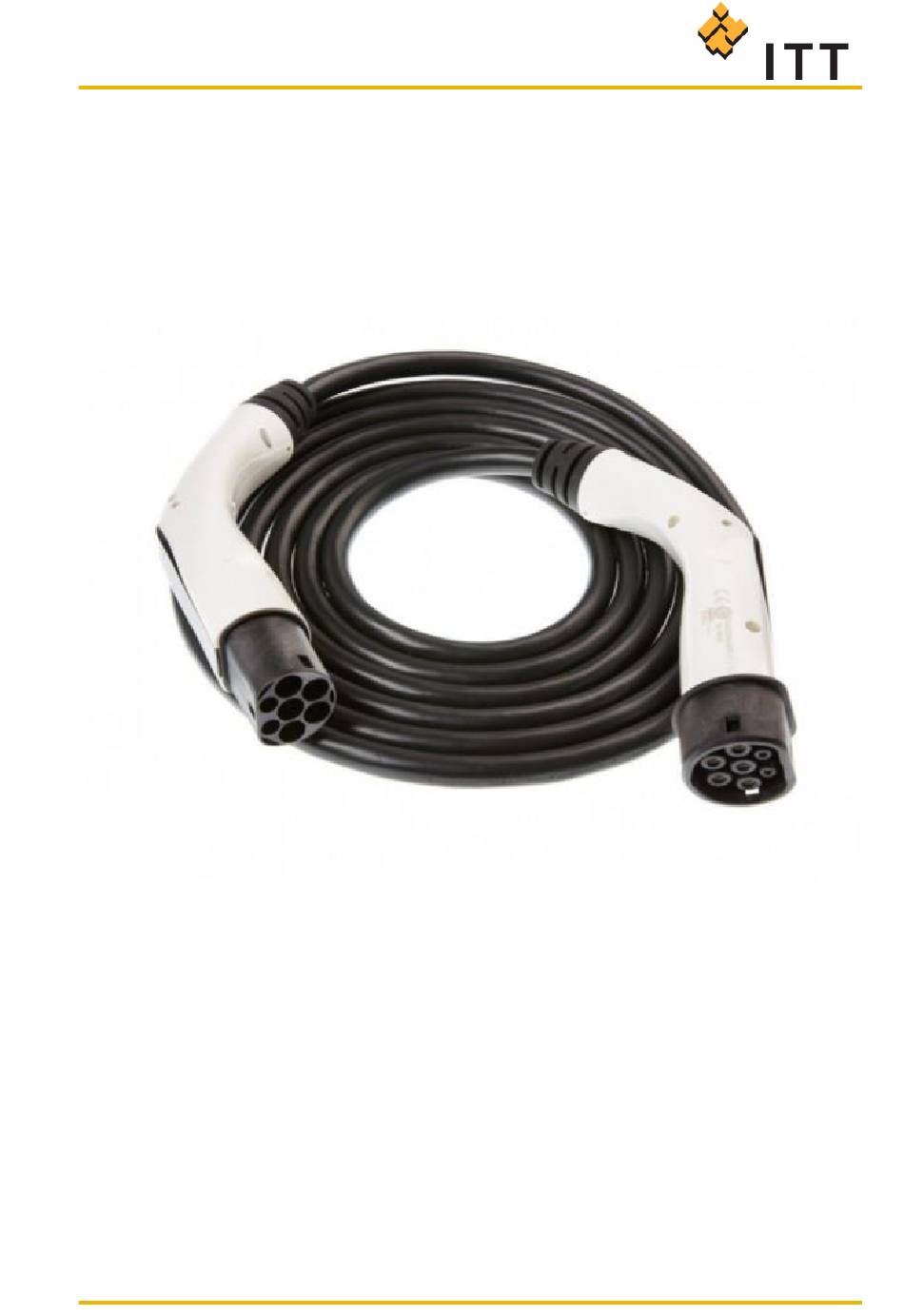

- Page 1 CONNECTION CABLE OPERATING INSTRUCTIONS PS-00097-CU CONNECTION CABLE MODE 3 CASE B; TYPE2 – TYPE2 AC - Electric Vehicle Charging Solution Operating Instruction Connection Cable; Rev. - Page 1 of 29...
-
Page 2: Imprint
CONNECTION CABLE IMPRINT ITT Cannon VEAM Italia S.r.l. Corso Europa 41/43 20045 Lainate (MI), Italy Phone: +39 02 938721 ittcannon.com 2023 © ITT Cannon All rights reserved INFORMATION! This publication is an integral part of the Technical Documentation for the “AC e-mobility Interconnect Solution”... -
Page 3: Revision Overview
CONNECTION CABLE REVISION OVERVIEW Revision Date Description Author New doc no. for PS-00055-CU 31.05.2023 F. Albrecht Revised and updated Table 1: Revision table Operating Instruction Connection Cable; Rev. - Page 3 of 29... -
Page 4: Table Of Contents
TABLE OF CONTENTS Imprint ......................2 Revision overview ..................3 Table of contents ................... 4 Declaration of Conformity ................5 Information about the document ..............6 Type designation .................... 7 Overview and description ................8 User Instruction ....................8 Charging Modes and description ..............9 Connector Dimensions (PLUG) ECCE &... -
Page 5: Declaration Of Conformity
The Tethered lead Charging Cable is in conformity with the relevant harmoniza- tion legislation. EU-DECLARATION OF CONFORMITY and UK-DECLARATION OF CONFORMITY are available on request and could be downloaded from ITT Cannon homepage: ittcannon.com/evc Operating Instruction Connection Cable; Rev. -... -
Page 6: Information About The Document
INFORMATION ABOUT THE DOCUMENT This document contains important information about transportation, assembly (function), installation, operation, and maintenance of the Connection Cable. General information, technical characteristics, certification and declaration of conformity of this product is descripted in the product specification. CAUTION! Non-adherence to the information contained in this document may re- sult in injury or property damage! Always observe and comply with the warning and safety no-... -
Page 7: Type Designation
TYPE DESIGNATION Connection Cable described herein connector system consisting of: Equipment Plug Vehicle Connector ECCE Type 2 (acc. to IEC 62196-3) - EJCV Type 1 (acc. to IEC 62196) ECCV Type 2 (acc. to IEC 62196) GBCV (acc. to GB/T 20234) GBCE (acc. -
Page 8: Overview And Description
OVERVIEW AND DESCRIPTION The Connection Cable consists of the following individual components which - within the overall scope of functioning - represent the interface between the charging infrastructure and the vehicle being charged: • Connector system Plug - ECCE Type 2 or GBCE •... -
Page 9: Charging Modes And Description
CHARGING MODES AND DESCRIPTION Charging mode 3B In charging mode 3B, a mobile AC charging cable is required (Connection Cable), which has a connector at both ends. One end, the ve- hicle charging plug, is inserted into the inlet of the vehicle. The other end of the charging cable, the infrastructure charging connector, is inserted into the charging socket of the charging station. -
Page 10: Connector Dimensions (Plug) Ecce & Gbce
CONNECTOR DIMENSIONS (PLUG) ECCE & GBCE ECCE Figure 3: ECCE (Plug) Connector GBCE Figure 4: GBCE (Plug) Connector Description ECCE GBCE Width (A) ~ 58 mm ~ 58 mm Length (B) ~ 243 mm ~ 243 mm Height (C) ~ 52 mm ~ 70 mm Weight (without cable) 0.5 kg... -
Page 11: Connector Dimensions (Connector) Ejcv & Eccv
CONNECTOR DIMENSIONS (CONNECTOR) EJCV & ECCV EJCV Figure 5: EJCV (Connector) Connector ECCV Figure 6: ECCV (Connector) Connector Description EJCV ECCV Width (A) ~ 58 mm ~ 70 mm Length (B) ~ 231 mm ~ 234 mm Height (C) ~ 68 mm ~ 63 mm Weight (without cable) 0.5 kg... -
Page 12: Connector Dimensions (Connector) Gbcv
CONNECTOR DIMENSIONS (CONNECT OR) GBCV GBCV Figure 7: GBCV (Connector) Connector Description GBCV J2CE Width (A) ~ 58 mm ~ 58 mm Length (B) ~ 232 mm ~ 231 mm Height (C) ~ 70 mm ~ 68 mm Weight (without cable) 0.5 kg 0.5 kg Table 5: Connector Dimensions for (Connector) GBCV and J2CE... -
Page 13: General Data Of Ecce (Plug) & Ejcv (Connector)
GENERAL DATA OF ECCE (PLUG) & EJCV (CONNECTOR) Description Value Applied standard IEC 62196-1 & 2 Charging mode Mode 2 & 3B (IEC 61851) Max. operating temperature +50 °C Min. operating temperature -30 °C Max. operating voltage 250 V-AC Rated current 20 A, 32 A Max. -
Page 14: General Data Of Ecce (Plug) & Eccv (Connector)
GENERAL DATA OF ECCE (PLUG) & ECCV (CONNECTOR) Description Value Applied standard IEC 62196-2 Charging mode Mode 2 & 3B (IEC 61851) Max. operating temperature +50 °C Min. operating temperature -30 °C 250 V-AC (Single phase) Max. operating voltage 480 V-AC (Three phase) Rated current 20 A, 32 A, 63A Max. -
Page 15: General Data Of Ecce (Plug) & Gbcv (Connector)
GENERAL DATA OF ECCE (PLUG) & GBCV (CONNECTOR) Description Value Applied standard IEC 62196-2 & GB-T 20234 Charging mode Mode 2 & 3B (IEC 61851) Max. operating temperature +50 °C Min. operating temperature -30 °C 250 V-AC (Single phase) Max. operating voltage 480 V-AC (Three phase) Rated current 10 A, 16 A, 32 A... -
Page 16: General Data Of Gbce (Plug) & Ejcv (Connector)
GENERAL DATA OF GBCE (PLUG) & EJCV (CONNECTOR) Description Value Applied standard IEC 62196-1 & GB-T 20234 Charging mode Mode 2 & 3B (IEC 61851) Max. operating temperature +50 °C Min. operating temperature -30 °C Max. operating voltage 250 V-AC (Single phase) Rated current 10 A, 16 A, 32 A Max. -
Page 17: General Data Of Gbce (Plug) & Eccv (Connector)
GENERAL DATA OF GBCE (PLUG) & ECCV (CONNECTOR) Description Value Applied standard IEC 62196-2 & GB-T 20234 Charging mode Mode 2 & 3B (IEC 61851) Max. operating temperature +50 °C Min. operating temperature -30 °C 250 V-AC (Single phase) Max. operating voltage 480 V-AC (Three phase) Rated current 10 A, 16 A, 32 A... -
Page 18: General Data Of Gbce (Plug) & Gbcv (Connector)
GENERAL DATA OF GBCE (PLUG) & GBCV (CONNECTOR) Description Value Applied standard GB-T 20234 Charging mode Mode 2 & 3B (IEC 61851) Max. operating temperature +50 °C Min. operating temperature -30 °C 250 V-AC (Single phase) Max. operating voltage 480 V-AC (Three phase) Rated current 10 A, 16 A, 32 A Max. -
Page 19: Connector Marking
CONNECTOR MARKING The type marking is located on the right side of the housing. Figure 14: Connector marking Item Designation Item Designation Symbol for EVSE side or Connector designation vehicle side Conformity marking (EU, UK) Current Rating, Voltage Rating, Operating frequency, Protection class Intertek Certification Mark Company name, Production Site Identification, Product date Year and... - Page 20 Page 20 of 29 Operating Instruction Connection Cable, Rev. -...
-
Page 21: Transportation And Storage
TRANSPORTATION AND STORAGE DELIVERY INFORMATION! Always observe the pictograms on the transport packaging displaying cargo handling information! The type of packaging may vary depending on the component, weight, and selected shipping method Only store the components in dry, enclosed rooms while ob- serving the pictograms on the packaging. -
Page 22: Transportation
TRANSPORTATION General information: • Always observe applicable local safety and accident prevention regula- tions. • Specify transportation routes in advance and remove possible obstruc- tions. • Keep unauthorized persons away from the transportation route and as- sembly or installation location. Secure affected areas against access by un- authorized persons. -
Page 23: Connector Operation
CONNECTOR OPERATION The 2-end Connection Cable is used to connect the electric vehicle and the charg- ing station. 1. The Vehicle Connector must be plugged into the charging inlet (vehicle) and the Equipment Plug into the charging outlet (station). 2. Ensure that connector and plug are completely engaged. The charging cable must not be stretched. - Page 24 DANGER! Danger of death due to electric shock! Injuries due to an electric shock and/or burns are possible and may cause immediate death. • Always check the Connection Cable and contacts for damage and contamination before use. • Never use a damaged Vehicle Connector, Equipment Plug, cable, vehicle inlet or charging station for charg- ing.
- Page 25 CAUTION! Misuse of the Connection Cable can lead to interruption of charging, disruption of service or even injuries: • Never use high force to plug and unplug the Vehicle Connector or Equipment Plug. • Don’t stress the charging connector with mechanical load like, pushing or pulling, lean against cable / con- nector during charging process.
-
Page 26: Transportation And Storage
DANGER! Danger of death due to electric shock! Modifications (of any kind) to components of the Connec- tion Cable are strictly forbidden! In this case, injuries due to an electric shock and/or burns are possible and may cause immediate death. Repair of the product is not possible. - Page 27 CAUTION! Insecure storage and transportation of the connection cable can lead to damages, or even injuries: • Store and Transport cable in a secure position, espe- cially during transport in a vehicle. Operating Instruction Connection Cable; Rev. - Page 27 of 29...
-
Page 28: Cleaning The Components
CLEANING THE COMPONENTS INFORMATION! Only clean the charging cable when it is not connected to the vehicle or the charging station. Use a dry cloth to clean outside of cable, Vehicle Connector, Equipment Plug and pin contacts. Never use abrasive cleaning agents, water jet or steam jet cleaners. - Page 29 2023 © ITT Cannon All rights reserved The “ITT Engineered Blocks“ symbol, “ITT” and “Cannon“ are registered trademarks of ITT INC. Specification and other data are based on information available at the time of printing, and are subject to change without notice.
