ITEM
ITEM
NO.

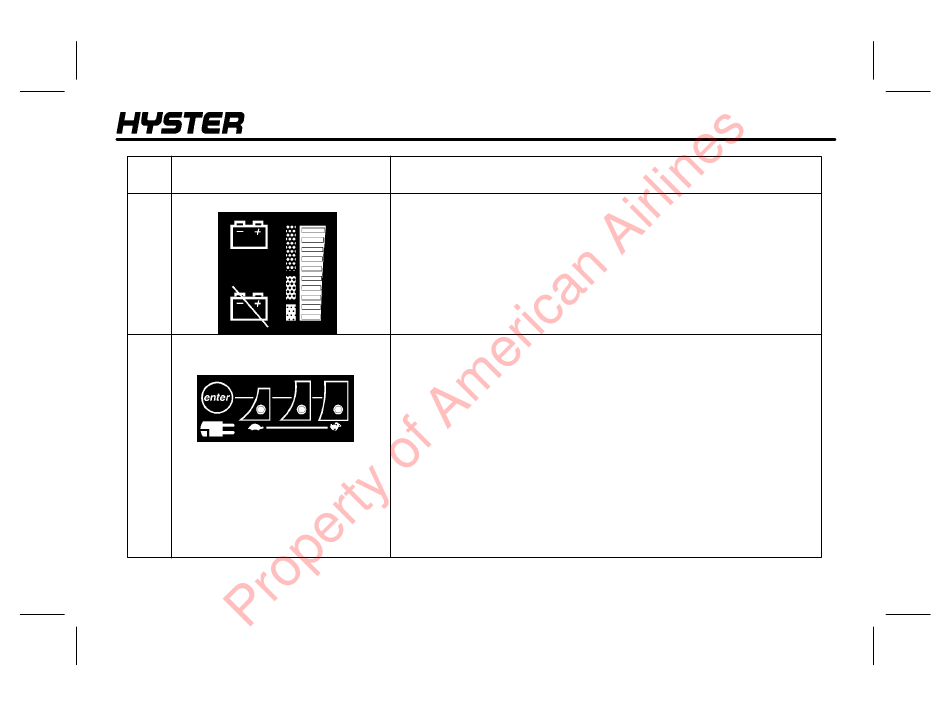

Battery Indicator
c
Drive Mode Display
d
NARROW AISLE
The Battery Indicator has a 10 bar multicolor LED (Light Emitting Diode)
to indicate battery charge status. The bars are green, yellow and red. As
battery power is used, the LED light bars turn OFF, first green, then yellow,
then red. The next to bottom red bar will flash indicating a nearly
discharged battery. At empty, the bottom red bar will alternately flash with
the LO-BATT indicator LED (a crossed battery symbol). The lift function
will be locked out at this point. Continued operation with a discharged
battery can damage the battery, motors or the contactors.
The Drive Mode Display allows the operator to select the traction motor
controller speed most suited to the application. Operation of the drive
mode switch will cause the green indicators and corresponding drive
modes to increase from Turtle to Mid to Rabbit. Turtle mode provides
slower acceleration and reduced top speed. It is also a valuable setting
when training new operators or on wet floors for better traction. Mid mode
reduces acceleration with full travel speed. Rabbit mode provides
maximum acceleration and travel speed. When the key switch is turned
to OFF, the selected drive mode is retained. When the battery is
disconnected the drive mode returns to the Rabbit mode. The rates of
acceleration and travel speeds are programmable and can be adjusted by
a qualified service technician. The drive mode can only be selected while
in neutral.
MODEL DESCRIPTION
FUNCTION
15
