WARNING: If any of the instruments or controls do not operate as described in this table,
report the problem immediately. DO NOT operate the lift truck until the problem is corrected.
ITEM
ITEM
NO.
Instrument Display
1
a
c
d
NARROW AISLE
TABLE 1. INSTRUMENTS AND CONTROLS

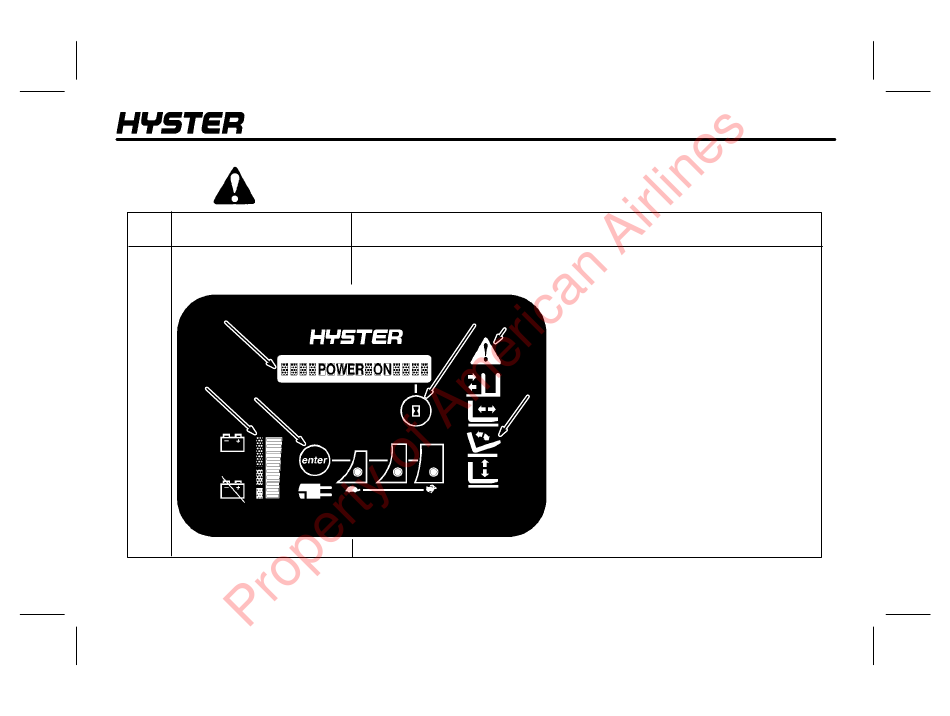

The instrument display is mounted on a bracket at eye level in the
operator's compartment and has the following features:
a. Message Center
b. Function Selection Lights
e
f
c. Battery Indicator
d. Drive Mode Feature
e. Hourmeter
f. Warning Lights
b
The instrument display is powered even
when the vehicle is not being operated.
When the battery is disconnected, the
dashboard contains an internal back-up
battery, capable of memory retention of
the battery indicator and hourmeter.
