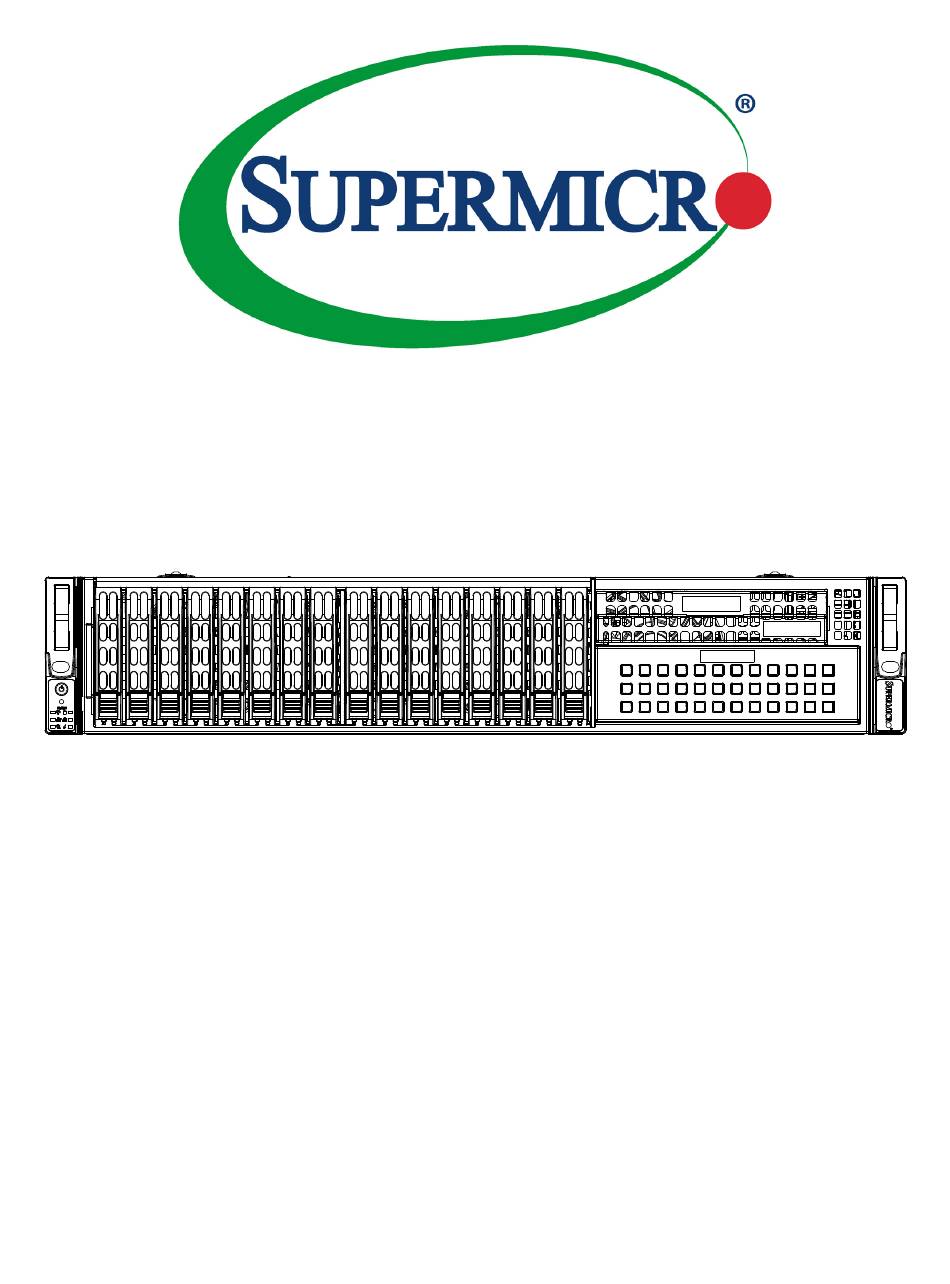

SC213X C
hASSiS
Models
SC213XAC-R1K05LP
USER'S MANUAL
Revision 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC213XAC-R1K05LP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Supermicro SC213XAC-R1K05LP

Summary of Contents for Supermicro SC213XAC-R1K05LP

  • Page 1 SC213X C hASSiS Models SC213XAC-R1K05LP USER’S MANUAL Revision 1.0...
  • Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
  • Page 3 This manual may be periodically updated without notice. This document lists compatible parts available when this document was published. Refer to the Supermicro web site for updates on supported parts and configurations. (http://www.supermicro.com). Notes Information on this and other chassis is available on the Supermicro website.

  • Page 4: Table Of Contents

    Chassis SC213X User's Manual Contents Chapter 1 Introduction 1.1 Overview ..........................7 1.2 Unpacking the System ......................7 1.3 Chassis Features .........................8 1.4 Chassis Views ........................9 Control Panel ........................9 Chassis Rear ........................10 Chassis Front ........................10 1.5 Where to get Replacement Components ................11 1.6 Returning Merchandise for Service ..................11 Chapter 2 Installation in a Rack 2.1 Preparing for Setup ......................12...
  • Page 5 Preface 3.3 Chassis Components ......................23 Storage Drives ........................23 Hard Drive Carrier Indicators ..................23 Installing Drives ......................24 DVD Drive (optional) ......................26 Expansion Cards .......................28 System Cooling .........................29 Installing the Air Shroud ....................30 Checking the Server Air Flow ..................31 Overheating ........................31 Power Supply ........................32 Power Supply LEDs .......................32 Installing the Motherboard....................34 Permanent and Optional Standoffs ................34...
  • Page 6 Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...

  • Page 7: Chapter 1 Introduction

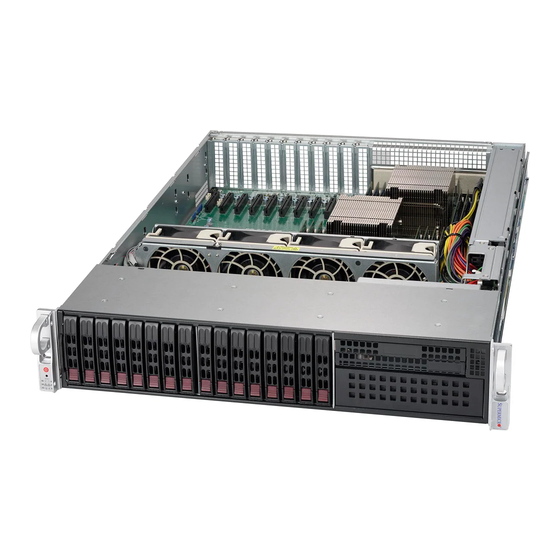

    Chapter 1 Introduction Supermicro's SC213 chassis provides up to 16 hot-swap 2.5" SAS/SATA hard drive bays, and one optional slim DVD drive in an efficient 2U form factor designed for the most commonly encountered applications. The chassis is also equipped with an 80Plus Titanium level redundant power supply for outstanding power savings, and specially designed optimized cooling.

  • Page 8: Chassis Features

    Chassis SC213X User's Manual 1.3 Chassis Features System Features Chassis SC213X Drives Bays Sixteen 2.5" SAS/SATA hot-swap drives One optional slim DVD drive Power Two redundant 800/1000 W modules, 80Plus Titanium level Cooling Four 8-cm hot-swap PWM 7k fans with enhanced cooling design Form Factor 2U rackmount;...

  • Page 9: Chassis Views

    Chapter 1: Introduction 1.4 Chassis Views Control Panel Power switches and status LEDs are located on the control panel on the front of the chassis. Figure 1-1. Control Panel Control Panel Features Item Features Description The main power switch applies or removes primary power from the power supply to Power button the server but maintains standby power.

  • Page 10: Chassis Rear

    Chassis SC213X User's Manual Chassis Front The illustration below shows the features included on the front of the chassis. Hard drive carriers display status lights. Input/Output Ports Sixteen 2.5"Drive Bays One slim DVD bay Control Panel Figure 1-2. Front View Chassis Rear The illustration below shows the features included on the rear of the chassis.

  • Page 11: Where To Get Replacement Components

    For faster service, RMA authorizations may be requested online (http://www.supermicro.com/ support/rma/). Whenever possible, repack the chassis in the original Supermicro carton, using the original packaging material. If these are no longer available, be sure to pack the chassis securely, using packaging material to surround the chassis so that it does not shift within the carton and become damaged during shipping.

  • Page 12: Chapter 2 Installation In A Rack

    Chassis SC213X User's Manual Chapter 2 Installation in a Rack This chapter provides advice and instructions for mounting your system in a rack. 2.1 Preparing for Setup The box in which the system was shipped should include the hardware needed to install it into the rack.

  • Page 13: Server Precautions

    Chapter 2 Installation in a Rack Server Precautions • Review the electrical and general safety precautions in appendix, "Standardized Safety Warnings" in this manual. • Determine the placement of each component in the rack before you install the rails. • Install the heaviest server components at the bottom of the rack first and then work your way up.

  • Page 14: Reliable Ground

    Chassis SC213X User's Manual Reliable Ground A reliable ground must be maintained at all times. To ensure this, the rack itself should be grounded. Particular attention should be given to power supply connections other than the direct connections to the branch circuit (i.e. the use of power strips, etc.). To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions to ensure that the system remains stable.

  • Page 15: Installing The Rails

    Chapter 2 Installation in a Rack 2.2 Installing the Rails There are a variety of rack units on the market, which may require a slightly different assembly procedure. Do not use a two post "telco" type rack. This rail set fits a rack between 26.5" and 36.4"...

  • Page 16: Releasing The Inner Rail

    Chassis SC213X User's Manual Releasing the Inner Rail To mount the rails onto the chassis, first release the inner rail from the outer rails. Each inner rail has a locking latch that prevents the server from coming completely out of the rack when when the chassis is pulled out for servicing.

  • Page 17: Installing The Inner Rails

    Chapter 2 Installation in a Rack Installing the Inner Rails Install the inner rails onto the chassis. 1. Identify the left and right inner rails. 2. Place the inner rail firmly against the side of the chassis, aligning the mushroom pins on the side of the chassis with the holes in the inner rail.

  • Page 18: Installing The Outer Rails Onto The Rack

    Chassis SC213X User's Manual Installing the Outer Rails onto the Rack Installing the Outer Rails 1. Press upward on the locking tab at the rear end of the middle rail. 2. Push the middle rail back into the outer rail. 3.

  • Page 19: Installing The Chassis Into A Rack

    Chapter 2 Installation in a Rack 2.3 Installing the Chassis into a Rack Once rails are attached to the chassis and the rack, you can install the server. 1. Pull the middle rail out of the front of the outer rail and make sure that the ball bearing shuttle is locked at the front of the middle rail.

  • Page 20: Removing The Chassis From The Rack

    Chassis SC213X User's Manual Removing the Chassis from the Rack To remove the chassis from the rack, use the previous procedure, "Releasing the Inner Rail." Caution! The loaded chassis is heavy. Mount or remove the chassis using sufficient personel and/or a lift. You can also lighten the chassis by removing the drives. Warning: Do not pick up the chassis with the front handles.

  • Page 21: Chapter 3 Maintenance And Component Installation

    Chapter 3: Maintenance and Component Installation Chapter 3 Maintenance and Component Installation This chapter provides instructions on installing and replacing main system components. To assure compatibility, only use components that match the specifications or part numbers given. Installation or replacement of most components require that power first be removed from the system.

  • Page 22: Removing The Chassis Cover

    Chassis SC213X User's Manual 3.2. Removing the Chassis Cover Removing the Chassis Cover 1. Press both release tabs at the same time to release the cover from the locked position. 2. Remove the screws on the side of the cover. 3.

  • Page 23: Chassis Components

    Chapter 3: Maintenance and Component Installation 3.3 Chassis Components The following sections describe procedures for installing or replacing chassis components. Storage Drives The chassis supports sixteen 2.5" hot-swap hard drives. Only SAS or enterprise SATA HDDs are recommended. The drives are mounted in drive carriers to simplify their installation and removal from the chassis.

  • Page 24: Installing Drives

    Chassis SC213X User's Manual Installing Drives Removing a Hard Drive Carrier from the Bay 1. Press the release button on the drive carrier. This extends the drive carrier handle. 2. Hold the handle to pull the carrier out of the chassis. 3.
  • Page 25 Chapter 3: Maintenance and Component Installation Figure 3-3. Removing the Dummy Drive Installing a Hard Drive 1. Insert a drive into the carrier with the PCB side facing down and the connector end toward the rear of the carrier. Align the mounting holes of both. Note that there are holes in the carrier marked "SAS"...

  • Page 26: Dvd Drive (Optional)

    Chassis SC213X User's Manual DVD Drive (optional) The chassis accepts an optional slim DVD drive. Installation requires a kit, MCP-220-81502- 0N, including DVD slides and a small PCB. Installing a DVD Drive 1. Power down the system as described in Section 3-1 and remove the chassis cover. 2.
  • Page 27 Chapter 3: Maintenance and Component Installation DVD Slide DVD PCB DVD Slide Figure 3-5. DVD Drive Installation 4. Attach the slides to each side of the DVD drive with screws. 5. Attach the PCB to the rear of the DVD drive by inserting the socket and securing the screw.

  • Page 28: Expansion Cards

    Chassis SC213X User's Manual Expansion Cards The chassis offers eleven slots for low-profile PCIe expansions cards. The motherboard must be installed before expansion cards. Installing an Expansion Card 1. Power down the system as described in Section 3-1 and remove the cover. 2.

  • Page 29: System Cooling

    Chapter 3: Maintenance and Component Installation System Cooling Four mid-chassis fans provide cooling. They can be replaced without powering down the system. Fan speed is controlled by a system temperature setting in IPMI. If a fan fails, the remaining fans will ramp up to full speed, and the system can continue to operate. Replace any failed fan at your earliest convenience with the same model.

  • Page 30: Installing The Air Shroud

    Chassis SC213X User's Manual Installing the Air Shroud If necessary, move any cables that interfere with the air shroud placement. The air shroud fits just behind the fans in the fan rack. Slide the air shroud into the grooves just behind the fan rack.

  • Page 31: Checking The Server Air Flow

    Chapter 3: Maintenance and Component Installation Checking the Server Air Flow • Make sure there are no objects to obstruct airflow in and out of the server. • Do not operate the server for long without drive carriers in the drive bays. •...

  • Page 32: Power Supply

    It should be replaced as soon as convenient. The power supply modules are hot-swappable, meaning they can be changed without powering down the system. New units can be ordered directly from Supermicro or authorized distributors. These power supplies are auto-switching capable. This feature enables them to automatically sense the input voltage and operate at a 100-120v or 180-240v.
  • Page 33 Chapter 3: Maintenance and Component Installation Figure 3-10. Replacing the Power Supply 3. Pull the module out using the handle. 4. Push the new power supply module into the power bay until it clicks. Replace with the same model. 5. Plug the AC power cord back into the module.

  • Page 34: Installing The Motherboard

    Chassis SC213X User's Manual Installing the Motherboard Review the documentation that came with your motherboard. Become familiar with component placement, requirements, precautions, and cable connections. The motherboard should come with an I/O shield, holding the input and output ports. Permanent and Optional Standoffs Standoffs prevent short circuits by creating space between the motherboard and the chassis surface.
  • Page 35 Chapter 3: Maintenance and Component Installation Figure 3-11. Installing the Motherboard...

  • Page 36: Replacing The Power Distributor Board

    Chassis SC213X User's Manual Replacing the Power Distributor Board The power distributor provides power supply redundancy and is pre-installed in the chassis. In the rare event that you have to replace the power distributor, follow the steps below. Changing the Power Distributor 1.

  • Page 37: Appendix A Power Supply Specifications

    Appendix A: Power Specifications Appendix A Power Supply Specifications This appendix lists power supply specifications for your chassis system. 800/1000 W MFR Part # PWS-1K05A-1R 100-127Vac / 9-7.5A / 50-60Hz AC Input 200-240Vac / 6-5A / 50-60Hz +12 volts: Max: 66.7A / Min: 0A (100-127Vac) Max: 83A / Min: 0A (200-240Vac) DC Output +5Vsb : Max: 4A / Min: 0A...

  • Page 38: Appendix B Standardized Warning Statements For Ac Systems

    Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components. Read this appendix in its entirety before installing or configuring components in the Supermicro chassis. These warnings may also be found on our website at http://www.supermicro.com/about/...
  • Page 39 Appendix B: Standardized Warning Statements Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.
  • Page 40 Chassis SC213X User's Manual ‫جسذٌة‬ ‫اصابة‬ ً‫تتسبب ف‬ ‫حالة ٌوكي أى‬ ً‫اًك ف‬ ‫خطز‬ ًٌ‫ٌع‬ ‫هذا الزهز‬ !‫تحذٌز‬ ‫الذوائز‬ ‫بالوخاطز الٌاجوة عي‬ ‫ي على علن‬ ، ‫ك‬ ‫هعذات‬ ‫تعول على أي‬ ‫قبل أى‬ ‫الكهزبائٍة‬ ‫حىادث‬ ‫أي‬ ‫وقىع‬ ‫وٌع‬ ‫ل‬ ‫الىقائٍة‬ ‫سات‬...
  • Page 41 Appendix B: Standardized Warning Statements Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación. Attention Avant de brancher le système sur la source d'alimentation, consulter les directives d'installation. ‫מתח‬...
  • Page 42 Chassis SC213X User's Manual Warnung Dieses Produkt ist darauf angewiesen, dass im Gebäude ein Kurzschluss- bzw. Überstromschutz installiert ist. Stellen Sie sicher, dass der Nennwert der Schutzvorrichtung nicht mehr als: 250 V, 20 A beträgt. ¡Advertencia! Este equipo utiliza el sistema de protección contra cortocircuitos (o sobrecorrientes) del edificio.
  • Page 43 Appendix B: Standardized Warning Statements Power Disconnection Warning Warning! The system must be disconnected from all sources of power and the power cord removed from the power supply module(s) before accessing the chassis interior to install or remove system components. 電源切断の警告...
  • Page 44 Chassis SC213X User's Manual ‫امداد‬ ‫وحدة‬ ‫من‬ ‫سهك انكهرباء‬ ‫وإزانت‬ ‫انطاقت‬ ‫مصادر‬ ‫من جميع‬ ‫اننظاو‬ ‫يجب فصم‬ ‫قبم‬ ‫انطاقت‬ ‫الجهاز‬ ‫مكىناث‬ ‫نتثبيج أو إزانت‬ ‫ههيكم‬ ‫ن‬ ‫انمناطق انداخهيت‬ ‫انىصىل إنى‬ 경고! 시스템에 부품들을 장착하거나 제거하기 위해서는 섀시 내부에 접근하기 전에 반드시 전원 공급장치로부터...
  • Page 45 Appendix B: Standardized Warning Statements Attention Il est vivement recommandé de confier l'installation, le remplacement et la maintenance de ces équipements à des personnels qualifiés et expérimentés. !‫אזהרה‬ .‫הציוד או לתת שירות עבור הציוד‬ ‫אי להתקין, להחליף את‬ ‫צוות מוסמך בלבד רש‬ ‫هذا...
  • Page 46 Chassis SC213X User's Manual Warnung Diese Einheit ist zur Installation in Bereichen mit beschränktem Zutritt vorgesehen. Der Zutritt zu derartigen Bereichen ist nur mit einem Spezialwerkzeug, Schloss und Schlüssel oder einer sonstigen Sicherheitsvorkehrung möglich. ¡Advertencia! Esta unidad ha sido diseñada para instalación en áreas de acceso restringido. Sólo puede obtenerse acceso a una de estas áreas mediante la utilización de una herramienta especial, cerradura con llave u otro medio de seguridad.
  • Page 47 Appendix B: Standardized Warning Statements Battery Handling Warning! There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions 電池の取り扱い...
  • Page 48 Chassis SC213X User's Manual ‫فعليل‬ ‫بطريقة غير صحيحة‬ ‫البطارية‬ ‫انفجار في حالة اسحبذال‬ ‫من‬ ‫هناك خطر‬ ‫اسحبذال البطارية‬ ‫به الشرمة المصنعة‬ ‫أوصث‬ ‫مما‬ ‫أو ما يعادلها‬ ‫بنفس النىع‬ ‫فقط‬ ‫حعليمات الشرمة الصانعة‬ ‫المسحعملة وفقا ل‬ ‫جخلص من البطاريات‬ 경고! 배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와 동일하거나 제 조사에서...
  • Page 49 Appendix B: Standardized Warning Statements ¡Advertencia! Puede que esta unidad tenga más de una conexión para fuentes de alimentación. Para cortar por completo el suministro de energía, deben desconectarse todas las conexiones. Attention Cette unité peut avoir plus d'une connexion d'alimentation. Pour supprimer toute tension et tout courant électrique de l'unité, toutes les connexions d'alimentation doivent être débranchées.
  • Page 50 Chassis SC213X User's Manual Backplane Voltage Warning! Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing. バックプレーンの電圧 システムの稼働中は危険な電圧または電力が、 バックプレーン上にかかっています。 修理する際には注意く ださい。 警告 当系统正在进行时，背板上有很危险的电压或能量，进行维修时务必小心。 警告 當系統正在進行時，背板上有危險的電壓或能量，進行維修時務必小心。 Warnung Wenn das System in Betrieb ist, treten auf der Rückwandplatine gefährliche Spannungen oder Energien auf.
  • Page 51 Appendix B: Standardized Warning Statements ‫اللىحة‬ ‫أوالطاقة المىجىدة على‬ ‫التيار الكهزبائي‬ ‫مه‬ ‫خطز‬ ‫هناك‬ ‫هذا الجهاس‬ ‫خدمة‬ ‫كه حذرا عند‬ ‫يعمل‬ ‫النظام‬ ‫عندما يكىن‬ 경고! 시스템이 동작 중일 때 후면판 (Backplane)에는 위험한 전압이나 에너지가 발생 합니다. 서비스 작업 시 주의하십시오. Waarschuwing Een gevaarlijke spanning of energie is aanwezig op de backplane wanneer het systeem in gebruik is.
  • Page 52 Chassis SC213X User's Manual ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ ‫הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫התקנת‬ ‫المتعلقة‬ ‫المحلية والىطىية‬ ‫قىاويه‬ ‫يجب أن يمتثل لل‬ ‫الكهربائية‬ ‫تركيب المعدات‬ ‫بالكهرباء‬ 경고! 현 지역 및 국가의 전기 규정에 따라 장비를 설치해야 합니다. Waarschuwing Bij installatie van de apparatuur moet worden voldaan aan de lokale en nationale elektriciteitsvoorschriften.
  • Page 53 Appendix B: Standardized Warning Statements Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent. ‫סילוק המוצר‬ !‫אזהרה‬ .‫חוקי המדינה‬ ‫סילוק סופי של מוצר זה חייב להיות בהתאם להנחיות ו‬ ‫القىانين...
  • Page 54 Chassis SC213X User's Manual Warnung Gefährlich Bewegende Teile. Von den bewegenden Lüfterblätter fern halten. Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt.
  • Page 55 Brand entstehen. Elektrische Geräte und Material Safety Law verbietet die Verwendung von UL-oder CSA-zertifizierte Kabel, UL oder CSA auf der Code für alle anderen elektrischen Geräte als Produkte von Supermicro nur bezeichnet gezeigt haben. ¡Advertencia! Al instalar el producto, utilice los cables de conexión previstos o designados, los cables y adaptadores de CA.
  • Page 56 Het gebruik van andere kabels en adapters kan leiden tot een storing of een brand. Elektrisch apparaat en veiligheidsinformatiebladen wet verbiedt het gebruik van UL of CSA gecertificeerde kabels die UL of CSA die op de code voor andere elektrische apparaten dan de producten die door Supermicro alleen.
  • Page 57 Appendix B: Standardized Warning Statements Notes...

  • Page 58: Appendix C Backplane Specifications

    C-2 Version Information This manual reflects BPN-SAS3-213A, Revision 1.00, the most current release available at the time of publication. Refer to the Supermicro Web site at www.supermicro.com for the latest updates, compatible parts and supported configurations. All images and layouts shown in this guide are based upon the latest PCB revision available...
  • Page 59 Appendix C: Backplane Specifications C-3 Connectors, Jumpers, and Status Indicators Rear Connectors The following connectors are on the side of the backplane that faces the rear of the chassis. They are marked by silkscreen labels. ATMEL#2 RESET UPGRADE #2 UPGRADE #1 ATMEL#1 RESET 1-2:RESET 1-2:RESET...
  • Page 60 Chassis SC213X User's Manual Rear Connector and Pin Definitions 1. Backplane Main Power Connectors Backplane The 4-pin connectors, designated JP3, JP4, Main Power 4-Pin Connector JP5 and JP6 provide power to the backplane. Pin# Definition See the table on the right for pin definitions. +12V 2, 3 Ground...
  • Page 61 Appendix C: Backplane Specifications Jumper Locations and Pin Definitions ATMEL#2 RESET UPGRADE #2 ATMEL#1 RESET UPGRADE #1 1-2:RESET 1-2:RESET 2-3:NO RESET 2-3:NO RESET BAR CODE C109 C110 C142 C111 C141 Figure C-2. Rear Jumpers Jumper Settings Jumper Description Chip reset, for manufacturing use only. Pins 1-2: Reset, red LED is always on Pins 2-3: No reset, LED operates normally (default) Chip reset, for manufacturing use only.
  • Page 62 Chassis SC213X User's Manual Front Connectors and LED Indicators The following connectors are on the side of the backplane that faces the front of the chassis. They are identified by silkscreen labels. FAIL#15 ACT#15 LED13 LED15 LED21 LED23 FAIL#12 LED29 FAIL#13 FAIL#5 ACT#5...
