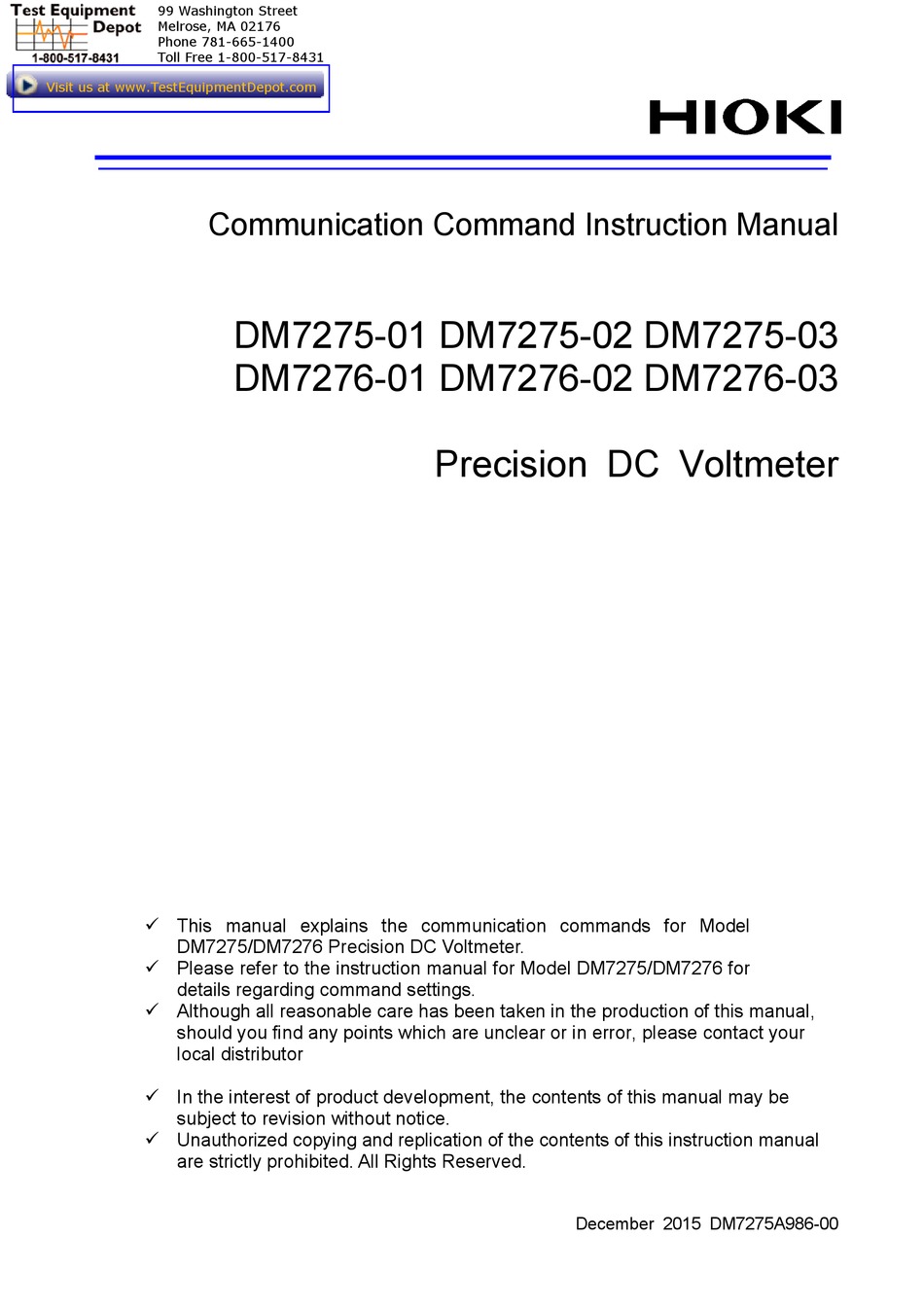

Communication Command Instruction Manual
 This manual explains the communication commands for Model
DM7275/DM7276 Precision DC Voltmeter.
 Please refer to the instruction manual for Model DM7275/DM7276 for
details regarding command settings.
 Although all reasonable care has been taken in the production of this manual,
should you find any points which are unclear or in error, please contact your
local distributor
 In the interest of product development, the contents of this manual may be
subject to revision without notice.
 Unauthorized copying and replication of the contents of this instruction manual
are strictly prohibited. All Rights Reserved.
DM7275-01 DM7275-02 DM7275-03
DM7276-01 DM7276-02 DM7276-03
Precision DC Voltmeter
December 2015 DM7275A986-00
