Summary of Contents for TW Audio VERA20

  • Page 1 VERA20 Operation manual...

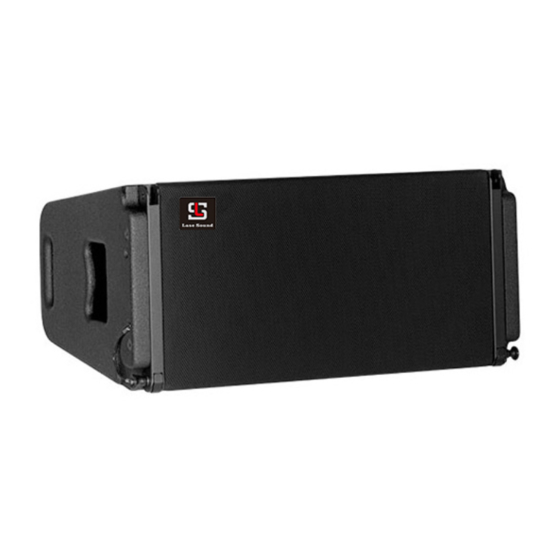

  • Page 2 The VERA20 loudspeaker is equipped with two 10” chassis for the low-mid frequencies and a waveguide with a 1.4” mid-high compression driver. Compared with typical double 8” systems, the VERA20‘s two 10” drivers are capable of reproducing up to 6 dB more output in the low-mid frequency range with lower distortion.
  • Page 3 This symbol in combination with the signal word “Tip” identifies additional information or notes that will simplify working with TW AUDiO products on the basis of practical experience. Notes on the products Before using the device, carefully read the operating manual and keep it with the VERA20 Read manual before use! loudspeaker.

  • Page 4: Table Of Contents

    3. Technical specifications ................9 3.1. Data Sheet ................... 9 3.2. Connection Diagram ................9 4. Setup ......................10 4.1. VERA20 Setup ..................10 4.2. Rigging VERA20 ................. 10 4.3. Exchanging the horn flanges ............. 11 4.4. Operation ................... 11 4.5.

  • Page 5: Safety | Intended Use

    Please adhere to the following safety instructions to avoid risks when operating loudspeakers. The VERA20 loudspeaker was developed for professional use in sound systems. The loudspeaker may only be used by trained and qualified personnel. Note the operating modes described in this operating manual. Other uses are not permissible.
  • Page 6 Note that TW AUDiO does not provide a warranty for damage that can be attributed to this type of overload and therefore cannot be held liable for any secondary damage.

  • Page 7: Overview

    5. Locking pins (2 pieces) 6. Carrying handles (left and right) 7. 10" cone driver 8. Horn flanges 9. Waveguide with 1.4" compression driver 10. Type label 11. VERA20 rear rigging 12. Connection panel with one SpeakON socket each, top and bottom ®...

  • Page 8: Variants - Horn Flanges Horizontal Coverage 80° / 120

    Operation manual VERA20 2.2. Variants – Horn flanges horizontal coverage 80° / 120° The VERA20 loudspeaker can optionally be equipped with 80° or 120° horn flanges. The angle specification refers to horizontal coverage. Check the rear rigging to identify the VERA20 variant.

  • Page 9: Technical Specifications

    Operation manual VERA20 Technical specifications 3.1. Data Sheet Variant VERA20-80 VERA20-120 Drivers 2 x 10“ LF / 1 x 1.4“ HF Frequency response 67 to 18000 Hz Power handling, 1000  W / 2000 W program / Peak Impedance 8  Ω...

  • Page 10: Setup

    (see Figure 2.1 - Position 4) and the rear rigging (see Figure 2.1 – Position 11). The rear rigging is an integral part of the VERA20 loudspeaker, and its components can be unfolded or moved.

  • Page 11: Exchanging The Horn Flanges

    To do so, proceed as follows. 1. Place the VERA20 loudspeaker on its back, with the speaker grille facing up. The rear rigging lever must be folded inward. Make sure to place the speaker on a clean, non- slippery surface.

  • Page 12: Connecting Cables

    The pin connections of the VERA20 loudspeaker can be found in section 3.2 (“Wiring diagram”) on page 9. The two connectors on the back of the VERA20 loudspeaker make it possible to connect several loudspeaker units in parallel. Please note that parallel connections will decrease the total impedance of your loudspeaker configuration.

  • Page 13: Transport And Storage

    Operation manual VERA20 Transport and Storage Due to the VERA20 loudspeaker weighing over 20 kg [44,09 lbs.], two persons are required to handle and transport the unit. To enable a single person to transport up to four VERA20 loudspeakers, TW AUDiO recommends using the VERA DLV20 dolly.

  • Page 14: Ec Declaration Of Conformity

    Operation manual VERA20 EC Declaration of Conformity We hereby declare that the below-referenced components by virtue of their design and construction, and in the configuration placed on the market by us, satisfy the safety and health requirements of the applicable EC directives. This declaration becomes invalid in case of modifications that have not been approved by us.

  • Page 15: Disposal

    It is prohibited to dispose of used electrical equipment with household refuse. All TW AUDiO GmbH products are so-called B2B products. This means that they are sold by a commercial business to a commercial business. TW AUDiO products that bear the trash can symbol shown here may only be disposed of by TW AUDiO.
  • Page 16 Operation manual VERA20 TW AUDiO GmbH Osterholzallee 140-1 71636 Ludwigsburg, Germany Germany Phone: + 49 (0) 71 41-48 89 89 0 Fax: + 49 (0) 71 41-48 89 89 99 E-Mail: info@twaudio.de WWW: www.twaudio.de...
