Quick Start Guide: LPC435x-Xplorer++

3.0 LPC435x-Xplorer++ verification

NGX's evaluation platforms ship with a factory-programmed test firmware that verifies all the on-board
peripherals. It is highly recommended that you verify the board, before you start programming. Also this
exercise helps you get acclimatized with the board quickly.
To run the tests you will need the following:
 LPC435x-Xplorer++
 Power: USB cable or external power supply (Alternatively the LPC435x-Xplorer++ has a 5V in
pin available for powering through external power source)
 PC: With Windows7 or XP (32-bit or 64-bit)
 One USB AM to Micro B cable
 Micro SD card
 2-GB USB pen drive
 Audio-out (Auxiliary) cable (3.5mm diameter connector)

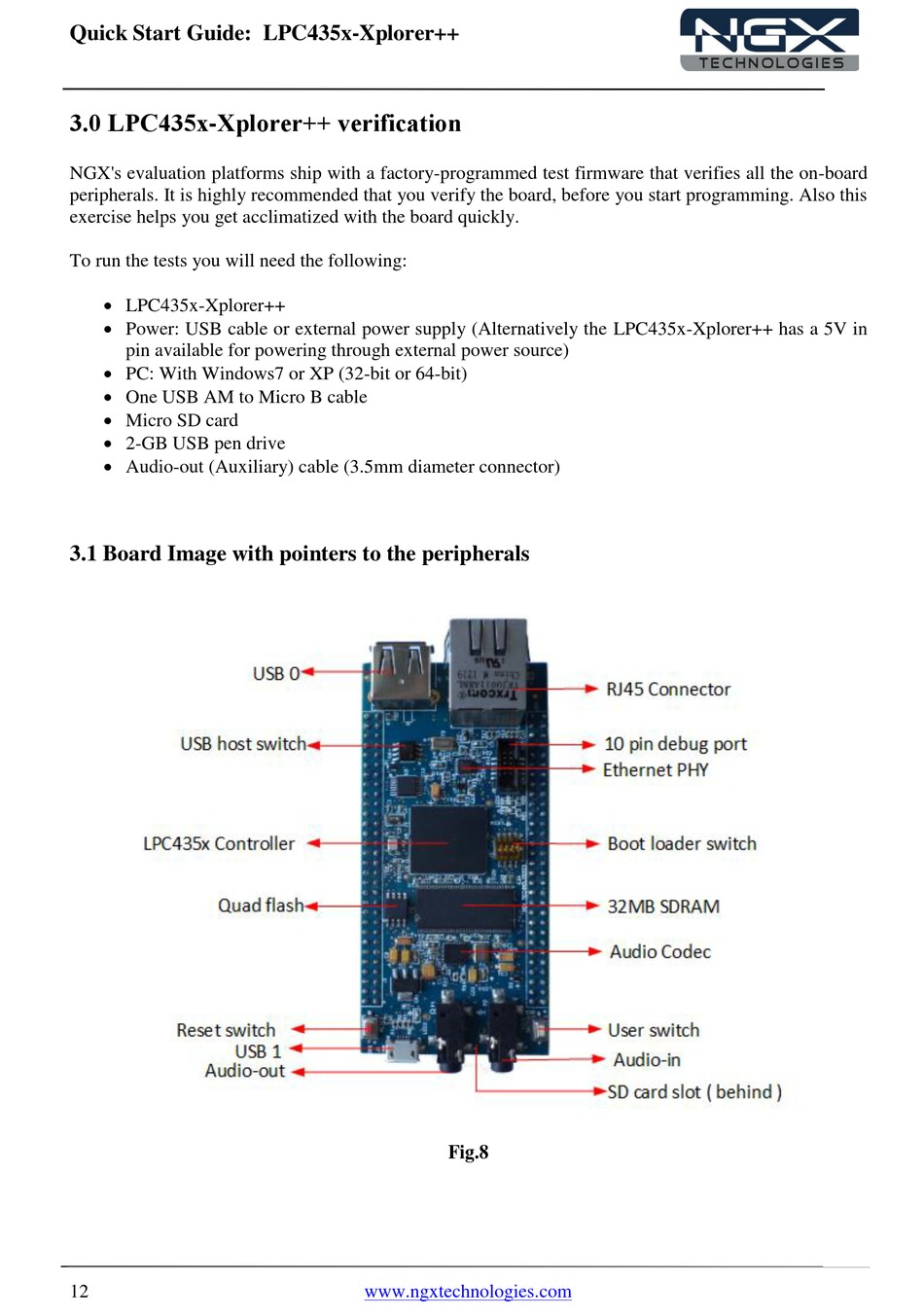

3.1 Board Image with pointers to the peripherals

12
Fig.8
