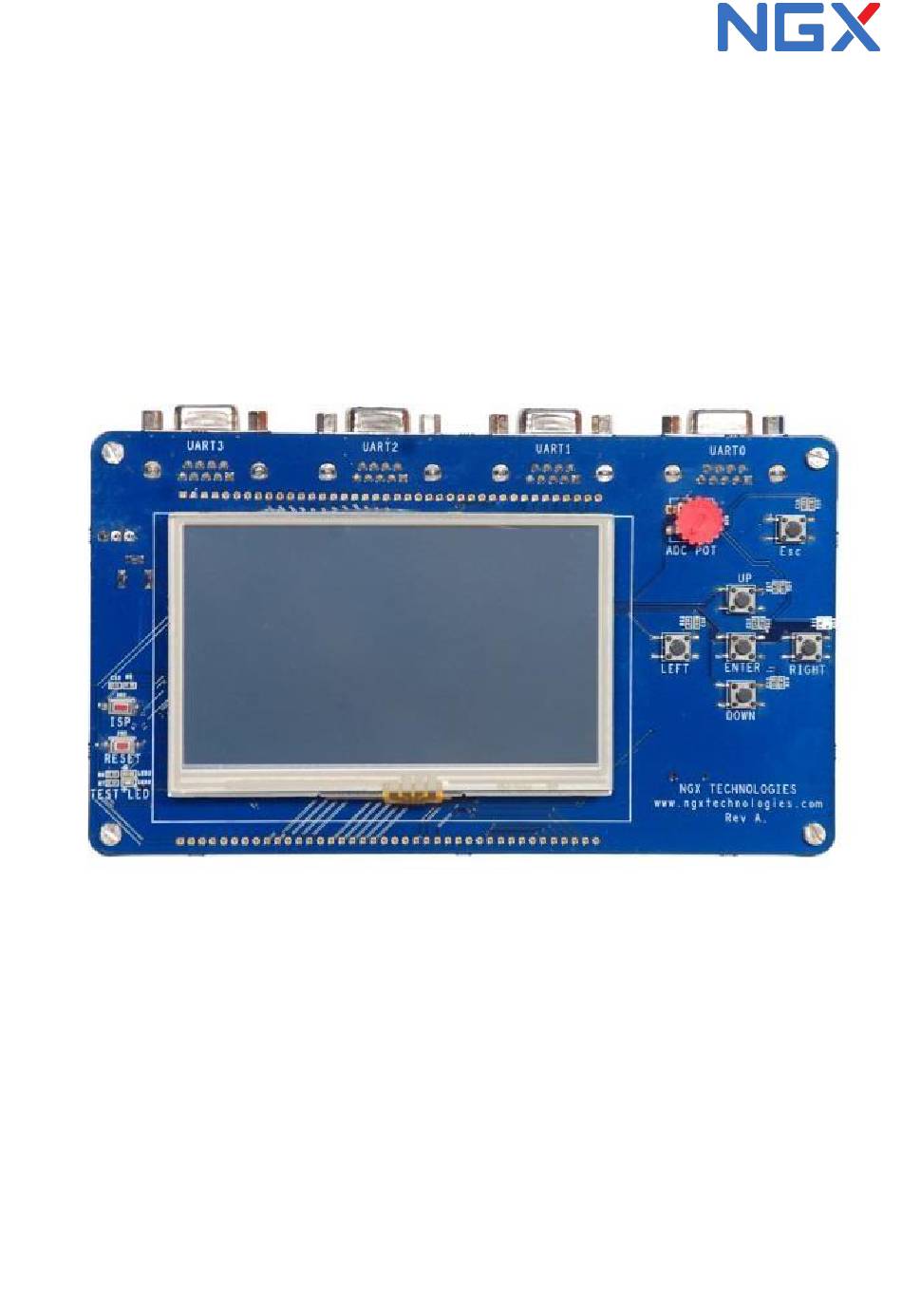

- Page 1 User Manual: LPC435x/LPC185x-Xplorer++ with BaseBoard LPC435x/LPC185x-Xplorer++ with BaseBoard Page | 1...
- Page 2 User Manual: LPC435x/LPC185x-Xplorer++ with BaseBoard About NGX Technologies NGX Technologies is a premier supplier of development tools for the ARM7, ARM Cortex M0, M3 and M4 series of microcontrollers. NGX provides innovative and cost effective design solutions for embedded systems. We specialize in ARM MCU portfolio, which includes ARM7, Cortex-M0, M3 & M4 microcontrollers.
-
Page 3: Table Of Contents
KEYPAD..............................9 RTC BATTERY............................ 11 7.0 LPC435x/LPC185x-Xplorer++ Programming ..................11 7.1 Programming options ........................11 7.1.1 Programming LPC435x/LPC185x-Xplorer++ using Coflash and ColinkEx ......11 8.0 Schematic & Board Layout ......................... 14 8.1 Schematic ............................14 8.2 Board layout ............................ 14 9.0 Change History............................ -
Page 4: Introduction
User Manual: LPC435x/LPC185x-Xplorer++ with BaseBoard 1.0 Introduction BaseBoard is a new addition to the BlueBoard line from NGX Technologies. This board is intended to extend the functionality of the LPC435x/LPC185x-Xplorer++ board. BaseBoard can be used to extend the features of the LPC435x/LPC185x-Xplorer++ by providing connectors and interface to various peripherals of the board and provide power to the peripheral interface. -
Page 5: Software
Test Binaries of LPC435x/LPC185x-Xplorer++ board 5.0 Setup Mounting the LPC435x/LPC185x-Xplorer++ Board The LPC435x/LPC185x-Xplorer++ board should be mounted on the BaseBoard with a particular alignment. Note: Improper mounting of the Xplorer++ board on BaseBoard may damage the Xplorer++ board and / the BaseBoard. -
Page 6: Validating The Baseboard
TEST_LEDs Blinky – This blinks the Test LEDs LED2 and LED3 on the BaseBoard. LCD – Reset the board and “NGX Technologies” is displayed on the LCD screen as shown in the following image. Touch on crosshair to verify LCD touch. - Page 7 User Manual: LPC435x/LPC185x-Xplorer++ with BaseBoard Parity: None Stop bits: 1 Flow Control: None A ‘Connect To’ window opens where you have to select the COM port. In this example it is COM1. Click OK. A ‘COM1 Properties’ window appears. Set the values as shown below. Click OK.
- Page 8 User Manual: LPC435x/LPC185x-Xplorer++ with BaseBoard Next a ‘Hyper Terminal’ window opens as shown below Make sure the board is powered and the serial port is connected to the board. The key that are typed on the keyboard are echoed back to the hyper terminal.
-
Page 9: Adc
Open the hyper terminal as shown in the below image. To test the ADC open the hyper terminal with settings 9600 bps 8N1, i.e. ADC value display via USB Virtual Com port, for installing and opening LPC185x/LPC435x USB VCom port please refer the LPC185x/LPC435x-Xplorer++... - Page 10 User Manual: LPC435x/LPC185x-Xplorer++ with BaseBoard To test keypad, press each key on the keypad. Page | 10...
-
Page 11: Rtc Battery
7.1.1 Programming LPC435x/LPC185x-Xplorer++ using Coflash and ColinkEx Connect one end of ‘USB AM to Micro B’ cable to LPC435x/LPC185x-Xplorer++ board and other end to computer and connect one end of ‘USB AM to Mini B’ to ColinkEx and other end to computer as shown in the following image. - Page 12 User Manual: LPC435x/LPC185x-Xplorer++ with BaseBoard Step 1: Open Coflash, click on config, select controller and set all the fields as shown in the following image. NOTE: To get the device LPC18xx-LPC43xx in the device list follows the steps given in this...
- Page 13 User Manual: LPC435x/LPC185x-Xplorer++ with BaseBoard Step 2: Click on Command, select the bin file you want to download as shown in the following image Step 3: Click on Program to load the bin file to the target board as shown in the following image...
-
Page 14: Schematic & Board Layout
User Manual: LPC435x/LPC185x-Xplorer++ with BaseBoard Once the programming is completed, reset the board to run the code. 8.0 Schematic & Board Layout 8.1 Schematic This manual will be periodically updated, please check our website for the latest documents. The Board schematic and sample code are available after the product has been registered on our website. - Page 15 User Manual: LPC435x/LPC185x-Xplorer++ with BaseBoard LPC435x/LPC185x-Xplorer++ Page | 15...
-
Page 16: Change History
User Manual: LPC435x/LPC185x-Xplorer++ with BaseBoard 9.0 Change History 9.1 Change History Changes Date (dd/mm/yy) Initial release of the manual 26/04/2018 Vivek Aggarwal Page | 16... - Page 17 DEMONSTRATION, and EDUCATION OR EVALUATION PURPOSES ONLY and is not considered by NGX Technologies Pvt. Ltd to be a finished end-product fit for general consumer use. Persons handling the product(s) must have electronics training and observe good engineering practice standards. As such,...
- Page 18 NGX Technologies reserves the right to make changes to information published in this document, at any time and without notice, including without limitation specifications and product descriptions. This document replaces and supersedes all information supplied prior to the publication hereof.
